Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel, Aluminium , Steel Carbon | Name: | Micro Speaker Grille 4.0mm Thickness Perforated Aluminum Plate |
|---|---|---|---|
| Thickness: | 0.2-4.0mm | Hole Size: | 0.8-18mm |
| Hole Shape: | Square/round/hexagonal/slotted Hole | Brand Name: | Yuanhai |
| Application: | Chemial Industry,building Decorative,food Industry | Packing: | Pallet |
| Certification: | ISO 9001 | Sample: | For Free |
| Highlight: | speaker grille perforated aluminum plate,micro perforated aluminum plate,4.0mm thickness perforated aluminum plate |
||

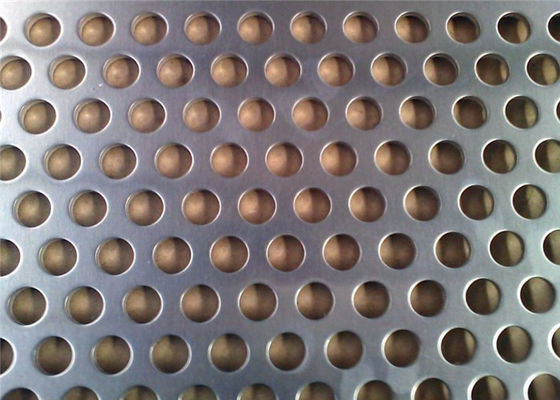

Micro Perforated Metal Aluminum Sheets Perforated Metal Mesh Speaker Grille
Product Description
Materials: Low carbon steel plate, Stainless steel plate, Aluminium cobon plate, Alloy plate, Galvanized steel plate,Tinplate, Inconel , Titanium,Nickl,Copper,etc.
Hole shape: Long hole, square hole, round hole, hexagonal hole, scale hole, stretching and other special-shaped hole
Hole styles: circular hole, hexagonal hole, fish scale hole, etc.Production can be made in different material, style or hole diameter.
Product Specification
| The common sizes of Yuanhai Perforated Sheet | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Product Application
Perforated Metal Mesh used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
