Product Details:
Payment & Shipping Terms:
|
| Process: | Perforated | Thickness: | 0.2-4.0mm |
|---|---|---|---|
| Hole Size: | 0.8-18mm | Hole Shape: | Square/round/hexagonal/slotted Hole |
| Application: | Chemial Industry,building Decorative,food Industry | Packing: | Pallet |
| Certification: | ISO 9001 | Sample: | For Free |
| Highlight: | q235 perforated wire mesh,round holes perforated wire mesh,1x4ft perforated wire mesh |
||

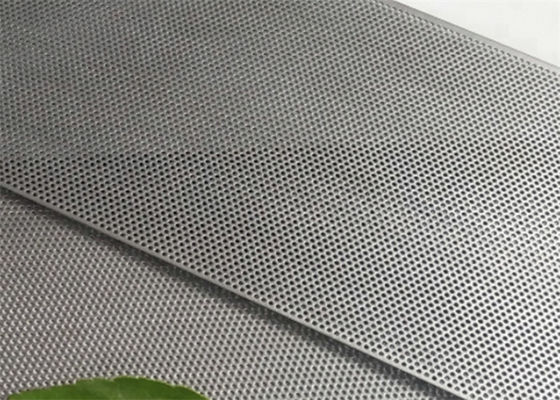

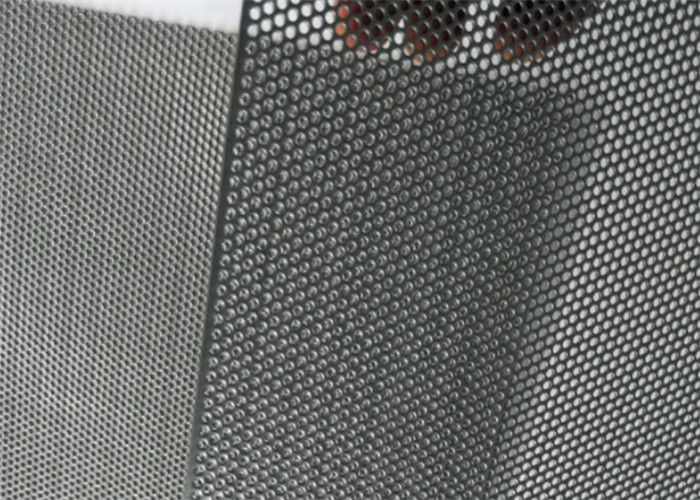

Decorative Mild Steel Metal Sheet Perforated Mesh With Round Holes Q235
Product Description
|
Products name
|
Decorative Mild Steel Metal Sheet Perforated Mesh With Round Holes Q235 | |||
|
Material
|
Galvanized Steel, Hot Rolled Steel, Cold Rolled Steel
|
|||
|
Surface treatment
|
perforated
|
|||
|
Pattern
|
round, oval, square, triangle, customized
|
|||
|
Workability
|
Easy to Weld, Cut, and Form with proper equipment
|
|||
|
Mechanical Properties
|
Magnetic, Tensile = 50K +/-, Yield = 35K +/-
|
|||
|
How is it Measured?
|
thickness X hole diameter X spacing
|
|||
|
Available Stock Sizes
|
1ft x 4ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, or cut to Size
|
|||
|
Packing
|
Standard seaworthy package or according to customers' requirements.
|
|||
|
Application
|
security, sifting, machinery guards, enclosures, sign panels,
|
|||
|
Payment
|
30% despoit in advance,70% after recepit of B/L copy.100% L/C is available.
|
|||
|
Remarks: sizes can be customized according to customers’ requirement.
|
||||
Product Specification
| The common sizes of Yuanhai Perforated Sheet | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Product Application
1.Aerospace: nacelles, fuel filters, air filters.
2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors.
3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
Round Hole Advantages
Why are perforated metal round hole patterns chosen more often than square or slotted holes? Because they offer the best combination of ease of manufacturing, low maintenance, and affordability. You also get the broadest selection of gauges, diameters, sheet size options and material choices, making it easier to get the ideal product for your needs. Round hole perforated metal also lasts longer than the other types, making it the most cost-effective alternative in the long run.
Production Show
