Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel, Aluminium , Steel Carbon | Process: | Perforated |
|---|---|---|---|
| Thickness: | 0.2-4.0mm | Hole Size: | 0.8-18mm |
| Hole Shape: | Square/round/hexagonal/slotted Hole | Name: | 0.8mm Hole Decorative Perforated Aluminum Sheet For Liquid Filtration |
| Application: | Chemial Industry,building Decorative,food Industry | Packing: | Pallet |
| Certification: | ISO 9001 | Sample: | For Free |
| Highlight: | Decorative perforated aluminum sheet,Liquid Filtration perforated aluminum sheet,0.8mm hole perforated aluminum sheet |
||

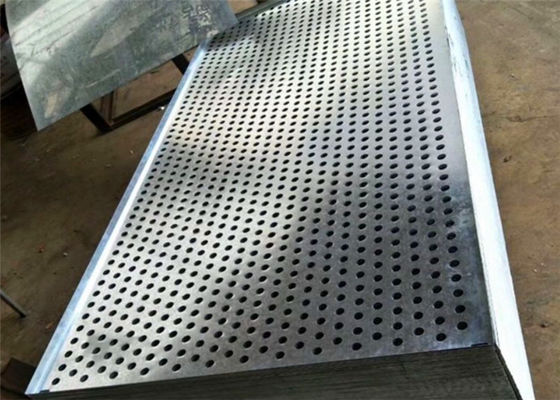

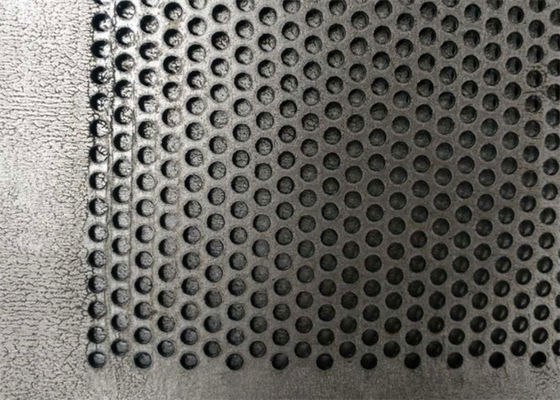

Decorative Perforated Metal Sheet Punching Hole Mesh For Liquid Filtration
Product Description
Materials: Low carbon steel plate, Stainless steel plate, Aluminium cobon plate, Alloy plate, Galvanized steel plate,Tinplate, Inconel , Titanium,Nickl,Copper,etc.
Hole shape: Long hole, square hole, round hole, hexagonal hole, scale hole, stretching and other special-shaped hole
Hole styles: circular hole, hexagonal hole, fish scale hole, etc.Production can be made in different material, style or hole diameter.
Product Specification
| The common sizes of Yuanhai Perforated Sheet | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Surface Treatment
1.Spray coated
2.Plastic dipping
3.Anodized
4.Paint
5.Fluorocarbon spraying
6.Polishing
Product Application
• Sunscreens
• Balustrade panels
• Fencing and gate infill panels
• Ceiling panels
• Architectural feature panels
• Building facades
• Acoustic wall panels
• Filters
• Shop fitting wall panels
• Custom perforations
Round Hole Advantages
Product Packing
1.Iron pallet and waterproof plastic for heavy material.
2.Wooden case for light or soft material.
3.Every two pieces should put one paper to protect the surface.
Production Show
