Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel, Aluminium , Steel Carbon | Process: | Perforated |
|---|---|---|---|
| Thickness: | 0.2-4.0mm | Hole Size: | 0.8-18mm |
| Hole Shape: | Square/round/hexagonal/slotted Hole | Brand Name: | Yuanhai |
| Application: | Chemial Industry,building Decorative,food Industry | Packing: | Pallet |
| Certification: | ISO 9001 | Name: | ISO 4mm Thickness Q235 Perforated Metal Mesh Sheet |
| Highlight: | q235 perforated metal mesh sheet,4mm perforated metal mesh sheet,ISO perforated metal mesh sheet |
||

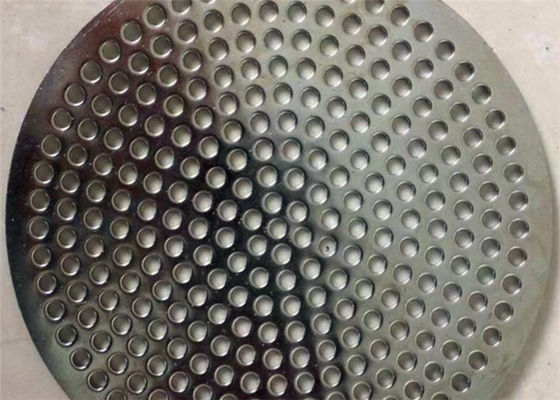

4mm Thickness Perforated Metal Sheet Galvanized Punching Hole Plate Q235
Product Description
| Material | Stainless Steel plate, High or Low carbon Steel Plate, Galvanized Plate, Zinc Plate, Aluminum Plate, Aluminum Alloy Plate, Mg-Al Plate etc. |
| Length | Max 10ft |
| Thickness | 0.3mm – 25mm |

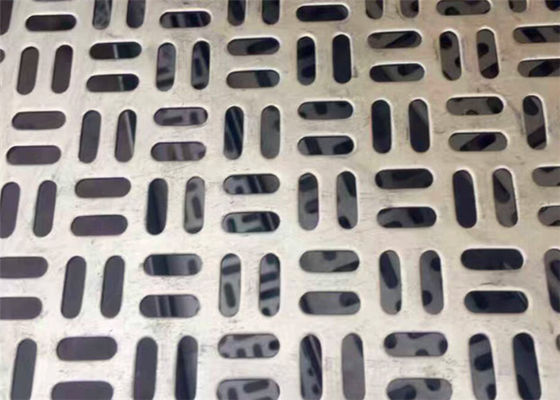

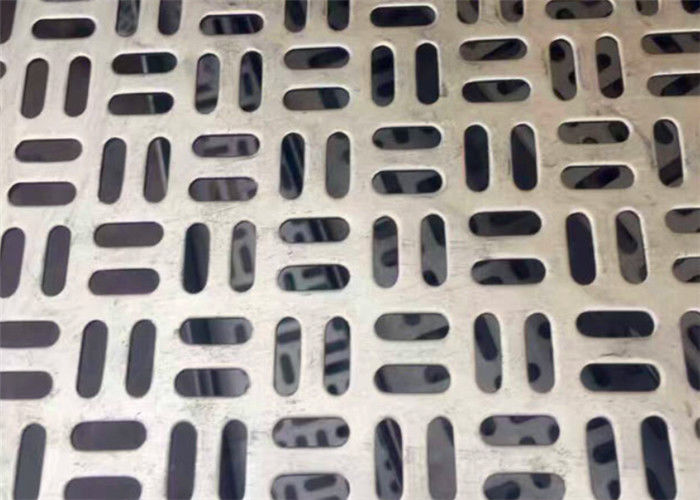

| Hole patterns | Round hole, square hole, long round hole, triangle hole, scale hole, diamond hole, oval hole, hexagonal hole etc. |
Product Specification
| The common sizes of Yuanhai Perforated Sheet | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Surface Treatment
1.Spray coated
2.Plastic dipping
3.Anodized
4.Paint
5.Fluorocarbon spraying
6.Polishing
Product Application
Round Hole Advantages
Product Packing
1.Iron pallet and waterproof plastic for heavy material.
2.Wooden case for light or soft material.
3.Every two pieces should put one paper to protect the surface.
Production Show
