Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel, Aluminium , Steel Carbon | Thickness: | 0.2-4.0mm |
|---|---|---|---|
| Hole Size: | 0.8-18mm | Hole Shape: | Square/round/hexagonal/slotted Hole |
| Application: | Balustrade Panels/Building Facades/Filters | Certification: | ISO 9001：2015 |
| Technique: | Perforated | Processing Service: | Bending, Welding, Decoiling, Cutting, Punching |
| Highlight: | 1220 x 2440mm perforated metal mesh,1.5mm thickness perforated metal mesh,perforated low carbon steel sheet |
||
Low Carbon Steel Perforated Metal Sheet 1220 x 2440mm 1.5mm Thickness
Description of Perforated Metal Sheet
Perforated metal sheet,also known as perforated sheet,perforated screen,is sheet metal that has been manually or mechanically stamped or punched to create a pattern of holes,slots,or decorative shapes.
The round hole mesh is usually made of white galvanized steel plate, stainless steel plate, copper plate, aluminum plate, nickel plate and alloy plate,and punched through a die by punching. The product has the characteristics of beautiful appearance, strong integrity, uniform mesh, smooth mesh surface, processing, and low cost.
Specification of Perforated Metal Sheet
| ISO approved wholesale corten steel galvanized perforated metal | ||||||
| Opening (mm) | Center type(mm) | The thickness of the sheet (mm)min-max | Size (mm) | Stainless | Iron | Aluminum |
| Steel | ||||||
| 1 | ≥2 | 0.4---1 | 1220×2440 | √ | √ | √ |
| 1.5 | ≥2.5 | 0.4-1 | 1220×2440 | √ | √ | √ |
| 2 | ≥3 | 0.4-2 | 1220×2440 | √ | √ | √ |
| 2.5 | ≥3.5 | 0.4-2.5 | 1220×2440 | √ | √ | √ |
| 3 | ≥4 | 0.4-3 | 1220×2440 | √ | √ | √ |
| 4 | ≥5.5 | 0.44 | 1220×2440 | √ | √ | √ |
| 5 | ≥6.5 | 0.4__5 | 1220×2440 | √ | √ | √ |
| 6 | ≥8 | 0.4-5 | 1220×2440 | √ | √ | √ |
| 7 | ≥9 | 0.4-6 | 1220×2440 | √ | √ | √ |
| 8 | ≥10 | 0.57.5 | 1220×2440 | √ | √ | √ |
| 9 | ≥11 | 0.58 | 1220×2440 | √ | √√ | √ |
| 10 | ≥12 | 0.6---8 | 1220×2440 | √ | √ | √ |
| 12--20 | ≥15-24 | 0.8---6 | 1220×2440 | √ | √ | √ |
| 21-30 | ≥25-36 | 1.0--6 | 1220×2440 | √ | √ | √ |
| Above specifications for reference only, specifications can be customized according to user needs. | ||||||
Application of Perforated Metal Sheet
Perforated Metal Mesh used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

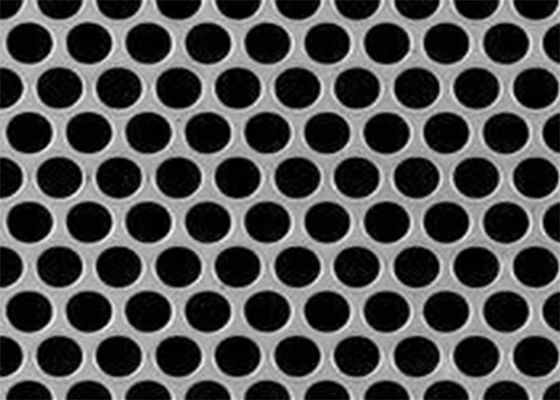

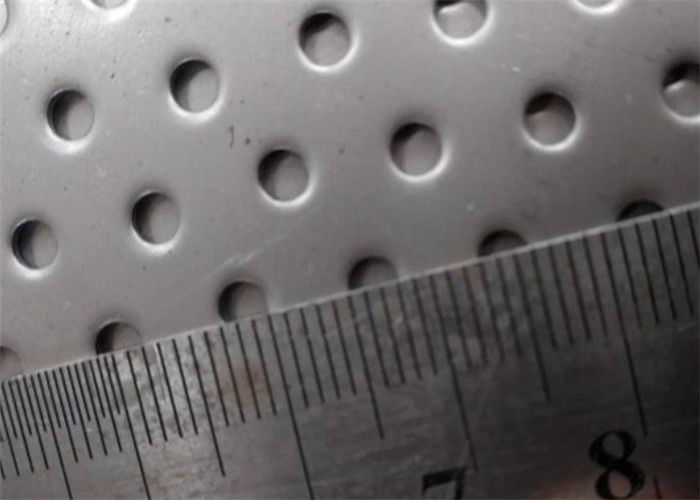

Production Show of Perforated Metal Sheet
