Product Details:
Payment & Shipping Terms:
|
| Material: | Low Carbon Steel | Wire Diameter: | 3.5mm-5.0mm |
|---|---|---|---|
| Mesh Size: | 50*200mm 50*150mm 55*100mm | Surface Treatment: | Galvanized+PVC Coated |
| Height: | 1030mm/1230mm/1530mm/1830mm Or As Request | Length: | 2000mm/2200mm/2500mm/3000mm |
| Advantage: | Anti-corrosion/High Strength Durable | Post Shape: | Round Posts, Square Posts, Peach Posts |
| Application: | Airports, Ports, Terminals Security | Certification: | ISO9001:2015 |
| High Light: | 50*200mm hole 3d wire mesh fence,3.5mm 3d wire mesh fence,galvanized 3d wire mesh fence |
||

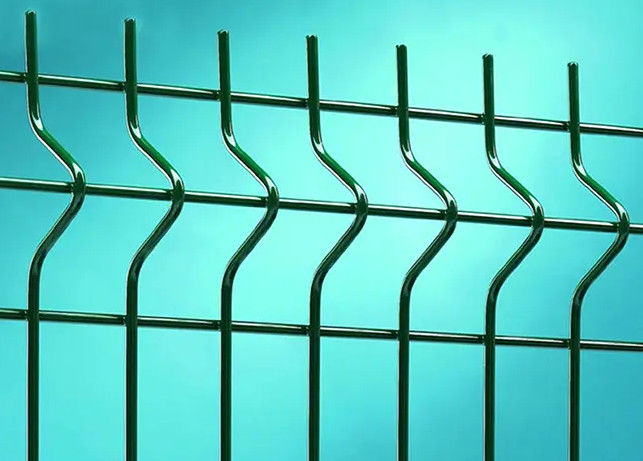

3D Curve Triangle Galvanized Welded Wire Mesh Fence Description
3D Curve Triangle Galvanized Welded Wire Mesh Fence is normally made of steel, but is designed to imitate traditional iron fence. It is normally supplied as panels, about three feet square, with a spear post at one end which can be driven down into the ground.Frame fence is called "the frame type anti climbing welding net","frame fence"etc.It is a kind of assembly is very flexible products,widely used in highway,railway;both can be made into a permanent net wall,and can be used as a temporary isolation network,just a different column fixation can achieve.
3D Curve Triangle Galvanized Welded Wire Mesh Fence Specification
|
Panel height
|
Panel Length
|
Wire Diameter
|
Mesh Size
|
Folds No.
|
|
0.6/0.63m
|
2.5m or custom
|
Gal + Powder Coated
3.85mm/4.0mm
4.85mm/5.0mm
Gal + PVC Coated
3.0mm/4.0mm
4.0mm/5.0mm
Hot-dipped Gal.
|
50*200mm
55*200mm
50*150mm
55*100mm
|
2
|
|
1.0/1.03m
|
2
|
|||
|
1.2/1.23m
|
2
|
|||
|
1.5/1.53m
|
3
|
|||
|
1.7/1.73m
|
3
|
|||
|
1.8/1.83m
|
3/4
|
|||
|
1.9/1.93m
|
3
|
|||
|
2.0/2.03m
|
4
|
|||
|
2.4/2.43m
|
4
|
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you.
3D Curve Triangle Galvanized Welded Wire Mesh Fence Advantages
3D Curve Triangle Galvanized Welded Wire Mesh Fence Applications
Private properties and recreational sites
Sports facilities, pitches, tennis courts, playgrounds
Warehouses, logistics bases - military facilities and sites
Housing estates and parking lots
Industrial and commercial buildings
Public places
3D Curve Triangle Galvanized Welded Wire Mesh Fence Production
Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading

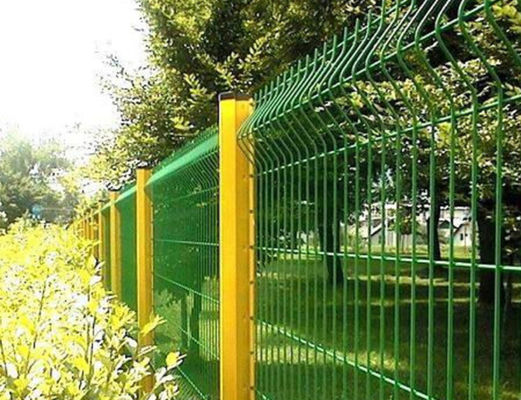

3D Curve Triangle Galvanized Welded Wire Mesh Fence Product Show
