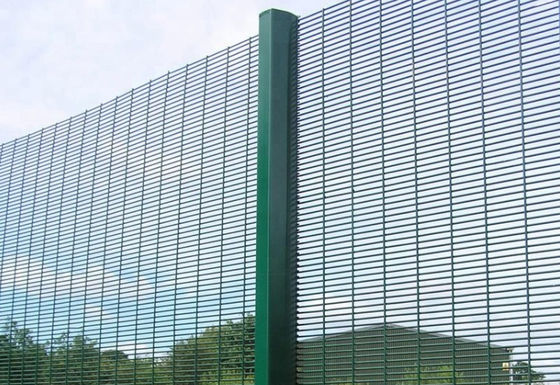

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing
Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing

Large Image :  Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 76.2mm*12.7mm
Horizontal Wire: 3.5mm Vertical Wire: 4mm
Feature: Easily Assembled, Eco Friendly, Pressure Treated Timbers, Rodent Proof, Rot Proof, Waterproof Post Size: 60x60mm, 60x80mm, 80x80mm
Surface Treatment: Galvanized/PVC Coating Certification: ISO 9001:2015
Usage: Garden Fence, High Security Fence Sample: For Free
High Light:

80x80mm post 358 security fencing

,

low carbon steel 358 security fencing

,

80x80mm post 358 mesh fence

Powder Coated 358 Security Fencing Anti Theft Fence





Description of 358 Security Fencing



The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm, it is very popular in US Market and Malaysia Market. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.



Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



Post system of 358 Security Fencing



Square hollow section posts provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust.

Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplated for fixing to a concrete base,and/or cranked to receive another panel or for razor wire.



Packing of 358 Security Fencing



1>There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>There is 4 metal corners to keep the pallet more strong.
3>There is metal plate under the plastic bandage to reduce the apressure of fence panels
4>There is wooden plate at the top of fence panel which can protect the fence panels from being crushed by other pallets.

Drawings of 358 Security Fencing
Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 0

Type of 358 Security Fencing

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 1

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 2Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 1

Accessories of 358 Security Fencing

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 4

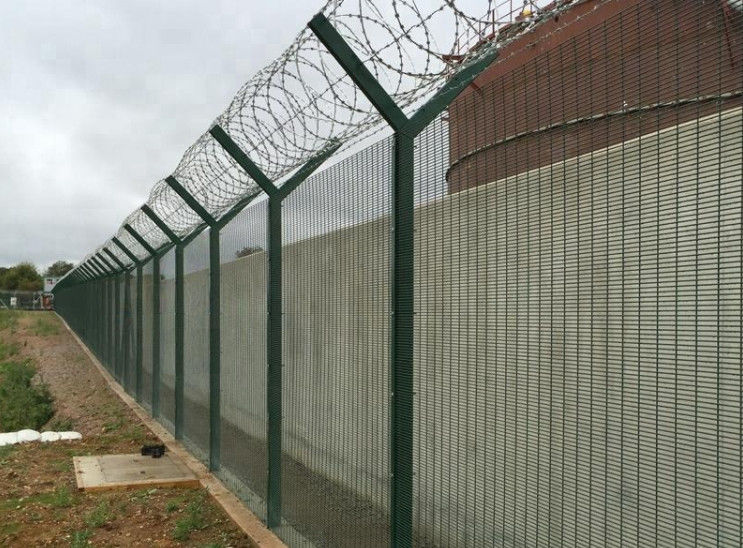

Application of 358 Security Fencing

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 5

Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 6
Low Carbon Steel Wire Mesh 80x80mm Post 358 Security Fencing 6
