Product Details:
Payment & Shipping Terms:
|
| Material: | Low Carbon Steel Wire | Hole Size: | 12.7mmX76.2mm(1/2''X3'') |
|---|---|---|---|
| Wire Diameter: | 3.5-4.5mm | Post Size: | 60x60mm, 60x80mm, 80x80mm |
| Surface Treatment: | Galvanized+PVC Coating/Hot Dip Galvanized | Application: | Ety Screening, Airpot, Prison, Etc |
| Brand Name: | Yuanhai | Certification: | ISO 9001:2015 |
| Sample: | For Free | Size: | Customized |
| High Light: | 4.5mm 358 security fencing,hot dip galvanized 358 security fencing,358 security fencing for stadium |
||

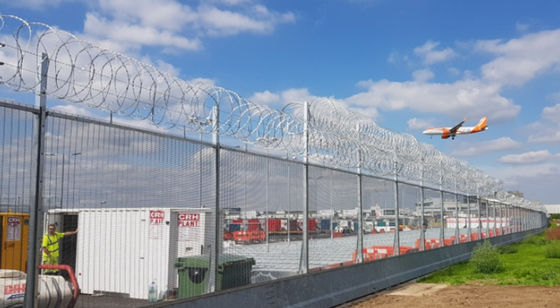

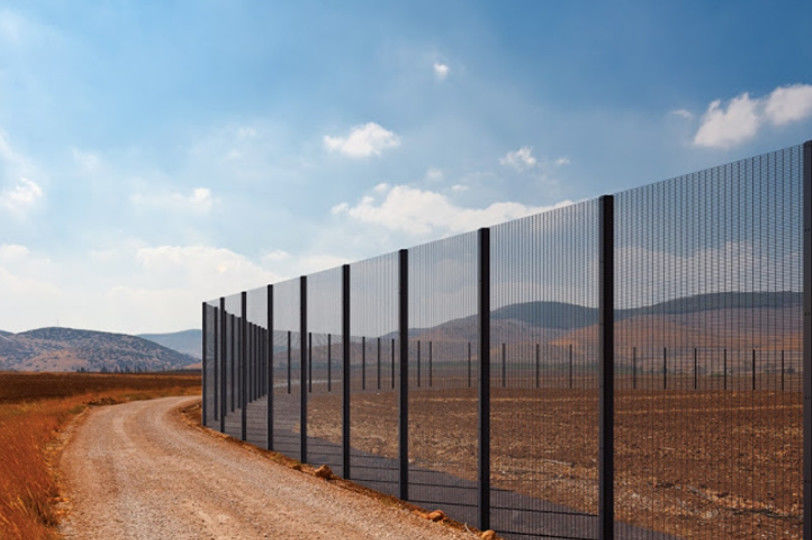

Hot Dip Galvanized 358 Anti Climb Security Fence For Stadium
Description of 358 Security Fencing
Anti climb fence is also called 358 fence or anti climb fence, this system is extensively used when defendable space is
paramount, used throughout the world in varying applications.
The climb resistant mesh (sometimes referred to as prison mesh or 358 mesh) with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand cutting tools.
Specifications of 358 Security Fencing
| MESH | PANELS | POST | ||||
| Wire | Opening | Height*Width | Section | O/A Length | Total Number of Fixings | |
| mm | mm | mm | mm | mm | Inters-1 Clamp Bar | Comers-2 Clamp Bar |
| 4 | 12.7*76.2(3"*1/2") | 2007*2515 | 60*60*2.5 | 2700 | 7 | 14 |
| 4 | 12.7*76.2(3"*1/2") | 2004*2515 | 60*60*2.5 | 3100 | 9 | 18 |
| 4 | 12.7*76.2(3"*1/2") | 2997*2515 | 80*80*2.5 | 3800 | 11 | 22 |
| 4 | 12.7*76.2(3"*1/2") | 3302*2515 | 80*80*2.5 | 4200 | 12 | 24 |
| 4 | 12.7*76.2(3"*1/2") | 3607*2515 | 100*60*3 | 4500 | 13 | 26 |
| 4 | 12.7*76.2(3"*1/2") | 3607*2515 | 100*100*3 | 4500 | 13 | 26 |
Standard Specification of 358 Security Fencing
Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment:galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts
Features of 358 Security Fencing
1.Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
2.Anti-shear - the wire diameter is large, the mesh is dense, making the wire cut useless.
3.Beautiful appearance - the mesh surface is flat, and the perspective is higher.
