| Material: | SS 302,304,316,304L,316L,321 | Weaving: | Plain,twill Or Dutch Weave |
|---|---|---|---|
| Usage: | Petro, Chemical, Air,liquid Filter | Roll Width: | 0.914m/1m/1.22m/1.5m Or Customized |
| Roll Length: | 30 Meters | Wire Diameter: | 0.02-2mm Stainless Steel Wire Mesh |
| Feature: | Low Elongation/high Tension | Size: | Customized |
| Certificate: | ISO9001:2015 | MOQ: | 1 Roll |
| High Light: | 0.914m width stainless steel wire screen,100mesh stainless steel wire screen,micron stainless woven wire mesh |
||
100 Mesh Stainless Steel Wire Mesh Micron Woven Wire Cloth Mesh
Product Description of Stainless Steel Wire Mesh
1.Material:
(1) Stainless Steel Material Grade:
SUS304, 316, 316L, 310S, 904L, 430, 321, 317, 317H, 410, duplex 2205, super duplex 2507 woven wire mesh.
(2) Special Material meets with high requirement environment:
Nickel wire mesh, monel alloy wire mesh, Titanium Woven Mesh, Inconel Mesh, Silver Woven Mesh, Molybdenum Mesh and ect...
2.Wire Diameter: 0.015-2.8mm
3.Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
Features of Stainless Steel Wire Mesh
Weaving Style of Stainless Steel Wire Mesh
plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.
Product Specification of Stainless Steel Wire Mesh
| Type | Mesh/Inch | Wire diameter (inch) |
OPen Area | Weight (LB) /100 Square Foot |
| Plain,Twill Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter (inch) |
Absolute Filtration Finess μm |
Nominal Filtration Finess μm |
| Plain Dutch Weave Wire Mesh |
8 × 85 - 80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Dutch Weave Wire Mesh |
20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2- |
Application of Stainless Steel Wire Mesh

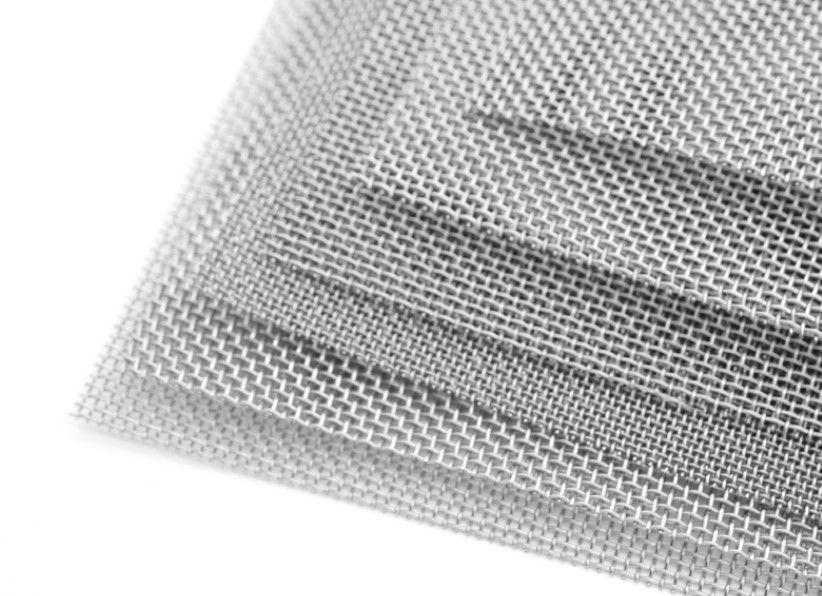

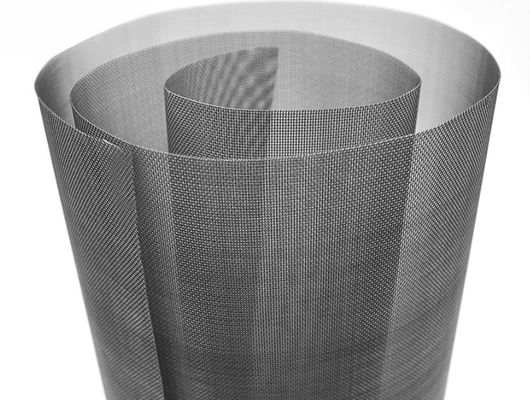

Detail Images of Stainless Steel Wire Mesh
Package of Stainless Steel Wire Mesh
1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
