Food Grade Stainless Steel Filter Mesh / Woven Filter Mesh For Classifying
Stainless Steel Filter Mesh Description
Stainless steel mesh is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing, smooth surface, no rust, corrosion resistance, non-toxic, health, environmental protection. Stainless steel mesh is mainly used in hospitals, pasta, meat barbecue, living basket, fruit basket series products, also used in some industries for filtering and screening.
Stainless Steel Filter Mesh Features
High tension: Much higher tension than common polyester mesh and smooth tension
Super precision: Uniform wire diameter and aperture with extremely low difference
Low elongation: Very small elongation of wire mesh at high tension
Anlistatic: Avoid affects of static for print to ensure the ety of printing
High elasticity : The wire mesh will not lose elasticity at extreme tension
Hot melt: Special features of stainless wire mesh. Suitable for hot melt ink
High corrosion resistance: The excellent corrosion resistance exceeds polyester fiber
Good solvent resistance: can avoid the affects of any solven
Stainless Steel Filter Mesh Weaving Style
plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.
Stainless Steel Filter Mesh Product Specification
| Type |
Mesh/Inch |
Wire diameter
(inch) |
OPen Area |
Weight (LB)
/100 Square Foot |
| Plain,Twill Wire Mesh |
1 × 1-635 × 635 |
0.0008"-0.08" |
25 to 84.6 |
2.53 to 41.1 |
| Type |
Mesh/Inch |
Wire diameter
(inch) |
Absolute Filtration
Finess μm |
Nominal Filtration
Finess μm |
Plain Dutch Weave
Wire Mesh |
8 × 85 - 80 × 400 |
0.014'' × 0.0126''- 0.0049'' × 0.0028'' |
318-340 to 43-48 |
250-255 to 35-40 |
Twill Dutch Weave
Wire Mesh |
20 × 250 - 500 × 3200 |
0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' |
110-120 to 8-9 |
98-105 to 2- |
Tips:
1.We can produce per your request for your speical needs.
2.Pls kindly advise materials,wire diameter,mesh size,hole size and qty for price quotation.
Stainless Steel Filter Mesh Application
5-18mesh SS wire mesh used in general industrial use applications, like heavy duty particle separation, water filtration and food processing. Such as:mining, quarrying, security, and automotive to name a few.
20-40mesh SS wire mesh used in instances where air flow is needed. Other of these can be used in scientific applications. Non-industrial users also find some of these specifications suitable for various decorative and artistic applications.
50-500mesh SS wire mesh ,these specifications are reserved for high performance use in industries, like aerospace, science research and special technologies. available from stock in full 100 ft rolls. These rolls can be cut down to size.

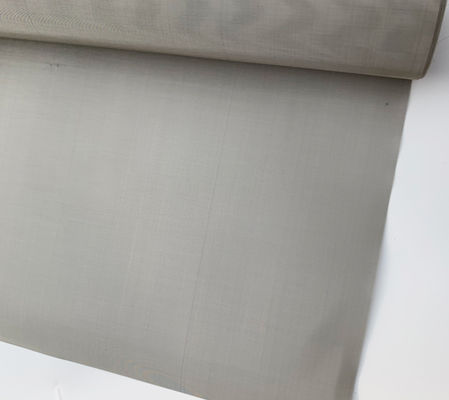

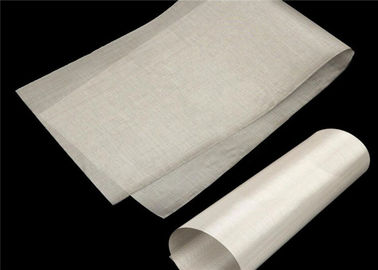

Stainless Steel Filter Mesh Detail Images
Stainless Steel Filter Mesh Package
1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
