Product Details:
Payment & Shipping Terms:
|
| Material: | SS 302,304,316,304L,316L,321 | Weaving: | Plain,twill Or Dutch Weave |
|---|---|---|---|
| Usage: | Petro, Chemical, Air,liquid Filter | Roll Width: | 0.9-2.0m Or Customized |
| Wire Diameter: | 0.02-2mm Stainless Steel Wire Mesh | Feature: | Corrosion Resistance |
| Place Of Origin: | Hebei,China | Package: | Water Proof Paper And Then In Plywood Case |
| Brand Name: | Yuanhai | Hole Shape: | Square Hole |
| High Light: | 80 mesh stainless steel sieve screen,70 mesh stainless steel sieve screen,woven stainless steel sieve screen |
||
70 / 80 Mesh Stainless Steel Sieve Screen Woven Wire Mesh For Filter Screen
Stainless Steel Filter Mesh Description
Stainless Steel Filter Mesh Features
Stainless Steel Filter Mesh Weaving Style
plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.
Stainless Steel Filter Mesh Product Specification
| Type | Mesh/Inch | Wire diameter (inch) |
OPen Area | Weight (LB) /100 Square Foot |
| Plain,Twill Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter (inch) |
Absolute Filtration Finess μm |
Nominal Filtration Finess μm |
| Plain Dutch Weave Wire Mesh |
8 × 85 - 80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Dutch Weave Wire Mesh |
20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2- |
Tips:
1.We can produce per your request for your speical needs.
2.Pls kindly advise materials,wire diameter,mesh size,hole size and qty for price quotation.
Stainless Steel Filter Mesh Application
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

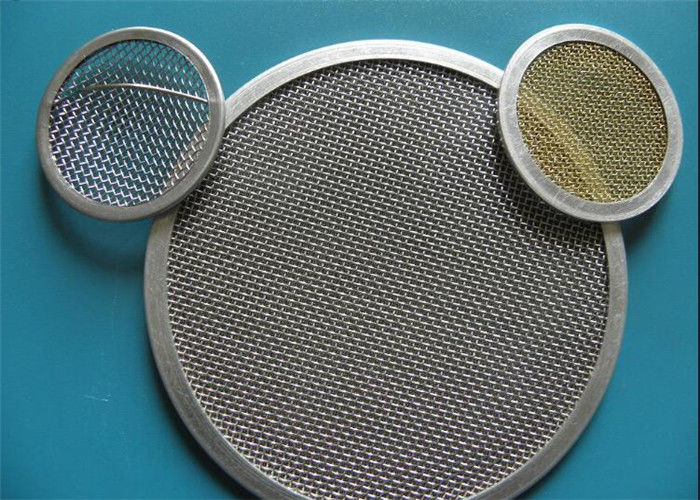

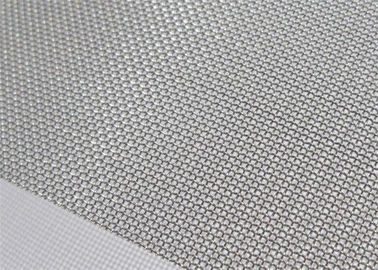

Stainless Steel Filter Mesh Detail Images
Stainless Steel Filter Mesh Package
1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
