Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer

Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer
Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer

Large Image :  Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001
Model Number: YH-32
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square Meters
Price: Negotiable
Packaging Details: packing in roll and plastic inside and wooden case outside or as your requirement
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000 Square Meter/Square Meters per Month
Detailed Product Description
Material: SS 302,304,316,304L,316L,321 Weaving: Plain,twill Or Dutch Weave
Usage: Petro, Chemical, Air,liquid Filter Roll Width: 0.914m/1m/1.22m/1.5m Or Customized
Roll Length: 30 Meters Wire Diameter: 0.02-2mm Stainless Steel Wire Mesh
Feature: Low Elongation/high Tension Port: Xingang Port
Certification: ISO 9001:2015 Package: Pvc Bag,waterproof Paper,pallets
High Light:

201 stainless steel wire mesh filter

,

iso passed stainless steel filter mesh

,

0.02mm stainless steel wire mesh filter

SS 201 Stainless Steel Wedge Wire Screen Filter Mesh For Basket Strainer





Product Description of Stainless Steel Wire Mesh

  • Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
  • Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
  • The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.

Features of Stainless Steel Wire Mesh

  • Corrosion resistance.
  • Anti-acid and alkali
  • Anti-high temperture.
  • Good filter performance.
  • Long using life
  • Low elongation and high tension with stable ability
  • Super precision, uniform wire diameter and aperture
  • High flexibility
  • Excellent corrosion resistance,acid and alkali stability.
  • Non-electrostatic
  • Good heat-melting resistance and solvent resistance
  • Long service life

Weaving Style of Stainless Steel Wire Mesh



plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.



Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer 0



Product Specification of Stainless Steel Wire Mesh



Type Mesh/Inch Wire diameter
(inch)
OPen Area Weight (LB)
/100 Square Foot
Plain,Twill Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter
(inch)
Absolute Filtration
Finess μm
Nominal Filtration
Finess μm
Plain Dutch Weave
Wire Mesh
8 × 85 - 80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Dutch Weave
Wire Mesh
20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-



Application of Stainless Steel Wire Mesh



Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

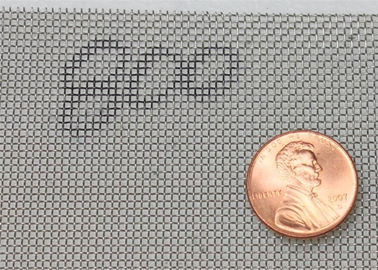

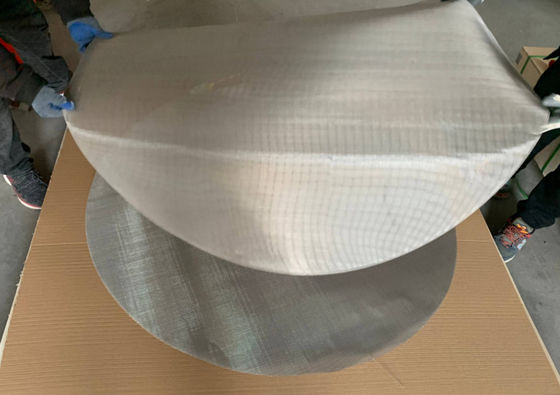

Detail Images of Stainless Steel Wire Mesh



Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer 1



Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer 2



Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer 3



Package of Stainless Steel Wire Mesh


1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.


Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer 4



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Low Elongation 201 0.02mm Stainless Steel Wire Mesh Filter For Basket Strainer 5
