Square Hole Plain Weave 304l 316l Vibrating Screen Mesh

Square Hole Plain Weave 304l 316l Vibrating Screen Mesh
Square Hole Plain Weave 304l 316l Vibrating Screen Mesh Square Hole Plain Weave 304l 316l Vibrating Screen Mesh

Large Image :  Square Hole Plain Weave 304l 316l Vibrating Screen Mesh

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001
Model Number: YH-32
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square Meters
Price: Negotiable
Packaging Details: packing in roll and plastic inside and wooden case outside or as your requirement
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000 Square Meter/Square Meters per Month
Detailed Product Description
Material: SS 201,304, 304L, 316, 316L, 904L, 431, Etc. Weaving: Plain Weave,twill Weave And Dutch Weave
Usage: Petro, Chemical, Air,liquid Filter Roll Width: 0.914m/1m/1.22m/1.5m Or Customized
Roll Length: 30 Meters Wire Diameter: 0.02-2mm Stainless Steel Wire Mesh
Certification: ISO 9001:2015 Package: Pvc Bag,waterproof Paper,pallets
Brand Name: Yuanhai Hole Shape: Square
High Light:

316l vibrating screen mesh

,

304l vibrating screen mesh

,

sgs vibrating screen mesh

Plain Weave Stainless Steel 304 Screen Mesh for Vibrating Screen





Product Description of Stainless Steel Wire Mesh

  • Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
  • Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
  • The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.

Features of Stainless Steel Wire Mesh

  • Low elongation and high tension with stable ability
  • Super precision, uniform wire diameter and aperture
  • High flexibility
  • Excellent corrosion resistance,acid and alkali stability.
  • Non-electrostatic
  • Good heat-melting resistance and solvent resistance
  • Long service life
  • Corrosion resistance.
  • Anti-acid and alkali
  • Anti-high temperture.
  • Good filter performance.
  • Long using life

Weaving Style of Stainless Steel Wire Mesh



plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.



Square Hole Plain Weave 304l 316l Vibrating Screen Mesh 0



Product Specification of Stainless Steel Wire Mesh



Type Mesh/Inch Wire diameter
(inch)
OPen Area Weight (LB)
/100 Square Foot
Plain,Twill Wire Mesh 1 × 1-635 × 635 0.0008"-0.08" 25 to 84.6 2.53 to 41.1
Type Mesh/Inch Wire diameter
(inch)
Absolute Filtration
Finess μm
Nominal Filtration
Finess μm
Plain Dutch Weave
Wire Mesh
8 × 85 - 80 × 400 0.014'' × 0.0126''- 0.0049'' × 0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Dutch Weave
Wire Mesh
20 × 250 - 500 × 3200 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' 110-120 to 8-9 98-105 to 2-



Application of Stainless Steel Wire Mesh



  • 5-18mesh SS wire mesh used in general industrial use applications, like heavy duty particle separation, water filtration and food processing. Such as:mining, quarrying, security, and automotive to name a few.
  • 20-40mesh SS wire mesh used in instances where air flow is needed. Other of these can be used in scientific applications. Non-industrial users also find some of these specifications suitable for various decorative and artistic applications.
  • 50-500mesh SS wire mesh ,these specifications are reserved for high performance use in industries, like aerospace, science research and special technologies. available from stock in full 100 ft rolls. These rolls can be cut down to size.

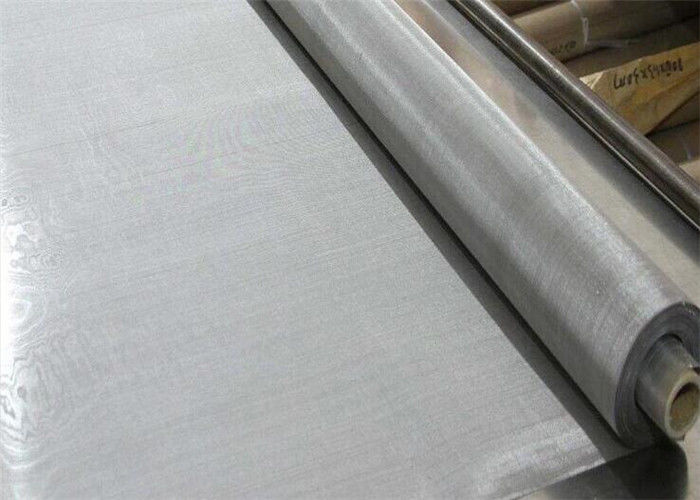

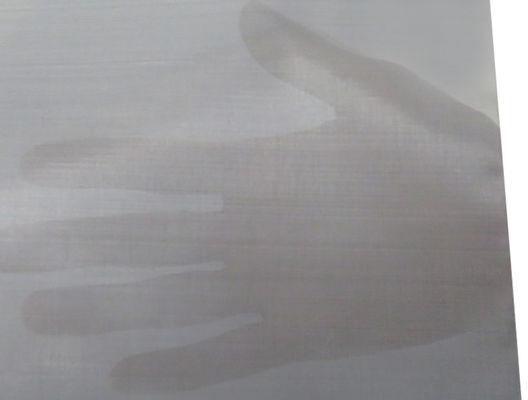

Detail Images of Stainless Steel Wire Mesh



Square Hole Plain Weave 304l 316l Vibrating Screen Mesh 1



Square Hole Plain Weave 304l 316l Vibrating Screen Mesh 2



Square Hole Plain Weave 304l 316l Vibrating Screen Mesh 3



Package of Stainless Steel Wire Mesh


1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.


Square Hole Plain Weave 304l 316l Vibrating Screen Mesh 4



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Square Hole Plain Weave 304l 316l Vibrating Screen Mesh 5
