Product Details:
Payment & Shipping Terms:
|
| Material: | SS 302,304,316,304L,316L,321 | Weaving: | Plain,twill Or Dutch Weave |
|---|---|---|---|
| Usage: | Petro, Chemical, Air,liquid Filter | Roll Width: | 0.914m/1m/1.22m/1.5m Or Customized |
| Roll Length: | 30 Meters | Wire Diameter: | 0.0008"-0.08" |
| Feature: | Corrosion Resistance | Place Of Origin: | Hebei,China |
| Package: | Water Proof Paper And Then In Plywood Case | Certification: | ISO, SGS |
| High Light: | 30m length woven wire cloth,ss302 woven wire cloth,SGS plain weave wire mesh |
||

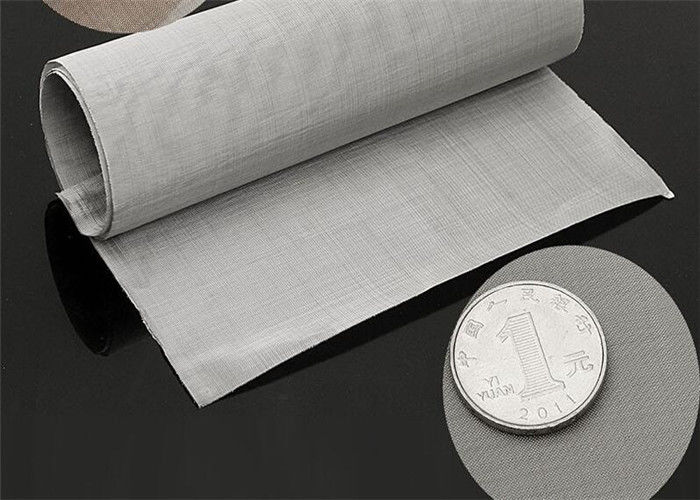

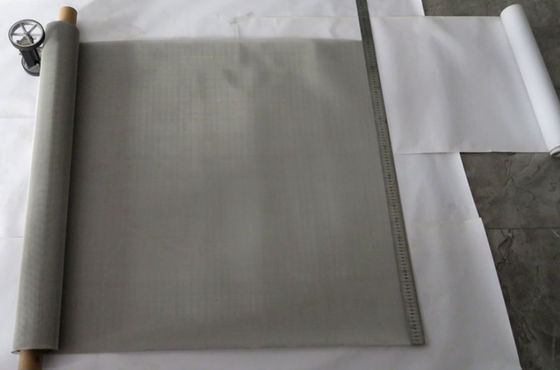

Plain Dutch Weave Stainless Steel 304 Filter Woven Wire Cloth For Sieve
Product Description of Stainless Steel Wire Mesh
Stainless steel mesh is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing, smooth surface, no rust, corrosion resistance, non-toxic, health, environmental protection. Stainless steel mesh is mainly used in hospitals, pasta, meat barbecue, living basket, fruit basket series products, also used in some industries for filtering and screening.
Mesh count of Stainless Steel Wire Mesh
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
Features of Stainless Steel Wire Mesh
Weaving Style of Stainless Steel Wire Mesh
plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.
Product Specification of Stainless Steel Wire Mesh
| Type | Mesh/Inch | Wire diameter (inch) |
OPen Area | Weight (LB) /100 Square Foot |
| Plain,Twill Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter (inch) |
Absolute Filtration Finess μm |
Nominal Filtration Finess μm |
| Plain Dutch Weave Wire Mesh |
8 × 85 - 80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Dutch Weave Wire Mesh |
20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2- |
Application of Stainless Steel Wire Mesh
Package of Stainless Steel Wire Mesh
1.Inside use carton pipe for support+wire mesh layer+water proof paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden pallets.
3.Also we can as per your requirements.
Application of Stainless Steel Wire Mesh
5-18mesh SS wire mesh used in general industrial use applications, like heavy duty particle separation, water filtration and food processing. Such as:mining, quarrying, security, and automotive to name a few.
20-40mesh SS wire mesh used in instances where air flow is needed. Other of these can be used in scientific applications. Non-industrial users also find some of these specifications suitable for various decorative and artistic applications.
50-500mesh SS wire mesh ,these specifications are reserved for high performance use in industries, like aerospace, science research and special technologies. available from stock in full 100 ft rolls. These rolls can be cut down to size.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
