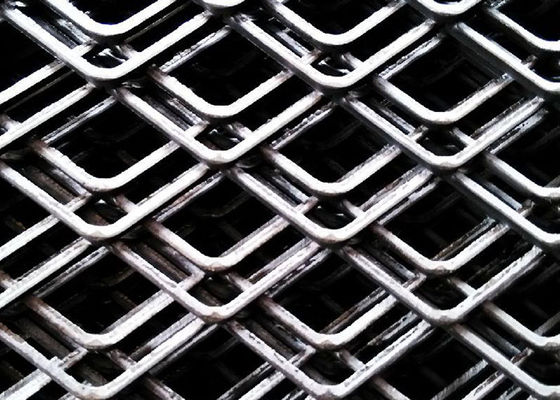

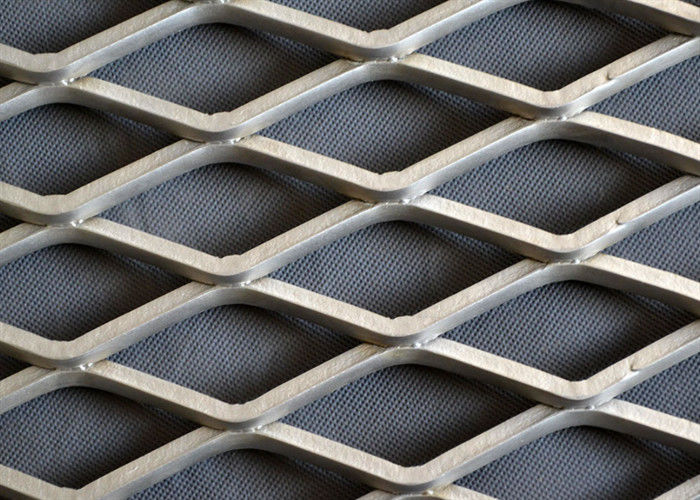

Punching Cladding 4ft X 8ft Expanded Steel Mesh

Large Image : Punching Cladding 4ft X 8ft Expanded Steel Mesh

Product Details:

Place of Origin:	Hebei,China
Brand Name:	YuanHai
Certification:	ISO9001:2008
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	50 Square Meters
Price:	Negotiable
Packaging Details:	palletized or loose load in the container
Delivery Time:	3-8 days
Payment Terms:	T/T
Supply Ability:	100000 Square Meters per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel Plate , Aluminium Plate,common Carbon Plate	Hole Shape:	Diamond / Hexagonal
LWD:	25mm-100mm	SWD:	10mm-50mm
Weight:	0.7kg-30kg/㎡	Thickness:	0.3mm-8mm
Process:	Cutting, Punching	Surface Treatment:	Hot Dipped Galvanized, Powder Coated
Product Name:	Expanded Aluminium/ Stainless Steel Sheet	Usage:	Construction,building Facade,guard, Filter Net
Technique:	Perforated	Service:	Sample Free
Size:	Customized	Brand Name:	Yuanhai
Highlight:	punching cladding expanded steel mesh , 4ft x 8ft expanded steel mesh , expanded metal mesh sizes 4ft x 8ft

Flattened Expanded Metal Sheet Diamond Steel Mesh Sheet For Cladding 4ft X 8ft

Product Description of Expanded Metal Sheet

Expanded metal mesh refers to the metal plate after the special machinery (steel plate mesh punching machine) after processing, to form the material conditions for the mesh.
Expanded metal mesh Material: low carbon steel, stainless steel, aluminum plate, brass plate .
Expanded metal mesh shape: diamond , square, round , trianglescale,etc, we can produce it according to the customers' drawing to punching and pulling.
Expanded metal mesh Pattern: , Standard - raised surface, more rigid
Features: It has well erosion-resisting and rustproof properties.

Specification of Expanded Metal Sheet

L.W.M.	S.W.M.	Strand Width	Strand Gauge	Approx. Kg/M2
6.05	3.38	0.8	0.5	2.1
10.24	5.84	0.8	0.5	1.2
10.24	5.84	1.2	0.9	3.2
14.27	5.84	1.2	0.9	3.2
19.05	7.42	1.2	0.9	3.4
5.8	3.5	0.8	0.6	2.1
19	7.4	1.7	1.0	3.4
30.5	11.7	2.4	1.6	4.9
30.5	11.7	2.4	1.2	3.8
38	16.5	2.2	1.6	3.4
50.8	22.5	2.5	2.5	4.4
50.8	22.5	3	1.6	3.4
50.8	22.5	3.9	3	8.1
50.8	22.5	3.1	3	6.5
76.2	33.9	3.5	3	4.9
85.7	40.6	3.2	3	3.7
101.6	50.8	5	3	4.7
101.6	50.8	3.4	3	3.1
114.3	39.3	4.6	3	5.4
200	75	6.3	3	3.6

Features of Expanded Metal Mesh

1.Continuity--the mesh is formed from a single piece of metal.

2.Environment friendly--no wasteful of material.

3.High strength--higher strength to weight ration then metal sheet.

4.Adherence--anti slip surface.

5.Good rigidity--premium reinforcement properties.

6.Good conductivity--highly efficient conductor.

7.Good resistance to corrosion.

Product Details of Expanded Metal Sheet

Product name	Expanded metal
Material	Stainless steel,thin low carbon steel,brass plate, Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate.
Thickness	0.3-10.0mm
Hole shape	Diamond,square hole,scale hole,gothic etc.
Mesh size	12202440mm,12002400mm,1000*2000mm or customized
Surface treatment	1.PVC coated 2.Powder coated 3.Anodized 4.Paint 5.Fluorocarbon spraying 6.Polishing

Application of Expanded Metal Sheet

Protective cover
Metal fence
Metal grille
Walkway
Building Facades
Supermarket shelves
Bicycle basket
Trailer floor and sides

Package of Expanded Metal Sheet

1. On pallet with waterproof cloth,the biggest width is 1500mm

2. In wooden case with waterproof paper

3. In carton box

4. In roll with woven bag,the biggest width is 3000mm

5. In bulk or In bundle

Punching Cladding 4ft X 8ft Expanded Steel Mesh 0

Punching Cladding 4ft X 8ft Expanded Steel Mesh 1

Punching Cladding 4ft X 8ft Expanded Steel Mesh 2

Punching Cladding 4ft X 8ft Expanded Steel Mesh 3
