Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Plate , Aluminium Plate,common Carbon Plate | Hole Shape: | Diamond / Hexagonal |
|---|---|---|---|
| LWD: | 25mm-100mm | SWD: | 10mm-50mm |
| Weight: | 0.7kg-30kg/㎡ | Thickness: | 0.3mm-8mm |
| Process: | Cutting, Punching | Surface Treatment: | Hot Dipped Galvanized, Powder Coated |
| Usage: | Construction,building Facade,guard, Filter Net | Brand Name: | Yuanhai |
| Place Of Origin: | Hebei Province,China | Certification: | ISO9001:2015 |
| High Light: | iso expanded metal wire mesh,powder coated expanded metal wire mesh,platform step ladder expandable steel mesh |
||

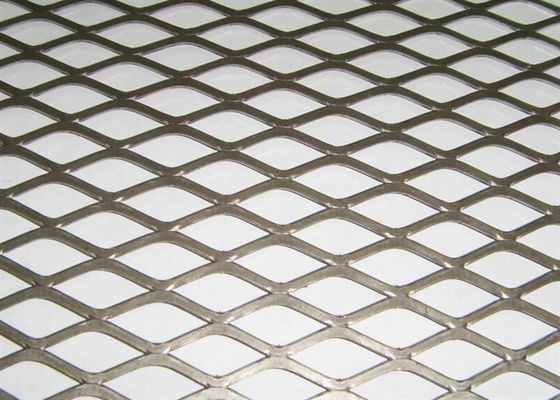

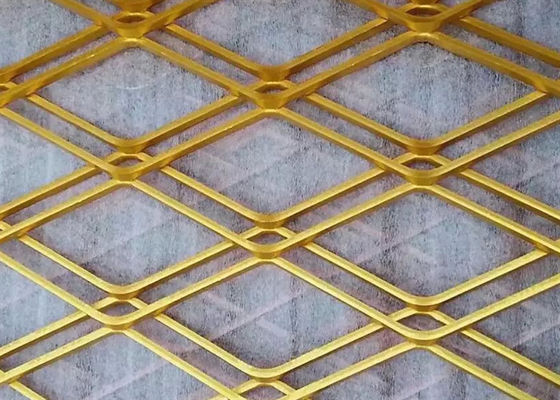

Powder Coated Expanded Diamond Hole Metal Wire Mesh Platform Step Ladder
Product Description of Expanded Metal Sheet
* Material: Low carbon steel sheet, cold rolled sheet, aluminum sheet,stainless steel sheet
* Processing mode: Deep stamping and drawing process
* Classification:
I. Electric/Hot dipped galvanized expanded mesh;
II. Copper plated expanded mesh;
III. PVC coated expanded mesh;
IV. Aluminum expanded mesh.
L.W.M. | S.W.M. | Strand Width | Strand Gauge | Approx. Kg/M2 |
6.05 | 3.38 | 0.8 | 0.5 | 2.1 |
10.24 | 5.84 | 0.8 | 0.5 | 1.2 |
10.24 | 5.84 | 1.2 | 0.9 | 3.2 |
14.27 | 5.84 | 1.2 | 0.9 | 3.2 |
19.05 | 7.42 | 1.2 | 0.9 | 3.4 |
5.8 | 3.5 | 0.8 | 0.6 | 2.1 |
19 | 7.4 | 1.7 | 1.0 | 3.4 |
30.5 | 11.7 | 2.4 | 1.6 | 4.9 |
30.5 | 11.7 | 2.4 | 1.2 | 3.8 |
38 | 16.5 | 2.2 | 1.6 | 3.4 |
50.8 | 22.5 | 2.5 | 2.5 | 4.4 |
50.8 | 22.5 | 3 | 1.6 | 3.4 |
50.8 | 22.5 | 3.9 | 3 | 8.1 |
50.8 | 22.5 | 3.1 | 3 | 6.5 |
76.2 | 33.9 | 3.5 | 3 | 4.9 |
85.7 | 40.6 | 3.2 | 3 | 3.7 |
101.6 | 50.8 | 5 | 3 | 4.7 |
101.6 | 50.8 | 3.4 | 3 | 3.1 |
114.3 | 39.3 | 4.6 | 3 | 5.4 |
200 | 75 | 6.3 | 3 | 3.6 |
Features of Expanded Metal Mesh
Anti-corrosion and anti-rust.
Various colours can be selected as needed.
Excellent artistic effect for decoration.
Good tensile strength and durability.
Easy maintenance, high visibility.
Antioxidant and corrosion resistant, long lifetime.
Convenient installation, and not easy to be damaged.
Environmental protection product, can be recycled.
Application of Expanded Metal Sheet
Expanded metal mesh has a wide range of uses, graceful shapes , strong processing capability. A major advantage of expanded is that the mesh is formed from a single piece of material and the process is not wasteful and therefore cost effective.
Main use: metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children’s seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.
Package of Expanded Metal Sheet
1. On pallet with waterproof cloth,the biggest width is 1500mm
2. In wooden case with waterproof paper
3. In carton box
4. In roll with woven bag,the biggest width is 3000mm
5. In bulk or In bundle
