4ft X 8ft Diamond Hole Perforated 8mm Aluminum Expanded Sheet For Security Wall

4ft X 8ft Diamond Hole Perforated 8mm Aluminum Expanded Sheet For Security Wall
4ft X 8ft Diamond Hole Perforated 8mm Aluminum Expanded Sheet For Security Wall 4ft X 8ft Diamond Hole Perforated 8mm Aluminum Expanded Sheet For Security Wall

Large Image :  4ft X 8ft Diamond Hole Perforated 8mm Aluminum Expanded Sheet For Security Wall

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 50 Square Meters
Price: Negotiable
Packaging Details: palletized or loose load in the container
Delivery Time: 3-8 days
Payment Terms: T/T
Supply Ability: 100000 Square Meters per Week
Detailed Product Description
Material: Stainless Steel Plate , Aluminium Plate,common Carbon Plate Hole Shape: Diamond / Hexagonal
LWD: 25mm-100mm SWD: 10mm-50mm
Weight: 0.7kg-30kg/㎡ Thickness: 0.3mm-8mm
Process: Cutting, Punching Surface Treatment: Hot Dipped Galvanized, Powder Coated
Product Name: Expanded Aluminium/ Stainless Steel Sheet Usage: Construction,building Facade,guard, Filter Net
Technique: Perforated Certificate: ISO2015:9001
Size: Customized Place Of Origin: Hebei,Province
High Light:

4ft x 8ft aluminum expanded sheet

,

8mm aluminum expanded sheet

,

4ft x 8ft expanded metal diamond mesh

4ft x 8ft Diamond Hole Aluminum Perforated Expanded Sheet For Security Wall

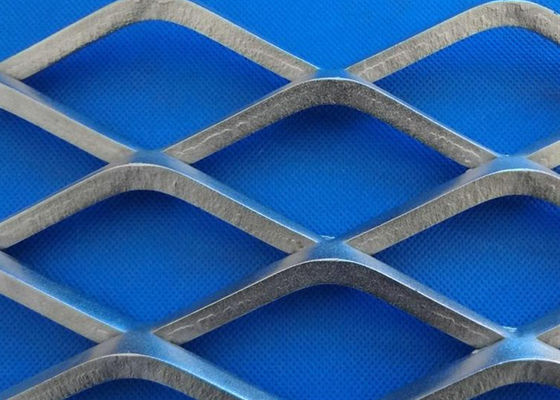

Product Description of Expanded Metal Sheet



Expanded metal steel series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net. Network can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways. Also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, safe passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!



Specification of Expanded Metal Sheet

L.W.M.
S.W.M.
Strand Width
Strand Gauge
Approx. Kg/M2
6.05
3.38
0.8
0.5
2.1
10.24
5.84
0.8
0.5
1.2
10.24
5.84
1.2
0.9
3.2
14.27
5.84
1.2
0.9
3.2
19.05
7.42
1.2
0.9
3.4
5.8
3.5
0.8
0.6
2.1
19
7.4
1.7
1.0
3.4
30.5
11.7
2.4
1.6
4.9
30.5
11.7
2.4
1.2
3.8
38
16.5
2.2
1.6
3.4
50.8
22.5
2.5
2.5
4.4
50.8
22.5
3
1.6
3.4
50.8
22.5
3.9
3
8.1
50.8
22.5
3.1
3
6.5
76.2
33.9
3.5
3
4.9
85.7
40.6
3.2
3
3.7
101.6
50.8
5
3
4.7
101.6
50.8
3.4
3
3.1
114.3
39.3
4.6
3
5.4
200
75
6.3
3
3.6



Features of Expanded Metal Mesh



1.Continuity--the mesh is formed from a single piece of metal.

2.Environment friendly--no wasteful of material.

3.High strength--higher strength to weight ration then metal sheet.

4.Adherence--anti slip surface.

5.Good rigidity--premium reinforcement properties.

6.Good conductivity--highly efficient conductor.

7.Good resistance to corrosion.



Surface Treatment of Expanded Metal Mesh



1.PVC coated

2.Powder coated

3.Anodized

4.Paint

5.Fluorocarbon spraying

6.Polishing



Application of Expanded Metal Sheet



1. Expanded metal wire mesh could be civil engineering, building walls, crafts manufacturing, ships, highways, railways, bridges, boilers and other platforms, pedals, and can also be used as reinforcements for cement and light construction materials.

2. Heat dissipation hoods and mechanical transmission protective covers for various vehicles, air compressors, etc., high-end audio speaker mesh covers, filters, air-conditioning equipment, outdoor furniture, mechanical equipment protection, highway guardrails, railway guardrails, building decoration, platform walkways Non-slip etc.

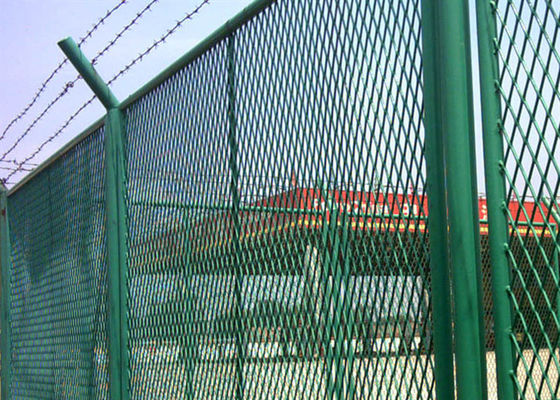

3. Fences for sports venues. Road green belt protection net, municipal engineering protection net.



Package of Expanded Metal Sheet



1. On pallet with waterproof cloth,the biggest width is 1500mm

2. In wooden case with waterproof paper

3. In carton box

4. In roll with woven bag,the biggest width is 3000mm

5. In bulk or In bundle
