Product Details:
Payment & Shipping Terms:
|
Material: | Black Sheet/stainless Steel/ Aluminium | Hole Shape: | Diamond / Hexagonal |
---|---|---|---|
LWD: | 25mm-100mm | SWD: | 10mm-50mm |
Weight: | 0.7kg-30kg/㎡ | Thickness: | 0.3mm-8mm |
Process: | Cutting, Punching | Surface Treatment: | Hot Dipped Galvanized, Powder Coated |
Product Name: | Expanded Aluminium/ Stainless Steel Sheet | Usage: | Construction,building Facade,guard, Filter Net |
Place Of Origin: | Hebei Province,China | Certification: | ISO9001:2015 |
Highlight: | cladding expanded metal wire mesh,pvc coated expanded metal wire mesh,0.3mm flattened expanded metal mesh |

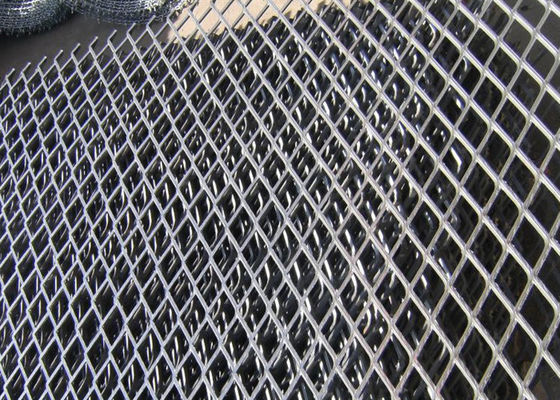

PVC Coated Decorative Screen Expanded Diamond Mesh Metal For Cladding
Product Description of Expanded Metal Sheet
Expanded metal sheets are created by slitting and cold-forming metal as it expands in a press. This process creates diamond-shaped openings that are nominally measured the long way of the diamond (LWD) and the short way of the diamond (SWD). Raised, or standard, expanded sheets offer a skid-resistant surface and a high strength-to-weight ratio. Flat expanded sheets have been rolled for a smooth, level surface. Expanded metal sheets are measured by the percentage of open area, which is the ratio of open space to total space in a given area. A sheet with a larger percentage of open area contains less material than one with a smaller percentage.
Specification of expanded metal sheet | |||||||
Item | Strand | Design sizes | Opening sizes |
Open area (%) |
|||
Thickness (Inch) |
Width (Inch) |
LWD (Inch) |
SWD (Inch) |
LWO (Inch) |
SWO (Inch) |
||
01 | 0.134 | 0.150 | 2.00 | 0.923 | 1.562 | 0.675 | 67 |
02 | 0.092 | 0.144 | 2.00 | 0.923 | 1.625 | 0.718 | 69 |
03 | 0.090 | 0.096 | 2.00 | 0.923 | 1.688 | 0.76 | 79 |
04 | 0.060 | 0.101 | 2.00 | 0.923 | 1.75 | 0.783 | 78 |
05 | 0.090 | 0.096 | 1.20 | 0.500 | 0.938 | 0.337 | 62 |
06 | 0.060 | 0.087 | 1.20 | 0.500 | 0.938 | 0.372 | 65 |
07 | 0.048 | 0.088 | 1.20 | 0.500 | 0.938 | 0.382 | 65 |
08 | 0.036 | 0.072 | 1.00 | 0.500 | 0.718 | 0.407 | 71 |
09 | 0.048 | 0.072 | 1.00 | 0.250 | 0.718 | 0.146 | 42 |
10 | 0.036 | 0.072 | 1.00 | 0.250 | 0.718 | 0.157 | 42 |
Features of Expanded Metal Mesh
1)Strong and durable, with Elegant appearance
2)Easy maintenance, high visibility.
3)Antioxidant and corrosion resistant, long lifetime.
4)Convenient installation, and not easy to be damaged.
5)Environmental protection product, can be recycled.
Application of Expanded Metal Sheet
1. Expanded metal wire mesh could be civil engineering, building walls, crafts manufacturing, ships, highways, railways, bridges, boilers and other platforms, pedals, and can also be used as reinforcements for cement and light construction materials.
2. Heat dissipation hoods and mechanical transmission protective covers for various vehicles, air compressors, etc., high-end audio speaker mesh covers, filters, air-conditioning equipment, outdoor furniture, mechanical equipment protection, highway guardrails, railway guardrails, building decoration, platform walkways Non-slip etc.
3. Fences for sports venues. Road green belt protection net, municipal engineering protection net.
Package of Expanded Metal Sheet
1. On pallet with waterproof cloth,the biggest width is 1500mm
2. In wooden case with waterproof paper
3. In carton box

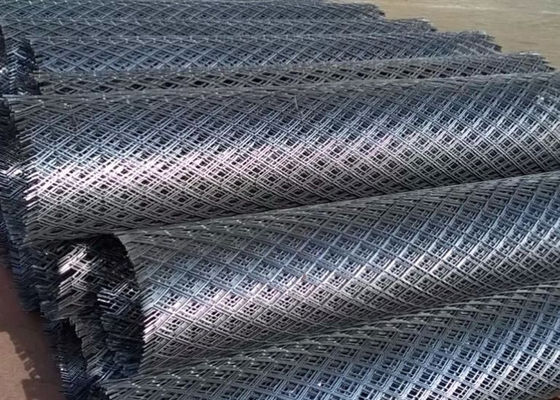

4. In roll with woven bag,the biggest width is 3000mm
5. In bulk or In bundle
