Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness

Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness
Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness

Large Image :  Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 50 Square Meters
Price: Negotiable
Packaging Details: palletized or loose load in the container
Delivery Time: 3-8 days
Payment Terms: T/T
Supply Ability: 100000 Square Meters per Week
Detailed Product Description
Material: Stainless Steel Plate , Aluminium Plate,common Carbon Plate LWD: 25mm-100mm
SWD: 10mm-50mm Weight: 0.7kg-30kg/㎡
Thickness: 0.3mm-8mm Process: Cutting, Punching
Surface Treatment: Hot Dipped Galvanized, Powder Coated Usage: Construction,building Facade,guard, Filter Net
Technique: Perforated Certificate: ISO2015:9001
Size: Customized Place Of Origin: Hebei,Province
High Light:

1.22 x 2.44m expanded mesh grating

,

3.0mm thickness expanded mesh grating

,

flattened aluminium diamond mesh sheet

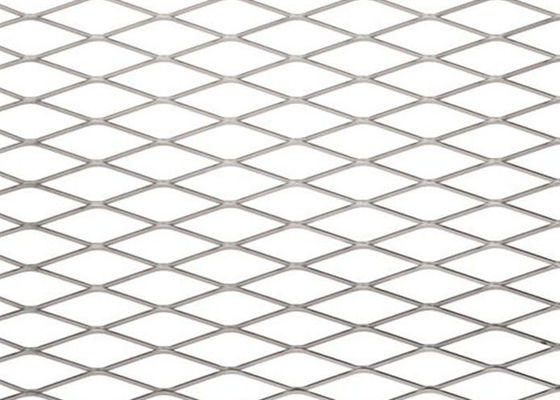

Expanded Metal Diamond Mesh Flattened Sheet 1.22 x 2.44m 3.0mm Thickness





Product Description of Expanded Metal Sheet



Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.



Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.



Expanded metal steel series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net. Network can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways. Also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, safe passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!



Surface Treatment



Electric Galvanized, Hot dipped galvanized , Plastic painting, PVC coated



Specification of Expanded Metal Sheet

L.W.M.
S.W.M.
Strand Width
Strand Gauge
Approx. Kg/M2
6.05
3.38
0.8
0.5
2.1
10.24
5.84
0.8
0.5
1.2
10.24
5.84
1.2
0.9
3.2
14.27
5.84
1.2
0.9
3.2
19.05
7.42
1.2
0.9
3.4
5.8
3.5
0.8
0.6
2.1
19
7.4
1.7
1.0
3.4
30.5
11.7
2.4
1.6
4.9
30.5
11.7
2.4
1.2
3.8
38
16.5
2.2
1.6
3.4
50.8
22.5
2.5
2.5
4.4
50.8
22.5
3
1.6
3.4
50.8
22.5
3.9
3
8.1
50.8
22.5
3.1
3
6.5
76.2
33.9
3.5
3
4.9
85.7
40.6
3.2
3
3.7
101.6
50.8
5
3
4.7
101.6
50.8
3.4
3
3.1
114.3
39.3
4.6
3
5.4
200
75
6.3
3
3.6



Features of Expanded Metal Mesh



1.Continuity--the mesh is formed from a single piece of metal.

2.Environment friendly--no wasteful of material.

3.High strength--higher strength to weight ration then metal sheet.

4.Adherence--anti slip surface.

5.Good rigidity--premium reinforcement properties.

6.Good conductivity--highly efficient conductor.

7.Good resistance to corrosion.



Application of Expanded Metal Sheet



Expanded metal mesh has a wide range of uses, graceful shapes , strong processing capability. A major advantage of expanded is that the mesh is formed from a single piece of material and the process is not wasteful and therefore cost effective.

Main use: metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children’s seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.

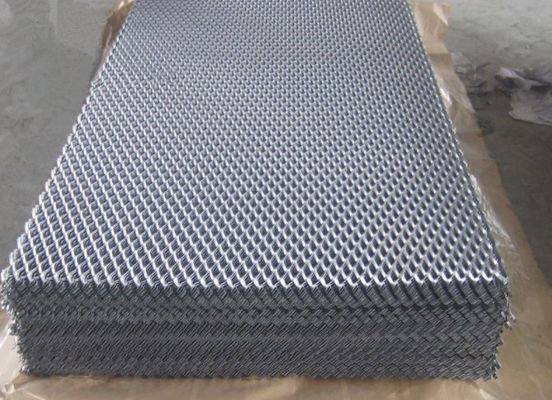

Package of Expanded Metal Sheet



1. On pallet with waterproof cloth,the biggest width is 1500mm

2. In wooden case with waterproof paper

3. In carton box

4. In roll with woven bag,the biggest width is 3000mm

5. In bulk or In bundle



Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness 0



Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness 1



Flattened Diamond Sheet 1.22 X 2.44m Expanded Mesh Grating 3.0mm Thickness 2
