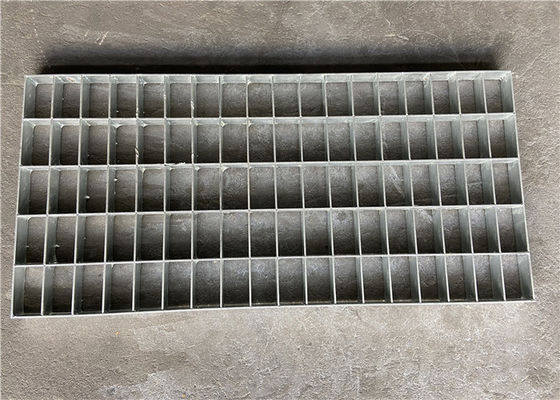

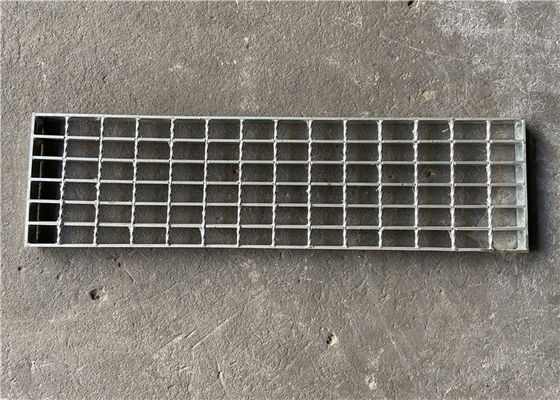

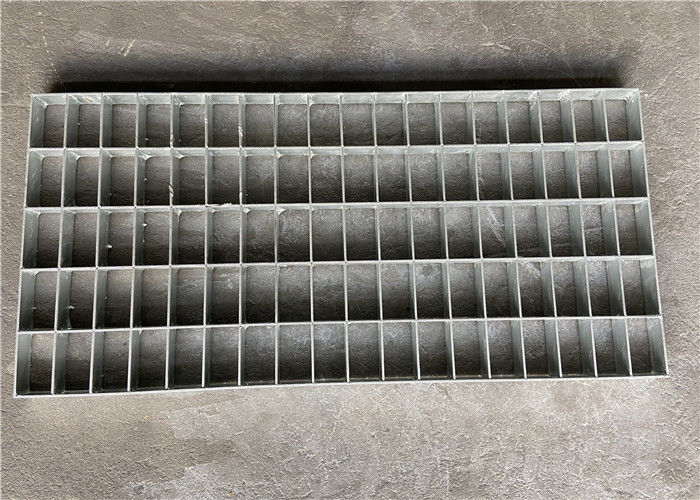

Hot Dipped Galvanized Steel Grating For Industry Platform / Walkway 32*5mm
Description of Steel Grating Walkway
Materials: mild steel or stainless steel.
Surface treatment: untreated, painting or hot dip galvanizing.
Bearing bar specification:20*3 to 100*6
Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended
Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.
The Maximun length of black panel is 7350mm.
Advantage of Steel Grating Walkway
- Light weight
- great load-bearing capacity
- non-slip and e
- easy installation
- material-economic
- sturdy and durable
- ventilated, easy to clean and attractive appearance.
Surgface Treatment of Steel Grating Walkway
Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.
Specifications of Steel Grating Walkway
The steel bar size and specification ,please check the following table:
Steel Gratings Specifications
|
|
Item
|
Description
|
|
Materials
|
Q235 / Stainless Steel / Aluminium
|
|
Material standard
|
Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A)
|
|
Type
|
Welded steel grating, pressure-locked, socket-welding
|
|
Bearing bar
|
20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50...75x8mm, etc.
|
|
|
F- Plain style
|
|
S-Serrated style (tooth-like)
|
|
I- I-section style
|
|
Beraing Bar Pitch
|
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
|
|
Cross Bar
|
5x5, 6x6, 8x8mm (twisted bar or round bar)
|
|
Cross bar pitch
|
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirement.
|
|
Surface Treatment
|
Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers' requirement.
|
|
|
CN: GB/T13912
|
|
US: ASTM (A123)
|
|
UK: BS729
|
|
|
China: YB/T 4001.1-2007
|
|
USA: ANSI/NAAMM(MBG531-88)
|
|
UK: BS4592-1987
|
|
Australia: AS 1657-1988
|
|
Japan: JJS
|
Application of Steel Grating Walkway
steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :
1 Power plant
2 Chemical plant
3 Oil Refinery
4 Steel plant
5 Machinery plant
6 Paper-making factory
7 Cement plant
8 Civil engineering
9 Wastewater treatment
10 Pharmacy industry
11 Food processing
