| Material: | Low Carbon Steel, Stainless Steel | Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Shape: | Square / Rectangular | Surface Treatment: | Hot Dipped Galvanized |
| Usage: | Platform , Driveway, Industry Platform ,building | Product Name: | Galvanized 32*5mm Steel Walkway Grating |
| Type: | Flat Steel Bar ,serrated Steel Bar | Certificate: | ISO9001:2015 |
| Sizes: | Customized | Package: | By Steel Pallet |
| High Light: | 0.8mm steel walkway grating,serrated type steel walkway grating,serrated metal walkway mesh |
||
Low Carbon Steel Plain / Serrated Type Warkway Flooring Grating For Building

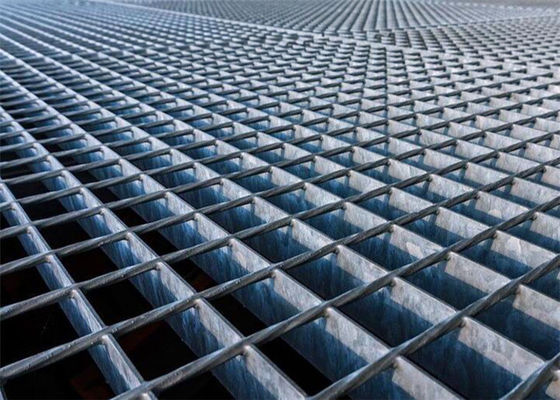

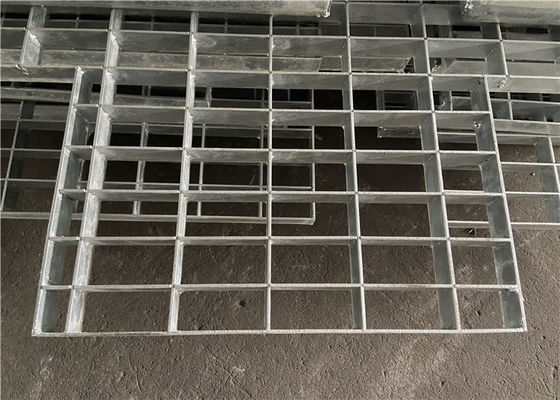

Description of Steel Grating Walkway
Steel grating is basically consist of Bearing bar and Cross bar by automatic press welding machine.Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental
sanitation engineering fields of the platform, footpath, manhole cover, ladders, fences, guardrail etc.
It goes through cutting, opening, edging and other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties.
1)Raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
Advantage of Steel Grating Walkway
-No corrosion traps around joints
-High strength to weight ratio
-Allows shaping without loss of strength
-Available plain or serrated
-Allows passage of heat, light, water and ice.
Surgface Treatment of Steel Grating Walkway
Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.
Specifications of Steel Grating Walkway
The steel bar size and specification ,please check the following table:
Specification of galvanized steel gratingsteel walkway and floor Steel grid plate and Steel frame lattice in metal building materials |
|
| Type | Welded steel grating, pressure locked, socket welding |
| Material | Low carbon steel, stainless steel, aluminum |
| Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| Bearing bar pitch(center to center) | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.or accord to the client’s request |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
| Flat bar type | Plain, Serrated (tooth-like), |
Application of Steel Grating Walkway
Steel grating has been widely Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
