Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant

Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant
Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant

Large Image :  Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G1
Payment & Shipping Terms:
Minimum Order Quantity: 1000Square Meters
Price: Negotiable
Packaging Details: 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability: 100000Square Meters Per Month
Detailed Product Description
Material: Low Carbon Steel, Stainless Steel Thickness: 0.3-0.8mm
Shape: Square / Rectangular Surface Treatment: Hot Dipped Galvanized
Usage: Platform , Driveway, Industry Platform ,building Product Name: Galvanized 30*3mm Steel Walkway Grating
Type: Flat Steel Bar ,serrated Steel Bar Package: By Steel Pallet
Brand Name: Yuanhai Feature: 7. Ventilated, Easy To Clean And Attractive Appearance.
High Light:

0.3mm walkway steel grating

,

presslocked walkway steel grating

,

galvanized press locked steel grating

Galvanized Press Locked Welded Steel Grating Walkway For Machinery Plant





Description of Steel Grating Walkway



We are specialized in manufacturing and exports various kinds of heavey duty hot dipped galvanized Steel Grating.Our high grade Steel grating has been sold to over 80 countries and regions in Europe,America,Africa,

Middle East and Asia.Following ISO 9001 standards strictly and paying attention to prestige and contracts, so we can guarantee the superior quality with quite competitive price.

Materials: mild steel or stainless steel.

Surface treatment: untreated, painting or hot dip galvanizing.

Bearing bar specification:20*3 to 100*6

Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended

Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.

The Maximun length of black panel is 7350mm.



Advantage of Steel Grating Walkway

  1. Light weight
  2. great load-bearing capacity
  3. non-slip and safe
  4. easy installation
  5. material-economic
  6.  sturdy and durable
  7.  ventilated, easy to clean and attractive appearance.
  8.  No corrosion traps around joints
  9. High strength to weight ratio
  10. Allows shaping without loss of strength
  11. Available plain or serrated
  12. 12.Allows passage of heat, light, water and ice.

Surgface Treatment of Steel Grating Walkway


Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.



Specifications of Steel Grating Walkway



The steel bar size and specification ,please check the following table:



Steel Gratings Specifications
Item
Description
Materials
Q235 / Stainless Steel / Aluminium
Material standard
Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A)
Type
Welded steel grating, pressure-locked, socket-welding
Bearing bar
20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50...75x8mm, etc.

Bearing Bar's Type
F- Plain style
S-Serrated style (tooth-like)
I- I-section style
Beraing Bar Pitch
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
Cross Bar
5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirement.
Surface Treatment
Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers' requirement.

Galvanizing standard
CN: GB/T13912
US: ASTM (A123)
UK: BS729



Standards
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS 1657-1988
Japan: JJS


Application of Steel Grating Walkway



Steel grating has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor ,railway bridge service, high tower platform, the drain cover, manhole covers, road barrier ,three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway ,rail barrier ,etc.



Surface: there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

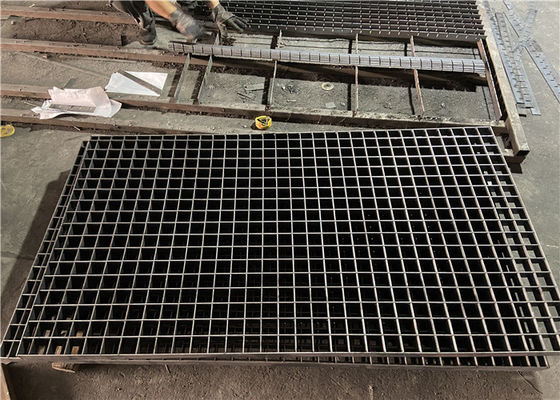

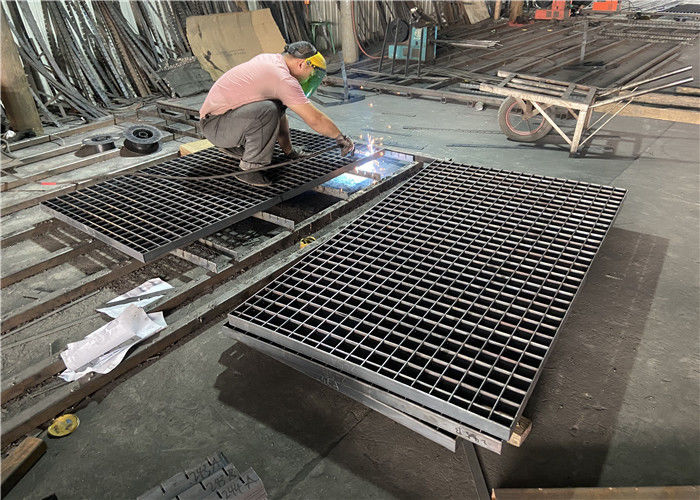

Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant 0



Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant 1



Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant 2



Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant 3



Galvanized Press Locked Welded 0.3mm Walkway Steel Grating For Machinery Plant 4
