Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire, Low Carbon Steel Q195 | Blade Type: | CBT--65;BTO-22;BTO-28;BTO-30; |
|---|---|---|---|
| Surface Treatment: | Galvanized/PVC Coated | Zinc Coated: | Galvanized Wire:8-60g/m2;Blade:40-60g/m2 |
| Razor Thickness: | 0.45±0.05mm | Razor Barb Length: | 22±1mm |
| Razor Barb Spacing: | 34±1mm | Use: | Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc |
| Certification: | ISO9001:2015 | Place Of Origin: | Hebei Province,China |
| High Light: | cbt-65 type security razor wire,military conductive security razor wire,900mm coiled razor wire |
||

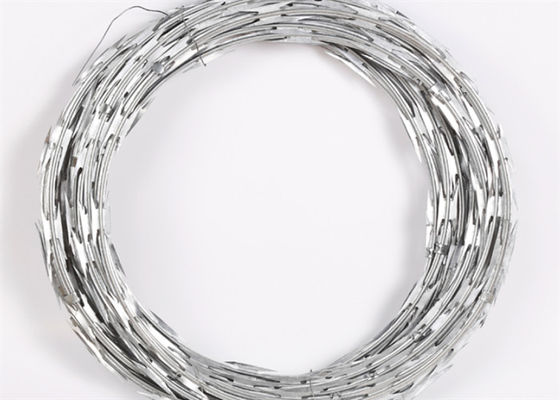

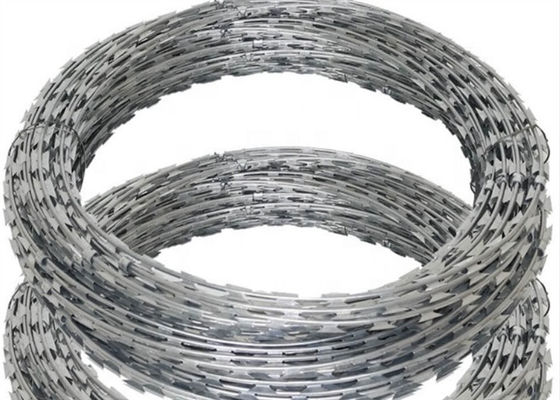

Galvanized Military Conductive Razor Barbed Wire 900mm Coil Thermal CBT-65 Type
Product Description of Razor Barbed Wire
1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / ElectroGalvanized sheet Hot Dipped Galvanized Wire
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3. Razor Loop Diameter: 600mm
Other Coil diameter for u choose: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)
Blade Style of Razor Barbed Wire
Specification
| Reference Number | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
|
Outside Diameter
|
No.of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450 mm
|
33
|
8m
|
CBT-65
|
Single coil
|
|
500 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
700 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
960 mm
|
53
|
13m
|
CBT-65
|
Single coil
|
|
500 mm
|
102
|
16m
|
BTO-10.15.22
|
Cross type
|
|
600 mm
|
86
|
14m
|
BTO-10.15.22
|
Cross type
|
|
700 mm
|
72
|
12m
|
BTO-10.15.22
|
Cross type
|
|
800 mm
|
64
|
10m
|
BTO-10.15.22
|
Cross type
|
|
960 mm
|
52
|
9m
|
BTO-10.15.22
|
Cross type
|
Advantages of Razor Barbed Wire
1.Anti Theft
2.Anti Climb
3.Preservative
4.High Temperature Resistance
5.Easy to Install
6.Defense Invasion
Packing and Shipping of Razor Barbed Wire
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
Application of Razor Barbed Wire
Once invented in history, barbed wire has been widely used in military and defense projects; now in the peaceful era, barbed wire is alternately used in machinery, electronics, pharmaceuticals, petrochemicals, glass, food drying, plastics, paper, chemical fiber, picture tubes and other industries.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.
Packing & Delivery of Razor Barbed Wire
We use 3 common packages or as customer's request.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
