Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape

Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape
Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape

Large Image :  Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape

Product Details:
Place of Origin: AnPing,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH005
Payment & Shipping Terms:
Minimum Order Quantity: 50rolls
Price: Negotiable
Packaging Details: Waterproof paper or as customer's request
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 20000 Roll/Rolls per Month
Detailed Product Description
Material: Iron Wire, Low Carbon Steel Q195 Blade Type: CBT--65;BTO-22;BTO-28;BTO-30;
Surface Treatment: Hot Dip Galvanized/PVC Coated Zinc Coated: Galvanized Wire:8-60g/m2;Blade:40-60g/m2
Razor Thickness: 0.45±0.05mm Razor Barb Length: 22±1mm
Razor Barb Spacing: 34±1mm Razor Type: Cross Type
Certification: ISO9001:2015 Place Of Origin: Hebei Province,China
Package: Inner Waterproof Paper With Woven Bag Outside Usage: Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc
High Light:

bto-30 concertina barbed tape

,

coil diameter 450mm concertina barbed tape

,

coil diameter 450mm galvanized razor wire

Galvanized Razor Barbed Wire Mesh Welded Razor Fence With Coil Diameter 450mm




Product Description of Razor Barbed Wire

  • Razor wire coils, helical or concertina available in galvanized steel or SS grades
  • Razor wire is also named concertina coils or razor type barbed wire
  • It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dip galvanized steel sheets or stainless steel sheets
  • With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties
  • Razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security
  • Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.

Blade Style of Razor Barbed Wire

Specification



Reference Number Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1



Advantages of Razor Barbed Wire



High security
Barbed razor wire with the sharp razor guarantees a high quality whilst retaining high security.

Long life
Razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance.

Easy installation
Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security.



Packing and Shipping of Razor Barbed Wire



1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.

2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27tons


Meters of per coil Razor Barbed Wire



Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:
1. 600mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 8-10m
2. 600mmx10kg/roll
Cover length is 15cm between each loop, then 10kg can get 4-6m


Application of Razor Barbed Wire



Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.Also used for division of railway, highway, agricultural fencing, etc.
Razor wire also can be used in conjunction with an existing wall or fence, or even installed as a barrier on its own, to create an effective security perimeter.

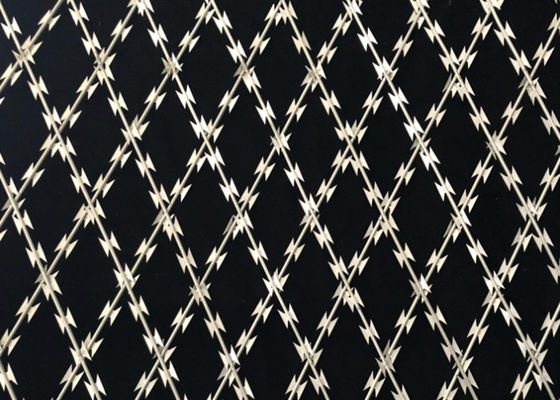

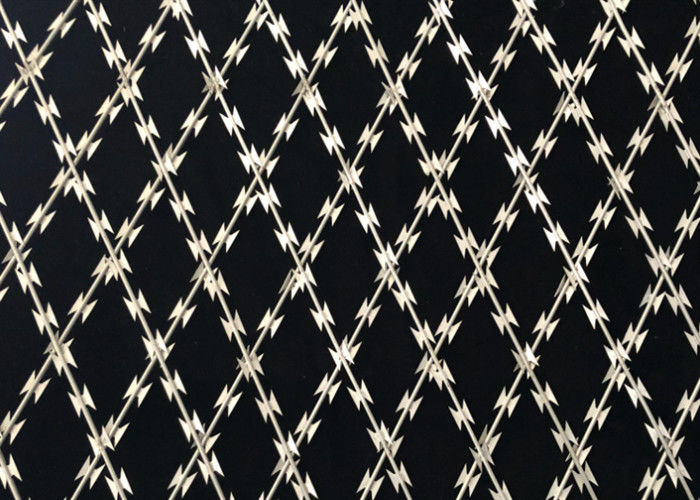

Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 0



Details of CBT-65





Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 1

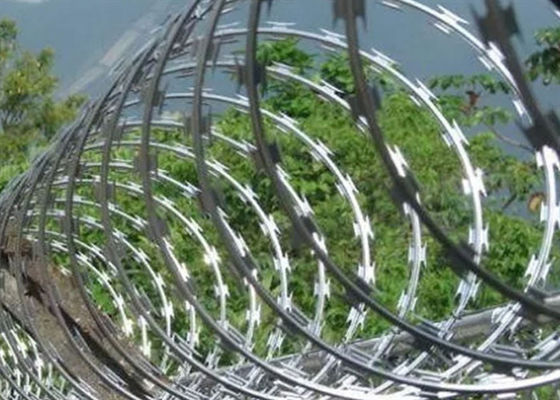

Images of Razor Barbed Fence



Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 2Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 3



Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 4



Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 5



Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 6


Packing & Delivery of Razor Barbed Wire


Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 7



Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 8

We use 3 common packages or as customer's request.

Bto-30 Galvanized Coil Diameter 450mm Concertina Barbed Tape 9



Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
