Material: | Iron Wire, Low Carbon Steel Q195 | Blade Type: | CBT--65;BTO-22;BTO-28;BTO-30; |
---|---|---|---|
Surface Treatment: | Galvanized/PVC Coated | Zinc Coated: | Galvanized Wire:8-60g/m2;Blade:40-60g/m2 |
Razor Thickness: | 0.45±0.05mm | Razor Barb Length: | 22±1mm |
Razor Barb Spacing: | 34±1mm | Barb Distance: | 7.5-15cm |
Certification: | ISO9001:2015 | Place Of Origin: | Hebei Province,China |
Packing: | Waterproof Paper +Woven Bags | Usage: | Protecting Buliding;Grass Boundary,Railway |
Outside Diameter: | 50-1250mm | Blade Type: | Cross Type |
Highlight: | hdg razor blade barbed wire,cbt-65 razor blade barbed wire,cbt-65 razor blade fencing wire |

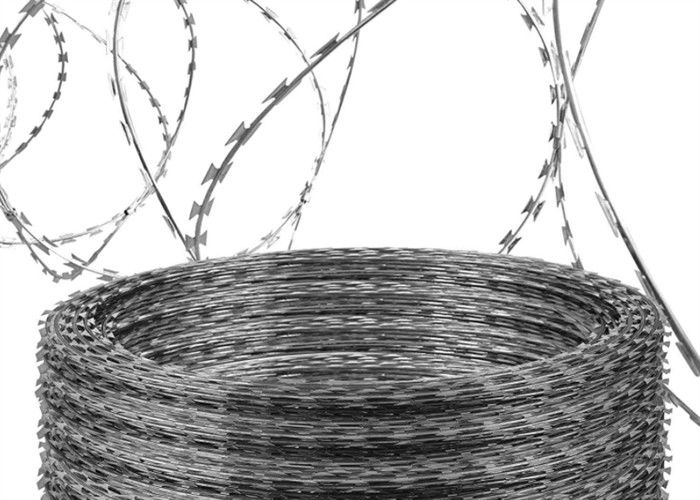

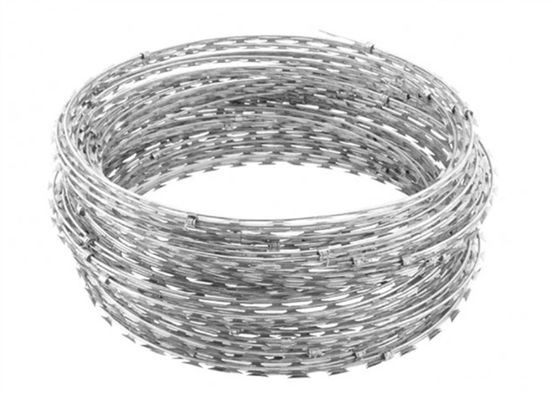

Military Razor Barbed Wire Sharp Razor Barbed Wire Fence CBT-65 For Barrier
Product Description of Razor Barbed Wire
Blade Style of Razor Barbed Wire
Reference Number | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
Outside Diameter
|
No.of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
450 mm
|
33
|
8m
|
CBT-65
|
Single coil
|
500 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
700 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
960 mm
|
53
|
13m
|
CBT-65
|
Single coil
|
500 mm
|
102
|
16m
|
BTO-10.15.22
|
Cross type
|
600 mm
|
86
|
14m
|
BTO-10.15.22
|
Cross type
|
700 mm
|
72
|
12m
|
BTO-10.15.22
|
Cross type
|
800 mm
|
64
|
10m
|
BTO-10.15.22
|
Cross type
|
960 mm
|
52
|
9m
|
BTO-10.15.22
|
Cross type
|
Advantages of Razor Barbed Wire
High security
Barbed razor wire with the sharp razor guarantees a high quality whilst retaining high security.
Long life
Razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance.
Easy installation
Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security.
Meters of per coil Razor Barbed Wire
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:
1. 600mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 8-10m
2. 600mmx10kg/roll
Cover length is 15cm between each loop, then 10kg can get 4-6m
Packing and Shipping of Razor Barbed Wire
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
Application of Razor Barbed Wire
Once invented in history, barbed wire has been widely used in military and defense projects; now in the peaceful era, barbed wire is alternately used in machinery, electronics, pharmaceuticals, petrochemicals, glass, food drying, plastics, paper, chemical fiber, picture tubes and other industries.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.
Packing & Delivery of Razor Barbed Wire
We use 3 common packages or as customer's request.
