| Material: | Iron Wire, Low Carbon Steel Q195 | Blade Type: | CBT--65;BTO-22;BTO-28;BTO-30; |
|---|---|---|---|
| Surface Treatment: | Galvanized/PVC Coated | Zinc Coated: | Galvanized Wire:8-60g/m2;Blade:40-60g/m2 |
| Razor Thickness: | 0.45±0.05mm | Razor Barb Length: | 22±1mm |
| Razor Barb Spacing: | 34±1mm | Package: | Inner Waterproof Paper With Woven Bag Outside |
| Use: | Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc | Certification: | ISO9001:2015 |
| Brand Name: | Yuanhai | Place Of Origin: | Hebei Province,China |
| High Light: | bto-28 razor barbed wire,hot dipped galvanized razor barbed wire,bto-28 razor blade fencing wire |
||

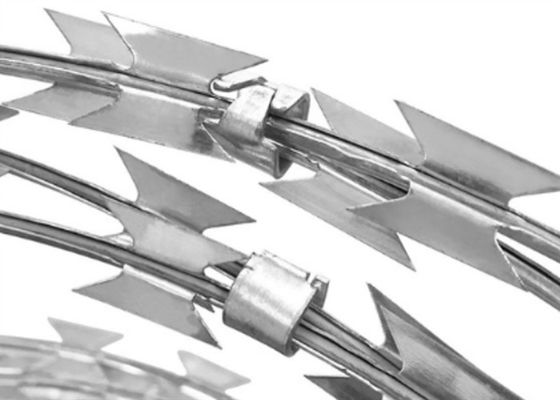

Hot Dipped Galvanized Razor Barbed Wire Cross Style Concertina Wire Fence Mesh
Product Description of Razor Barbed Wire
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Meters of per coil Razor Barbed Wire
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:
1. 600mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 8-10m
2. 600mmx10kg/roll
Cover length is 15cm between each loop, then 10kg can get 4-6m

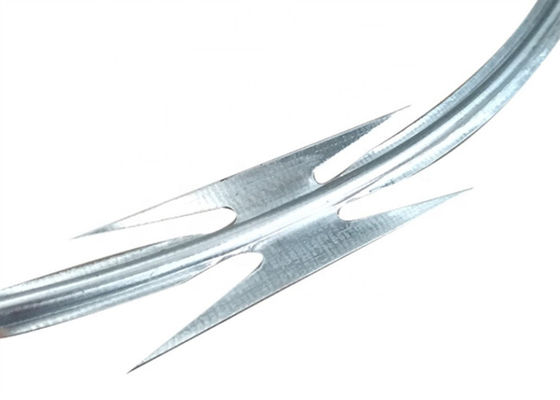

Blade Style of Razor Barbed Wire
Specification
| Reference Number | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
|
Outside Diameter
|
No.of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450 mm
|
33
|
8m
|
CBT-65
|
Single coil
|
|
500 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
700 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
960 mm
|
53
|
13m
|
CBT-65
|
Single coil
|
|
500 mm
|
102
|
16m
|
BTO-10.15.22
|
Cross type
|
|
600 mm
|
86
|
14m
|
BTO-10.15.22
|
Cross type
|
|
700 mm
|
72
|
12m
|
BTO-10.15.22
|
Cross type
|
|
800 mm
|
64
|
10m
|
BTO-10.15.22
|
Cross type
|
|
960 mm
|
52
|
9m
|
BTO-10.15.22
|
Cross type
|
Surface Treatment of Razor Barbed Wire
Packing and Shipping of Razor Barbed Wire
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
Application of Razor Barbed Wire
Currently, razor barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, razor barbed wire has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Packing & Delivery of Razor Barbed Wire
We use 3 common packages or as customer's request.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
