Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire, Low Carbon Steel Q195 | Blade Type: | CBT--65;BTO-22;BTO-28;BTO-30; |
|---|---|---|---|
| Surface Treatment: | Galvanized/PVC Coated | Zinc Coated: | Galvanized Wire:8-60g/m2;Blade:40-60g/m2 |
| Razor Thickness: | 0.45±0.05mm | Razor Barb Length: | 22±1mm |
| Razor Barb Spacing: | 34±1mm | Use: | Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc |
| Certification: | ISO9001:2015 | Place Of Origin: | Hebei Province,China |
| Circles: | 33-102 | Outside Diameter: | 50mm-1250mm |
| Sample: | For Free | Brand Name: | Yuanhai |
| High Light: | 35 loops razor barbed wire,500mm razor barbed wire,razor barbed wire hot dipped galvanized |
||
Hot-dipped Galvanized Concertina Razor Wire For Security Fence 500mm 35 Loop
Product Description of Razor Barbed Wire
1, Material: Q195 or S.S 304, S.S 316, S.S430 etc...
2, Surface treatment: galvanized or powder coated
3, Razor length: BTO-10 BTO-18 BTO-22 BTO-30 CBT-60 CBT-65 etc...
4, Coil diameter: from 450mm to 950mmfr
5, Clips No. with 3 or 5 clips
6, Length: from 6 m to 16 m
7, Package: water proof paper inside and woven bag outside
8, MOQ: 10 rolls
Razor barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Blade Style of Razor Barbed Wire
Specification
| Reference Number | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
|
Outside Diameter
|
No.of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450 mm
|
33
|
8m
|
CBT-65
|
Single coil
|
|
500 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
700 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
960 mm
|
53
|
13m
|
CBT-65
|
Single coil
|
|
500 mm
|
102
|
16m
|
BTO-10.15.22
|

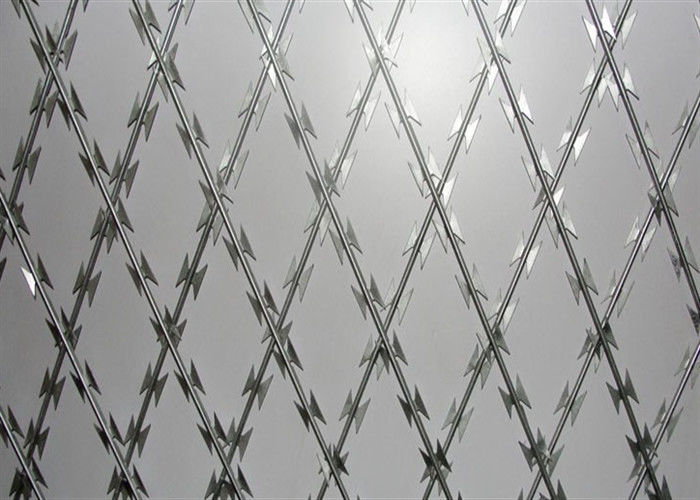

Cross type
|
|
600 mm
|
86
|
14m
|
BTO-10.15.22
|
Cross type
|
|
700 mm
|
72
|
12m
|
BTO-10.15.22
|
Cross type
|
|
800 mm
|
64
|
10m
|
BTO-10.15.22
|
Cross type
|
|
960 mm
|
52
|
9m
|
BTO-10.15.22
|
Cross type
|
Advantages of Razor Barbed Wire
1. Solid simple structure
2. Artistic and practical
3. High strength, quality steel
4. Wide view appearance
5. Easy installation
6. Long lasting

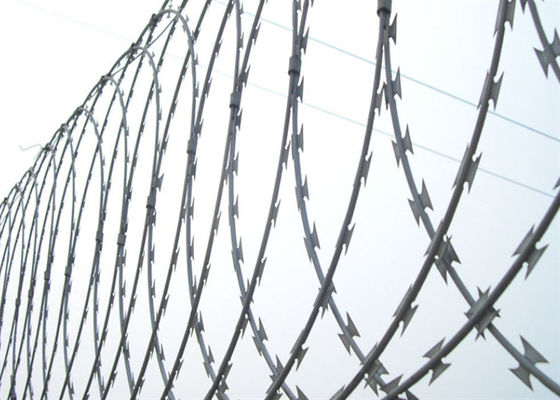

Razor Barb Wire is the best solution. It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals
Packing and Shipping of Razor Barbed Wire
1.compression rolls
2. water-proof paper inside woven bag outside or in carton
3.In pallets
4.as customer request
Application of Razor Barbed Wire
Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.
Packing & Delivery of Razor Barbed Wire
We use 3 common packages or as customer's request.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
