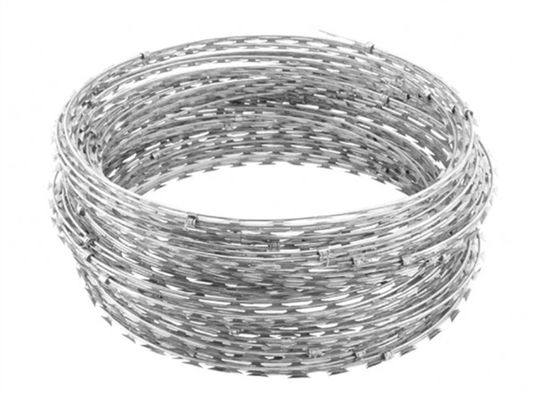

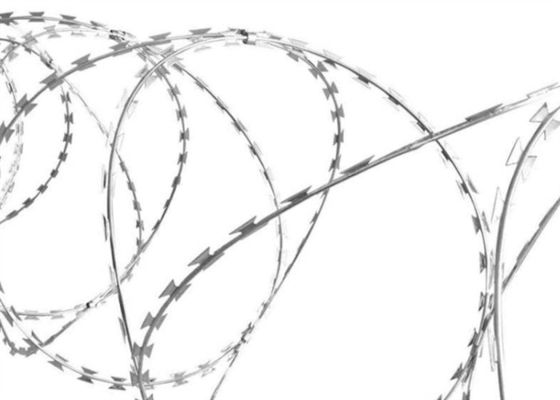

Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area

Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area
Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area

Large Image :  Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area

Product Details:
Place of Origin: AnPing,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH005
Payment & Shipping Terms:
Minimum Order Quantity: 200rolls
Price: Negotiable
Packaging Details: Waterproof paper or as customer's request
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 20000 Roll/Rolls per Month
Detailed Product Description
Material: Iron Wire, Low Carbon Steel Q195 Blade Type: CBT--65;BTO-22;BTO-28;BTO-30;
Surface Treatment: Galvanized/PVC Coated Zinc Coated: Galvanized Wire:8-60g/m2;Blade:40-60g/m2
Razor Thickness: 0.45±0.05mm Razor Barb Length: 22±1mm
Razor Barb Spacing: 34±1mm Use: Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc
Certification: ISO9001:2015 Place Of Origin: Hebei Province,China
Circles: 33-102 Outside Diameter: 50mm-1250mm
Sample: For Free
High Light:

bto-28 concertina razor wire

,

2.5mm concertina razor wire

,

bto-28 concertina barbed wire

Galvanized Welded Razor Wire Mesh Fence BTO-28 2.5mm For High Security Area​




Product Description of Razor Barbed Wire


1, Material: Q195 or S.S 304, S.S 316, S.S430 etc...

2, Surface treatment: galvanized or powder coated

3, Razor length: BTO-10 BTO-18 BTO-22 BTO-30 CBT-60 CBT-65 etc...

4, Coil diameter: from 450mm to 950mmfr

5, Clips No. with 3 or 5 clips

6, Length: from 6 m to 16 m

7, Package: water proof paper inside and woven bag outside

8, MOQ: 10 rolls



Razor barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.



There are three types of blade, i.e. straight line type and cross type.

1. There is no need to clamp the spiral cross blade gill rope. When connecting two blade gill nets, stainless steel sheet or galvanized steel sheet is usually used to clamp them together. When the blade thorn rope is unfolded, it will be in fork shape, which is beautiful and practical.

2. The straight blade thorn rope needs to straighten the spiral blade thorn rope before it can be used. There are many kinds of erection methods to choose from, and the construction speed is relatively fast, which can achieve the protection effect, at the same time, it can also save the cost.

3. The cross blade barbed rope is used in the middle of two blade barbed nets, and is connected by stainless steel card buckle and galvanized card buckle, which can be made into cross shape with different diameters. It is suitable for high wall or enclosure, and can play a good protective role.



According to different installation methods, blade thorn rope can be divided into: (snake belly type) spiral blade thorn rope, linear blade thorn rope, flat blade thorn rope, blade thorn rope welding net, etc.


Blade Style of Razor Barbed Wire

Specification



Reference Number Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1



Outside Diameter
No.of Loops

Standard Length per Coil
Type
Notes
450 mm
33



8m
CBT-65
Single coil
500 mm
41
10m
CBT-65
Single coil
700 mm
41
10m
CBT-65
Single coil
960 mm
53
13m
CBT-65
Single coil
500 mm
102
16m
BTO-10.15.22
Cross type
600 mm
86
14m
BTO-10.15.22
Cross type
700 mm
72
12m
BTO-10.15.22
Cross type
800 mm
64
10m
BTO-10.15.22
Cross type
960 mm
52
9m
BTO-10.15.22
Cross type



Advantages of Razor Barbed Wire



It is almost impossible to climb.
High-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Extremely simple to install, needs three to four to install molding.



1. Non-climbing;
2. Robust welded structure;
3. Zinc coating improve corrosive resistance;
4. Available in square and diamond profile.


Packing and Shipping of Razor Barbed Wire



1.compression rolls

2. water-proof paper inside woven bag outside or in carton
3.In pallets
4.as customer request

5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27tons


Application of Razor Barbed Wire



Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.



Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area 0



Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area 1



Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area 2







Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area 3


Packing & Delivery of Razor Barbed Wire


Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area 4

We use 3 common packages or as customer's request.



Welded Mesh Fence Bto-28 2.5mm Concertina Razor Wire For High Security Area 5
