Stainless Steel 304 Srubber Tower 50mm Metal Random Packing

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Stainless Steel 304 Srubber Tower 50mm Metal Random Packing

Stainless Steel 304 Srubber Tower 50mm Metal Random Packing
Stainless Steel 304 Srubber Tower 50mm Metal Random Packing Stainless Steel 304 Srubber Tower 50mm Metal Random Packing

Large Image :  Stainless Steel 304 Srubber Tower 50mm Metal Random Packing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Demision: Customized Application: Industry, Adsorption, Scrubbing, Stripping
Product Name: Stainless Steel Metal Raschig Ring Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized
Surface Area: 62 - 346 M2/m3 Bulk Density: 145 - 345 Kg/m3
Feature: Corrosion And Heat Resistance Brand Name: Yuanhai
High Light:

srubber tower metal random packing

,

50mm metal random packing

,

stainless steel 304 pall ring packing

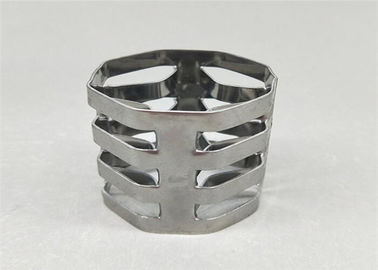

Stainless Steel 304 Metal Random Packing Pall Ring for Srubber Tower Packing​





Product Description of Metal Random Packing



The metal pall ring packing was developed in the 1940s by the German company BASF and is made of sheet metal with a total area of about 35% of the total area of the ring wall.Compared with the same specifications of the raschig ring packing, because of pall ring packing opened many hole in the ring wall, makes the tower of gas and liquid can be free from the window by, so packing layer of gas and liquid distribution than raschig ring packings have greatly improved, its separation performance, help pall ring filler is still currently adopted one of the main ring packing.



Specifications of Metal Random Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



Features of Metal Random Packing



1. High void ratio

2. Low pressure drop

3. Low mass transfer unit weight

4. High flooding point

5. Uniform gas-liquid contact

6. Small specific gravity

7. High efficiency of mass transfer

8. Corrosion and heat resistance

9. Thin Wall



Application of Metal Random Packing



1). Used in Absorption, scrubbing, and stripping services, such as CO2 and H2S selective absorption, air pollution control scrubbers.

2). Heat transfer

3). Liquid-liquid extraction

4). Light ends fractionators







Stainless Steel 304 Srubber Tower 50mm Metal Random Packing 0



Stainless Steel 304 Srubber Tower 50mm Metal Random Packing 1



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Stainless Steel 304 Srubber Tower 50mm Metal Random Packing 2
