Ss304 / Copper Raschig 16mm 25mm Metal Random Packing

Ss304 / Copper Raschig 16mm 25mm Metal Random Packing
Ss304 / Copper Raschig 16mm 25mm Metal Random Packing Ss304 / Copper Raschig 16mm 25mm Metal Random Packing

Large Image :  Ss304 / Copper Raschig 16mm 25mm Metal Random Packing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Raschig Ring
Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized Surface Area: 62 - 346 M2/m3
Bulk Density: 145 - 345 Kg/m3 Feature: Corrosion And Heat Resistance
Brand Name: Yuanhai Certification: ISO9001:2015
Place Of Origin: Hebei,Province MOQ: 1 Cubic Meter
Standard: HG/T 4374-2012 Sample: For Free
High Light:

copper raschig metal random packing

,

25mm metal random packing

,

16mm stainless steel raschig rings

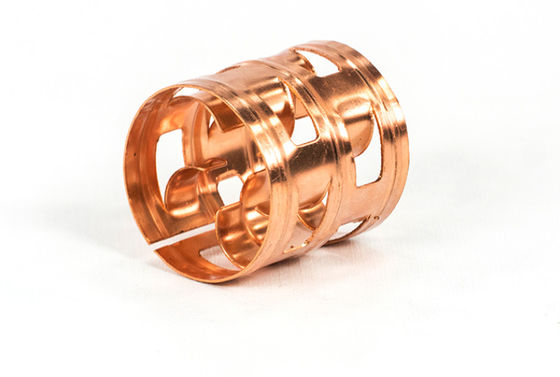

SS304 / Copper Raschig Ring Metal Pall Ring For Random Packing 16mm 25mm





Product Description of Metal Random Packing

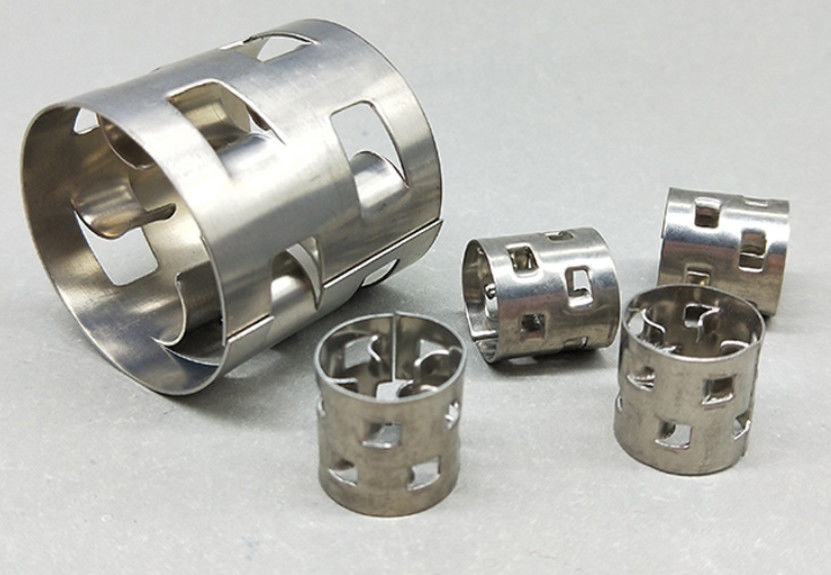

The Metal Pall Ring is one of the metal random packing products. For over fifty years, random packings are effectively used to improve a tower’s performance. The pall ring is considered world’s most common random packing type.



The design of the pall ring is an improvement of the raschig ring. The cylindrical dimensions are equal, however the metal pall ring has two rows of punched and formed fingers facilitating vapor flow, the windows in the cylinder walls allow for higher density and lower pressure drop than standard cylindrical rings. This adjustment provides a significant performance increase, resulting in an improvement of the capacity and efficiency. In addition, this adjusted design leads to reduction of the pressure drop through the column.



Metal Pall Rings are offered in a wide range of sizes and metallurgies. Available materials include carbon steel, stainless steel, inconel, brass, copper and nickel alloys.

1) Lower presure drop.

2) Huge flux.

3) High efficiency.



The following table data is reference to material stainless steel (AISI304) in the material thickness shown.

Other wall thicknesses are available on request.



Specifications of Metal Random Packing



Product Name Eloong Carbon Steel 201/Alloy/SS316/SS410 Random Packing 50mm Metal SS304 Pall Ring For CO2 Absorption
Model ESJ161215D3
Material SS304/304L/316/316L/410/Carbon Steel 201/Alloy
Life Span >3 years

D*H*T

mm

Surface Area

m2/m3

Void Volume

%

Packing Number

pieces/ m3

Packing Density

Kg/m3

Packing Factor

m-1

16*16*0.3 362 94.9 214000 408 299
25*25*0.3 219 905 51940 208 269
38*38*0.4 146 95.9 15180 191 153
50*50*0.5 109 96 6500 191 131
76*76*0.6 71 96.1 1830 153 72
90*90*0.7 85 91 1160 153 14

Advantage 1. High void ratio
2. Low pressure drop
3. Low mass transfer unit weight
4. High flooding point
5. Uniform gas-liquid contact
6. Small specific gravity
7. High efficiency of mass transfer
8. Corrosion and heat resistance
9. Thin Wall

Application 1). Used in Absorption, scrubbing, and stripping services, such as CO2 and H2S selective absorption, air pollution control scrubbers.
2). Heat transfer
3). Liquid-liquid extraction
4). Light ends fractionators



Features of Metal Random Packing



1. Capacity vs Pressure Drop:

• High loading & throughput / low pressure drop;

• Good liquid / gas distribution and high mass transfer efficiency.



2. Versatility:

• Easily wettable;

• High resistance to fouling;

• High Temperature.



3. Mechanical Strength:

• High temperature applications;

• Mechanically robust, lesser probability of breakage, suitable for deeper beds.



By words you may find us:



pall rings;pall rings packing;pall ring packing specification

pall ring hetp;pall rings wiki;pall ring packing hetp

pall rings for sale;pall rings manufacturers;pall ring company

pall ring basket;pall ring packing;pall ring manufacturers

pall ring packing price;pall ring application;pall ring australia



Ss304 / Copper Raschig 16mm 25mm Metal Random Packing 0



Ss304 / Copper Raschig 16mm 25mm Metal Random Packing 1



Ss304 / Copper Raschig 16mm 25mm Metal Random Packing 2



Ss304 / Copper Raschig 16mm 25mm Metal Random Packing 3



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
