Product Details:
Payment & Shipping Terms:
|
| Material: | Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. | Size: | 16mm,25mm,38mm,50mm, 76mm,or Customized |
|---|---|---|---|
| Application: | Industry, Adsorption, Scrubbing, Stripping | Product Name: | Stainless Steel Metal Raschig Ring |
| Package: | Jumbo Bag, Carton Box, Wooden Case, Or Customized | Surface Area: | 62 - 346 M2/m3 |
| Bulk Density: | 145 - 345 Kg/m3 | Feature: | Corrosion And Heat Resistance |
| Certification: | ISO9001:2015 | Place Of Origin: | Hebei,Province |
| MOQ: | 1 Cubic Meter | Standard: | HG/T 4374-2012 |
| Highlight: | 38mm pall ring packing,distillation column stainless steel raschig rings,304 stainless steel raschig rings |
||

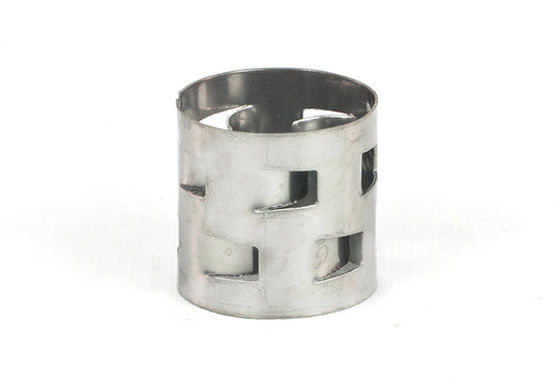

38mm Metal Random Pall Rings 2" 304 SS Distillation Column Pall Ring Packing
Product Description of Metal Random Packing
Metal Pall ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...
Specifications of Metal Random Packing
| Product Name | Eloong Carbon Steel 201/Alloy/SS316/SS410 Random Packing 50mm Metal SS304 Pall Ring For CO2 Absorption | ||||
| Model | ESJ161215D3 | ||||
| Material | SS304/304L/316/316L/410/Carbon Steel 201/Alloy | ||||
| Life Span | >3 years | ||||
|
D*H*T mm |
Surface Area m2/m3 |
Void Volume % |
Packing Number pieces/ m3 |
Packing Density Kg/m3 |
Packing Factor m-1 |
| 16*16*0.3 | 362 | 94.9 | 214000 | 408 | 299 |
| 25*25*0.3 | 219 | 905 | 51940 | 208 | 269 |
| 38*38*0.4 | 146 | 95.9 | 15180 | 191 | 153 |
| 50*50*0.5 | 109 | 96 | 6500 | 191 | 131 |
| 76*76*0.6 | 71 | 96.1 | 1830 | 153 | 72 |
| 90*90*0.7 | 85 | 91 | 1160 | 153 | 14 |
| Advantage | 1. High void ratio | ||||
| 2. Low pressure drop | |||||
| 3. Low mass transfer unit weight | |||||
| 4. High flooding point | |||||
| 5. Uniform gas-liquid contact | |||||
| 6. Small specific gravity | |||||
| 7. High efficiency of mass transfer | |||||
| 8. Corrosion and heat resistance | |||||
| 9. Thin Wall | |||||
| Application | 1). Used in Absorption, scrubbing, and stripping services, such as CO2 and H2S selective absorption, air pollution control scrubbers. | ||||
| 2). Heat transfer | |||||
| 3). Liquid-liquid extraction | |||||
| 4). Light ends fractionators | |||||
Metal Cascade Mini Ring Features
• Thin wall.
• Good fouling resistance.
• Low pressure drop.
• Good heat resistance.
• High mechanical strength.
• Excellent mass transfer performance.
By words you may find us:
pall rings;pall rings packing;pall ring packing specification
pall ring hetp;pall rings wiki;pall ring packing hetp
pall rings for sale;pall rings manufacturers;pall ring company
pall ring basket;pall ring packing;pall ring manufacturers
pall ring packing price;pall ring application;pall ring australia
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
