Product Details:
Payment & Shipping Terms:
|
| Surface Treatment: | Galvanized/PVC Coated/Paint | Feature: | Easily Assembled |
|---|---|---|---|
| Material: | Low Carbon Steel Wire | Wire Diameter: | 8/6/8mm, 6/5/6mm, 5/4/5mm |
| Model: | 656 Twin Wire Fence | Application: | Residential, School, Outdoor, Protecting Mesh, Garden Fence |
| Certification: | ISO9001:2015 | Width: | 0.5-2.5m |
| Height: | 1.0-2.5m | Place Of Origin: | Hebei Province,China |
| PVC Coated Color: | Black,white,green,blue Etc | Packing: | Plastic Film And Metal Pallet |
| Highlight: | 545 twin wire fence,2.5m height twin wire fence,545 horizontal wire fence |
||
PVC Double Loop Wire Fence Horizontal Welded Wire Fence Panels For Security

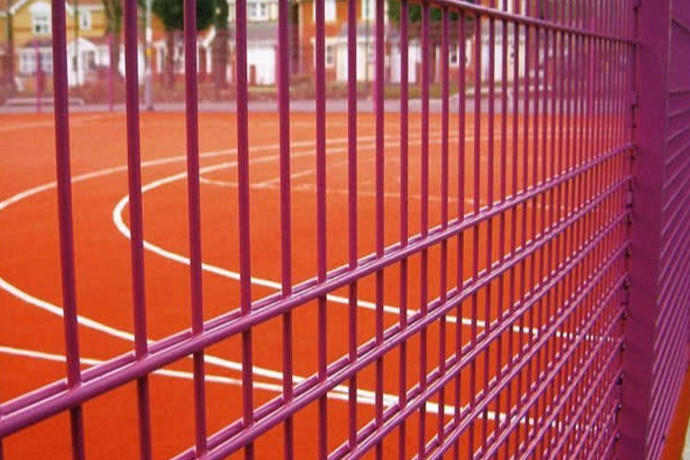

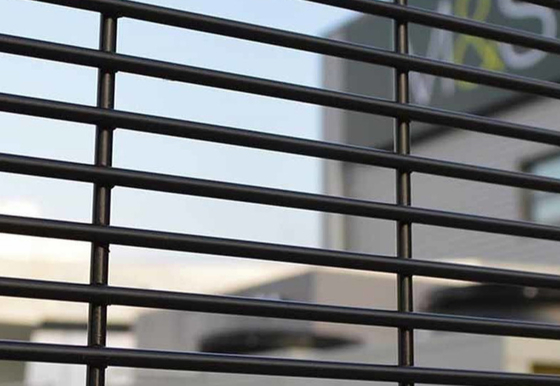

Product Description of Double Loop Wire Fence
Double wire mesh fence is high quality low-carbon steel wire as materials. It have one vertical wire and two horizontal wires. It is stronger than normal welded wire mesh, wire diameter: 6/5/6mm, 8/6/8mm.
Specification of Double Loop Wire Fence
| Wire Dia | Mesh Size | Panel Width | Panel Height | Post Height | Post Model | ||
| burying style | base style | ||||||
| 5/4/5mm; 6/5/6mm; 8/6/8mm; |
50*100mm; 50*200mm; 50*50mm; 55*100mm; 55*200mm; 55*55mm |
1.0-2.5m | 1.03m | 1.4m | 1.2m | Square; Peach; Round swallowtail |
|
| 1.23m | 1.6m | 1.4m | |||||
| 1.53m | 2.0m | 1.7m | |||||
| 1.73m | 2.2m | 1.9m | |||||
| 1.83m | 2.3m | 2.0m | |||||
| 2.03m | 2.5m | 2.2m | |||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
Double Wire Metal Mesh technique specifications
Panel size: 2x2.5mt
Mesh size: 50x200mm
Wire diameter: 4.9mm before process
4 folds in V-form 85mm
Treatment: electro and hot dipped galvanized.
Post: square post 60x60 with 1.5mm wall. 2.5mt long.
Caps: plastic
Clamp: metal clamp includes bolts and screws
Post Specfication
1. Square Post: 50x50mm, 60x60mm, 80x80mm, 100x100mm (thickness 1.5mm, 2mm, 2.5mm)
2. Rectangular post: 40x60mm, 80x60mm, 120*60mm (thickness 1.5mm, 2mm, 2.5mm)
3. Peach Post: 50x70mm,60x90mm,70x100mm (thickness 1.5mm, 2mm, 2.5mm)
Production Process of Double Loop Wire Fence
1.) Steel wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2.) Steel wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3.) Steel wire→Welding→Electric galvanized→Powder coated/PVC coated
4.) Steel wire→Electric galvanized→Welding→Powder coated/PVC coated
Features of Double Loop Wire Fence
Packing
1.) Packing with Plastic Film and metal packing metal belt.
2.) Packing with carton;wooden case;pallet.
3.) According to customers requirement.
Application of Double Loop Wire Fence
It is used for fencing most industrial sites, sporting fields, multi-games area, protection of schools and nurseries, Corporate or college campuses, housing projects, healthcare or research facilities, Airports, parking facilities, commercial and industrial properties, pools, amusement parks, tennis courts, public parks and playgrounds, etc.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
