| Brand Name: | Yuanhai | Material: | Low Carbon Steel Wire |
|---|---|---|---|
| Wire Diameter: | 1.5mm-8.0mm | Surface Treatment: | Hot-dipped/Galvanized Then PVC Coated |
| Commom Height: | 630mm-2430mm | Feature: | Easily Assembled, Sustainable |
| Mesh Hole: | 50*200mm,55*200mm,75*150mm | Color: | Green, Black, Blue, Etc |
| Usage: | Garden Fence, Highway Fence, Sport Fence | Certification: | ISO9001:2015 |
| High Light: | 1.5mm horizontal wire fence,pvc coated green horizontal wire fence,1.5mm double wire fence |
||

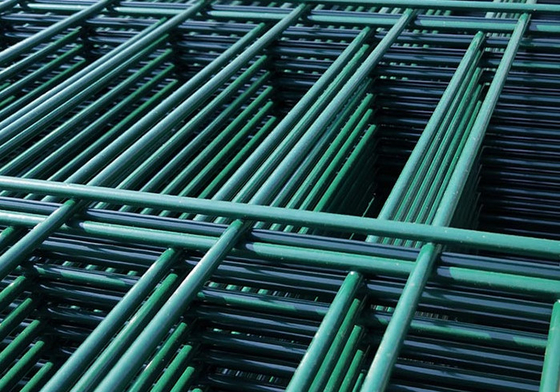

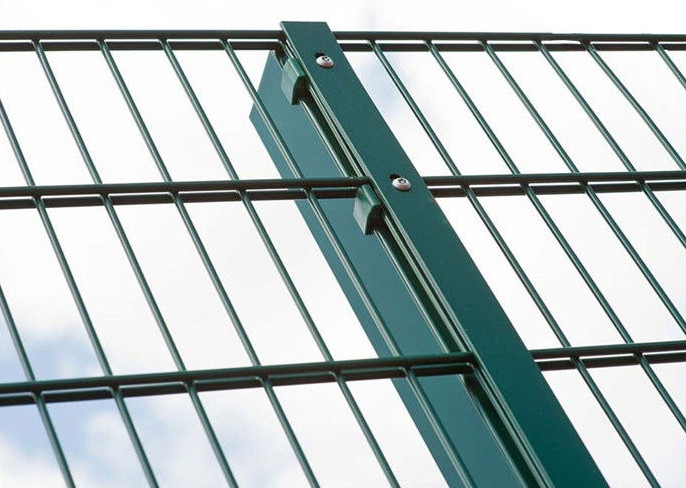

PVC Coated Double Horizontal Wire Fence RAL 6005 Fence For Residential
Product Description of Double Loop Wire Fence
Double wire mesh fence is high quality low-carbon steel wire as materials. It have one vertical wire and two horizontal wires. It is stronger than normal welded wire mesh, wire diameter: 6/5/6mm, 8/6/8mm.
656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.
868mesh consists of double 8mm horizontal wires together with single 6mm vertical wires.
Specification of Double Loop Wire Fence
| Wire Dia | Mesh Size | Panel Width | Panel Height | Post Height | Post Model | ||
| burying style | base style | ||||||
| 5/4/5mm; 6/5/6mm; 8/6/8mm; |
50*100mm; 50*200mm; 50*50mm; 55*100mm; 55*200mm; 55*55mm |
1.0-2.5m | 1.03m | 1.4m | 1.2m | Square; Peach; Round swallowtail |
|
| 1.23m | 1.6m | 1.4m | |||||
| 1.53m | 2.0m | 1.7m | |||||
| 1.73m | 2.2m | 1.9m | |||||
| 1.83m | 2.3m | 2.0m | |||||
| 2.03m | 2.5m | 2.2m | |||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
Double Wire Metal Mesh technique specifications
Panel size: 2x2.5mt
Mesh size: 50x200mm
Wire diameter: 4.9mm before process
4 folds in V-form 85mm
Treatment: electro and hot dipped galvanized.
Post: square post 60x60 with 1.5mm wall. 2.5mt long.
Caps: plastic
Clamp: metal clamp includes bolts and screws
Post Specfication
1. Square Post: 50x50mm, 60x60mm, 80x80mm, 100x100mm (thickness 1.5mm, 2mm, 2.5mm)
2. Rectangular post: 40x60mm, 80x60mm, 120*60mm (thickness 1.5mm, 2mm, 2.5mm)
3. Peach Post: 50x70mm,60x90mm,70x100mm (thickness 1.5mm, 2mm, 2.5mm)
Production Process of Double Loop Wire Fence
1.) Steel wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2.) Steel wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3.) Steel wire→Welding→Electric galvanized→Powder coated/PVC coated
4.) Steel wire→Electric galvanized→Welding→Powder coated/PVC coated
Features of Double Loop Wire Fence
• Excellent rust & corrosion resistance
• Wide range of height options (up to 6060mm high)
• High visibility and excellent security.
• Rigidity and a long life service
• Not damage easily and require less maintenance
• RAL colours available
Packing of Double Loop Wire Fence
1.) Packing with Plastic Film and metal packing metal belt.
2.) Packing with carton;wooden case;pallet.
3.) According to customers requirement.
Product Inspection of Double Loop Wire Fence
Product Application of Double Loop Wire Fence
1. Public building fence
2. Private place fence, Where visibility is desirable
3.Residential perimeter fence
4. In Parks, Zoos and nature reserves
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
Contact Person: Amanda
Tel: 008618812186661
Fax: 86-318-7615090
