Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color

Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color

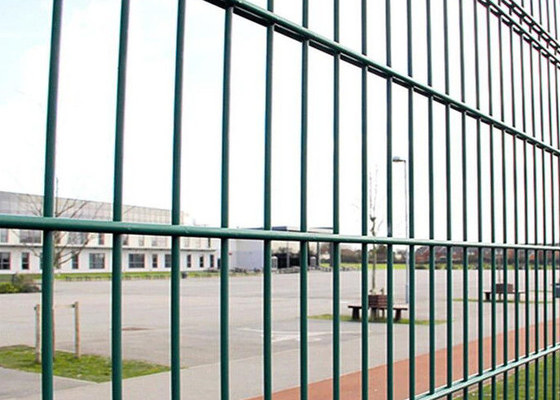

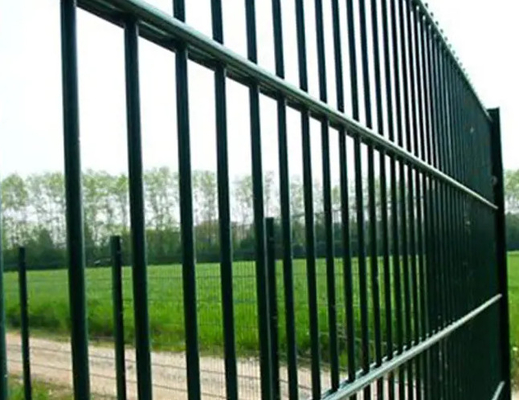

Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color

Large Image :  Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color

Product Details:
Place of Origin: Anping,China
Brand Name: YH
Certification: ISO 9001
Model Number: YH06
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Panel and post on metal pallet or as request
Delivery Time: 5-10days
Payment Terms: T/T
Supply Ability: 1500 Pieces per Week
Detailed Product Description
Surface Treatment: Galvanized/PVC Coated/Paint Feature: Easily Assembled
Material: Low Carbon Steel Wire Wire Diameter: 8/6/8mm, 6/5/6mm, 5/4/5mm
Model: 656 Twin Wire Fence Certification: ISO9001:2015
Width: 0.5-2.5m Height: 1.0-2.5m
PVC Coated Color: Black,white,green,blue Etc Packing: Plastic Film And Metal Pallet
Post: Square Or Post Product Name: Twin Horizontal Wire Fence
High Light:

2d twin mesh fencing

,

868 twin mesh fencing

,

868 twin wire mesh fencing

Low Carbon Steel PVC Coated Twin Wire Mesh Panel 8/6/8 2D Wire Green Color








Product Description of Double Loop Wire Fence



Double wire mesh fence is high quality low-carbon steel wire as materials. It have one vertical wire and two horizontal wires. It is stronger than normal welded wire mesh, wire diameter: 6/5/6mm, 8/6/8mm.

656mesh consists of double 6mm horizontal wires together with single 5mm vertical wires.

868mesh consists of double 8mm horizontal wires together with single 6mm vertical wires.

Double wire fence, also called welded double horizontal wire fence or twin wire fence, is formed by a double horizontal wire, a vertical wire and that is the reason why this kind of wire fence is more stable than common welded mesh fences. It is made from mild steel, carbon steel or stainless steel and the surface treatment is coated by hot dipped galvanization or polyester powder. Because of the stable structure, beauty and landscaping, double wire fences with square or peach posts are popular in parks, industrial sites or residences all around the world.

Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 0

Specification of Double Loop Wire Fence


Wire Dia Mesh Size Panel Width Panel Height Post Height Post Model
burying style base style
5/4/5mm;
6/5/6mm;
8/6/8mm;
50*100mm;
50*200mm;
50*50mm;
55*100mm;
55*200mm;
55*55mm
1.0-2.5m 1.03m 1.4m 1.2m Square;
Peach;
Round
swallowtail
1.23m 1.6m 1.4m
1.53m 2.0m 1.7m
1.73m 2.2m 1.9m
1.83m 2.3m 2.0m
2.03m 2.5m 2.2m
Color RAL6005,RAL9005,RAL9010,other color can make as your interesting



Double Wire Metal Mesh technique specifications


Panel size: 2x2.5mt
Mesh size: 50x200mm
Wire diameter: 4.9mm before process
4 folds in V-form 85mm
Treatment: electro and hot dipped galvanized.
Post: square post 60x60 with 1.5mm wall. 2.5mt long.
Caps: plastic
Clamp: metal clamp includes bolts and screws



Post Specfication


1. Square Post: 50x50mm, 60x60mm, 80x80mm, 100x100mm (thickness 1.5mm, 2mm, 2.5mm)
2. Rectangular post: 40x60mm, 80x60mm, 120*60mm (thickness 1.5mm, 2mm, 2.5mm)
3. Peach Post: 50x70mm,60x90mm,70x100mm (thickness 1.5mm, 2mm, 2.5mm)



Production Process of Double Loop Wire Fence



1.) Steel wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2.) Steel wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3.) Steel wire→Welding→Electric galvanized→Powder coated/PVC coated
4.) Steel wire→Electric galvanized→Welding→Powder coated/PVC coated



Features of Double Loop Wire Fence





  1. • Excellent rust & corrosion resistance
  2. • Wide range of height options (up to 6060mm high)
  3. • High visibility and excellent security.
  4. • Rigidity and a long life service
  5. • Not damage easily and require less maintenance
  6. • RAL colours available
  7. High rigidity and level security.

Packing


1.) Packing with Plastic Film and metal packing metal belt.
2.) Packing with carton;wooden case;pallet.
3.) According to customers requirement.



Application of Double Loop Wire Fence



It is used for fencing most industrial sites, sporting fields, multi-games area, protection of schools and nurseries, Corporate or college campuses, housing projects, healthcare or research facilities, Airports, parking facilities, commercial and industrial properties, pools, amusement parks, tennis courts, public parks and playgrounds, etc.



Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 1



Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 2



Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 3



Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 4



Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 5



Company Profile


1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Low Carbon Steel 2.5m Width Twin Mesh Fencing Pvc Coated 8/6/8 2d Wire Green Color 6
