Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire | Surface Treatment: | Hot Dipped Galvanized/pvc Coated |
|---|---|---|---|
| Coil Weight: | 20-50kg/coil | Feature: | Great Protection |
| Weaving Style: | Normal Twist | Application: | Grass Boundary,railway,highway And So On |
| Wire Diameter: | 2.2mm, 2.5mm, 3.0mm | Packing: | Carton, Woven Bag Or Bare |
| Tolerance: | ±3% | Grade: | Q195/Q235 |
| Certification: | ISO9001:2015 | Brand Name: | Yuanhai |
| MOQ: | 50 Rolls | Payment Term: | T/T |
| High Light: | hot dip galvanized iron barbed wire,3.4mm galvanized iron barbed wire,military protection metal barbed wire |
||
Hot Dip Galvanized 3.4mm Barbed Wire For Farm Fencing / Military Protection
Product Description of Steel Barbed Wire
Barbed wire is a protective net formed by mechanically winding barbed wire around the main wire (strand) and through various weaving techniques.
Use of barbed wire: used in factory area, private villa, building first floor, construction site, bank, prison, banknote printing factory, military aircraft, bungalow, low wall and other places of anti-theft, protection.
Product Specification of Steel Barbed Wire
| Gauge of strand and barb in B.W.G | Barbs spacing 3'' | Barbs spacing 4'' | Barbs spacing 5'' | Barbs spacing 6'' |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.637 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
Features of Steel Barbed Wire
1 . Frightening and stopping to be aggressive perimeter intruders;
2 . Prevent corrosion
3 . High resistance allows greater spacing between the fencing post
4 . Protecting the yard/farm
5 . Prevent the animals
Package of Steel Barbed Wire
It is always packed by 25kg/coil or 50kg/coil.
1) Packed by water proof paper.
2) Packed by woven bag.
3) Packed by carton.
4) Packed by wooden pallet.
5) We can also make the package according to your requests.
Application of Steel Barbed Wire
Galvanized Barbed Wire is widely used for the separation and protection of the boundary of grassland, railway, highway, prison, private field, etc. It can also be used on the top of other types of fences, such as Chain Link Fence, Welded Wire Mesh Fence, Concertina Barbed Wire, etc., to add security in your private property.

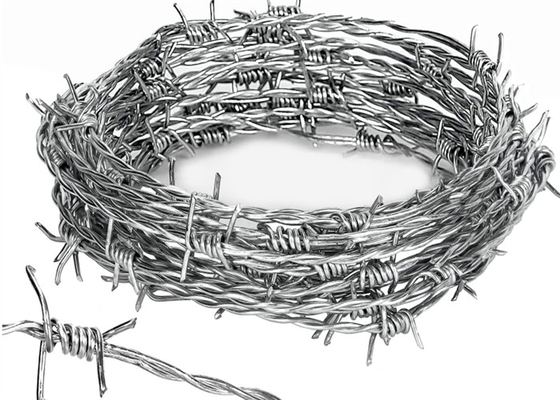

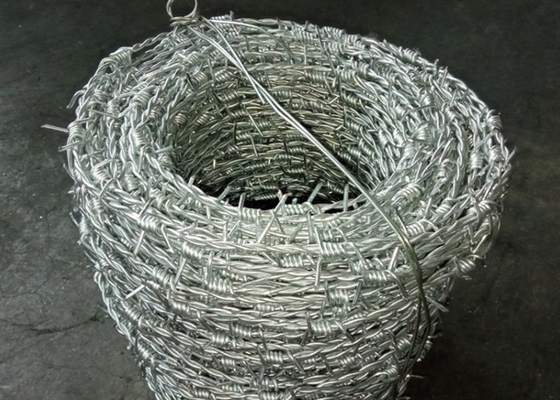

Images of Steel Barbed Wire
Single strand twisted Double strand twisted
Twist Style of Steel Barbed Wire
Production Process of Steel Barbed Wire
Application of Steel Barbed Wire
