Q235 Galvanized Steel Barbed Wire 12*14 Gauge For Field Fencing 50kg / Roll
Product Description of Steel Barbed Wire
Barbed wire is a protective net formed by mechanically winding barbed wire around the main wire (strand) and through various weaving techniques.
Use of barbed wire: used in factory area, private villa, building first floor, construction site, bank, prison, banknote printing factory, military aircraft, bungalow, low wall and other places of anti-theft, protection.
The reason for surface treatment is to strengthen the anti-corrosion strength and prolong the service life.Galvanized wire as the name implies surface treatment is galvanized, can be electric galvanized and hot galvanized;The surface treatment of PVC barbed wire is PVC plastic coated, and the inner barbed wire is black wire, electroplated wire and hot plated wire.
Product Specification of Steel Barbed Wire
| Gauge of strand and barb in B.W.G |
Barbs spacing 3'' |
Barbs spacing 4'' |
Barbs spacing 5'' |
Barbs spacing 6'' |
| 12x12 |
6.0617 |
6.7590 |
7.2700 |
7.637 |
| 12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
| 12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
| 12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
| 13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
| 13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
| 13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
| 14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
| 14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
| 15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
| 15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
Features of Steel Barbed Wire
Good corrosion resistance
Rust and weather resistance
Long service life
High security
Anti-climbing and anti-theft
Wide range of applications
Package of Steel Barbed Wire
It is always packed by 25kg/coil or 50kg/coil.
1) Packed by water proof paper.
2) Packed by woven bag.
3) Packed by carton.
4) Packed by wooden pallet.
5) We can also make the package according to your requests.
Application of Steel Barbed Wire
Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers,government building or other security facilities. Also used for division of railway, highway, agricultural fencing, etc.
It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.

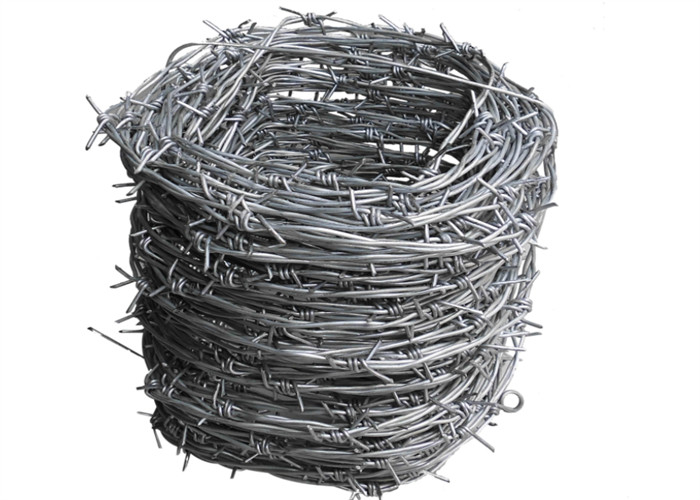

Images of Steel Barbed Wire

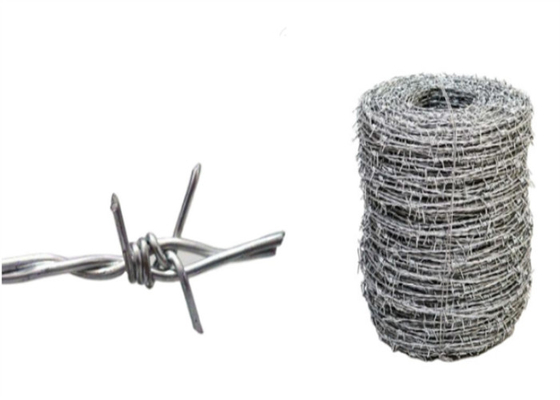

Single strand twisted Double strand twisted
Twist Style
Production Process
Application
