Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire | Surface Treatment: | Hot Dipped Galvanized/pvc Coated |
|---|---|---|---|
| Coil Weight: | 20-50kg/coil | Feature: | Great Protection |
| Weaving Style: | Single/Double Twist | Wire Diameter: | 2.2mm, 2.5mm, 3.0mm |
| Packing: | Carton, Woven Bag Or Bare | Tolerance: | ±3% |
| Grade: | Q195/Q235 | Certification: | ISO9001:2015 |
| Wire: | 12*12,14*14,14*16Gauge | Application: | Grass Boundary,railway,highway And So On |
| Brand Name: | Yuanhai | Sample: | For Free |
| Highlight: | 2.0mm galvanized steel barbed wire,25kg/roll steel barbed wire,field fencing pvc coated barbed wire |
||

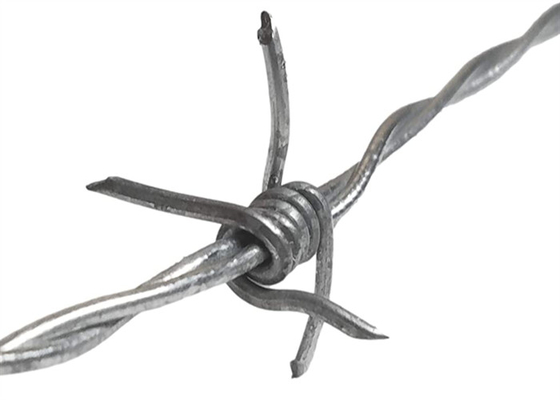

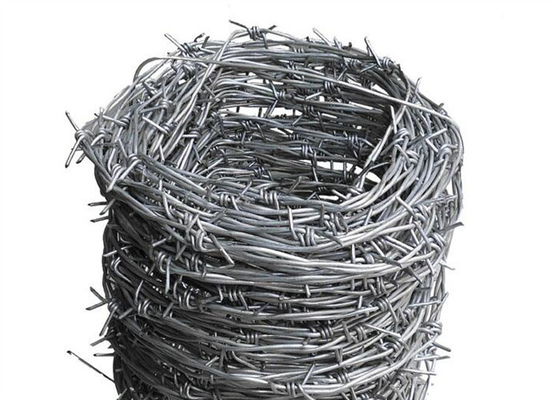

Galvanized / PVC Coated Barbed Wire 2.0mm For Field Fencing 25kg / Roll
Product Description of Steel Barbed Wire
Barbed wire is a protective net formed by mechanically winding barbed wire around the main wire (strand) and through various weaving techniques.
Use of barbed wire: used in factory area, private villa, building first floor, construction site, bank, prison, banknote printing factory, military aircraft, bungalow, low wall and other places of anti-theft, protection.
The reason for surface treatment is to strengthen the anti-corrosion strength and prolong the service life.Galvanized wire as the name implies surface treatment is galvanized, can be electric galvanized and hot galvanized;The surface treatment of PVC barbed wire is PVC plastic coated, and the inner barbed wire is black wire, electroplated wire and hot plated wire.
Production process and technology: Most factories that produce barbed wire directly process galvanized wire or plastic-coated iron wire into barbed wire. This method of twisting the barbed wire will increase the production efficiency, but sometimes it has the disadvantage that the barbed wire is not fixed enough. With the development of technology, some manufacturers have begun to use the process of adding some embossing, so that the surface of the wire is no longer completely smooth, thus greatly improving the effect of stabilizing the barbed distance.
Product Specification of Steel Barbed Wire
| Gauge of strand and barb in B.W.G | Barbs spacing 3'' | Barbs spacing 4'' | Barbs spacing 5'' | Barbs spacing 6'' |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.637 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
Features of Steel Barbed Wire
Good corrosion resistance
Rust and weather resistance
Long service life
High security
Anti-climbing and anti-theft
Wide range of applications
Package of Steel Barbed Wire
It is always packed by 25kg/coil or 50kg/coil.
1) Packed by water proof paper.
2) Packed by woven bag.
3) Packed by carton.
4) Packed by wooden pallet.
5) We can also make the package according to your requests.
Application of Steel Barbed Wire
For theft prevention and protection in factories, private villas, first floors of residential buildings, construction sites, banks, prisons, banknote printing plants, military machines, bungalows, low walls, etc.
Images of Steel Barbed Wire
Single strand twisted Double strand twisted
Twist Style
Production Process
Warehouse
Packaging
Application
