| Material: | Iron Wire, Low Carbon Steel Q195 | Blade Type: | CBT--65;BTO-22;BTO-28;BTO-30; |
|---|---|---|---|
| Surface Treatment: | Galvanized/PVC Coated | Zinc Coated: | Galvanized Wire:8-60g/m2;Blade:40-60g/m2 |
| Razor Thickness: | 0.45±0.05mm | Razor Barb Length: | 22±1mm |
| Razor Barb Spacing: | 34±1mm | Package: | Inner Waterproof Paper With Woven Bag Outside |
| Usage: | Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc | Certification: | ISO9001:2015 |
| Brand Name: | Yuanhai | Place Of Origin: | Hebei Province,China |
| Highlight: | boundary fencing trellis steel razor wire,q195 steel razor wire,3 clips razor barbed wire |
||

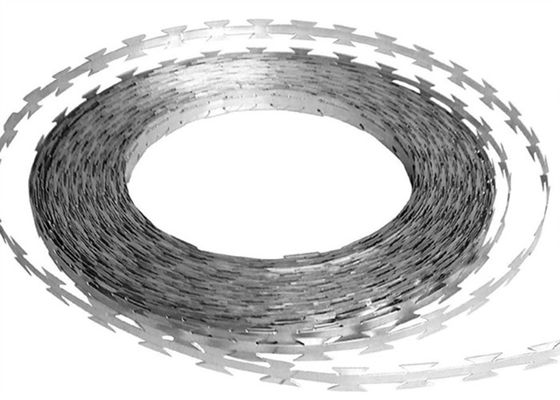

PVC Coated Boundary Fencing Trellis Coil BTO-22 3 Clips Razor Barbed Wire Q195
Product Description of Razor Barbed Wire
The blade barbed wire, also known as the blade barbed wire, is a new type of protective net. The blade barbed wire has excellent characteristics such as beautiful appearance, economical and practical, good anti-blocking effect and convenient construction. At present, the blade barbed wire has been widely used in industrial and mining enterprises, garden apartments, border guard posts, military fields, prisons, detention centers, and governments in many countries. Buildings and ety facilities in other countries.

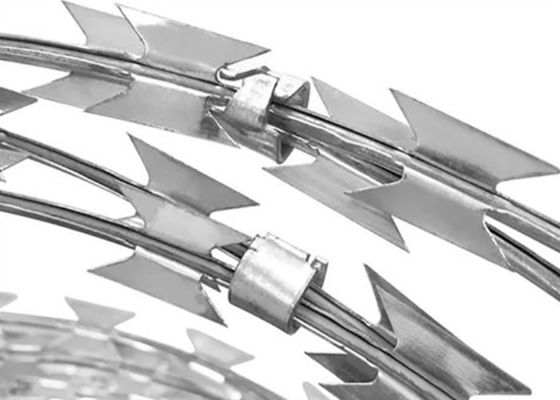

Blade Style of Razor Barbed Wire
Specification
| Reference Number | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
|
Outside Diameter
|
No.of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450 mm
|
33
|
8m
|
CBT-65
|
Single coil
|
|
500 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
700 mm
|
41
|
10m
|
CBT-65
|
Single coil
|
|
960 mm
|
53
|
13m
|
CBT-65
|
Single coil
|
|
500 mm
|
102
|
16m
|
BTO-10.15.22
|
Cross type
|
|
600 mm
|
86
|
14m
|
BTO-10.15.22
|
Cross type
|
|
700 mm
|
72
|
12m
|
BTO-10.15.22
|
Cross type
|
|
800 mm
|
64
|
10m
|
BTO-10.15.22
|
Cross type
|
|
960 mm
|
52
|
9m
|
BTO-10.15.22
|
Cross type
|
Advantages of Razor Barbed Wire
High security
Barbed razor wire with the sharp razor guarantees a high quality whilst retaining high security.
Long life
Razor wire material of stainless steel or hot-galvanized makes sure for long life and low maintenance.
Easy installation
Short sections needed for urgent security can be installed extremely fast and with little equipment, allowing repairs to be carried out without compromising perimeter security.
Packing and Shipping of Razor Barbed Wire
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
Application of Razor Barbed Wire
Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.Also used for division of railway, highway, agricultural fencing, etc.
Razor wire also can be used in conjunction with an existing wall or fence, or even installed as a barrier on its own, to create an effective security perimeter.
Packing & Delivery of Razor Barbed Wire
We use 3 common packages or as customer's request.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
