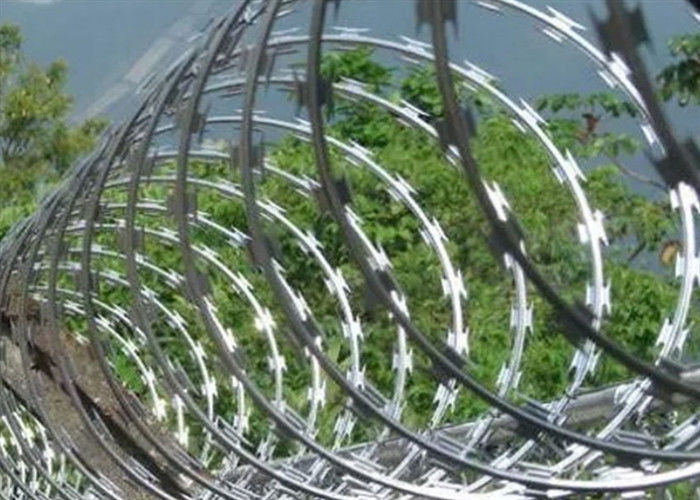

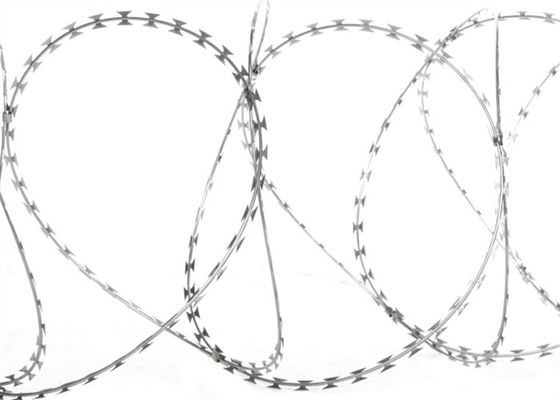

Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal

Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal
Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal

Large Image :  Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal

Product Details:
Place of Origin: AnPing,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH005
Payment & Shipping Terms:
Minimum Order Quantity: 200rolls
Price: Negotiable
Packaging Details: Waterproof paper or as customer's request
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 20000 Roll/Rolls per Month
Detailed Product Description
Material: Iron Wire, Low Carbon Steel Q195 Blade Type: CBT--65;BTO-22;BTO-28;BTO-30;
Surface Treatment: Galvanized/PVC Coated Zinc Coated: Galvanized Wire:8-60g/m2;Blade:40-60g/m2
Razor Thickness: 0.45±0.05mm Razor Barb Length: 22±1mm
Razor Barb Spacing: 34±1mm Usage: Protecting Buliding;Grass Boundary,Railway,Highway,Army Etc
Certification: ISO9001:2015 Place Of Origin: Hebei Province,China
Coil Diameter: 450-900mm Coil Weight: 10kg/Coil
High Light:

900mm coil razor barbed wire

,

hot dip galvanized razor barbed wire

,

military security galvanized razor barbed wire

Hot Dip Galvanized Military Security Razor Barbed Wire 900mm Coil Thermal


Product Description of Razor Barbed Wire


Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized or PVC coated to prevent corrosion.


1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / ElectroGalvanized sheet Hot Dipped Galvanized Wire
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3. Razor Loop Diameter: 600mm
Other Coil diameter for u choose: 300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)

Blade Style
of Razor Barbed Wire

Specification



Reference Number Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1



Outside Diameter
No.of Loops

Standard Length per Coil
Type
Notes
450 mm
33



8m
CBT-65
Single coil
500 mm
41
10m
CBT-65
Single coil
700 mm
41
10m
CBT-65
Single coil
960 mm
53
13m
CBT-65
Single coil
500 mm
102
16m
BTO-10.15.22
Cross type
600 mm
86
14m
BTO-10.15.22
Cross type
700 mm
72
12m
BTO-10.15.22
Cross type
800 mm
64
10m
BTO-10.15.22
Cross type
960 mm
52
9m
BTO-10.15.22
Cross type



Advantages of Razor Barbed Wire



It is almost impossible to climb.

High-strength steel core very difficult to cut off.

Powerful security fence barriers neat appearance.

No secondary use, so he will not be stolen.

Extremely simple to install, needs three to four to install molding.



Meters of per coil Razor Barbed Wire



Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:

1. 600mmx10kg/roll

Cover length is 30cm between each loop, then 10kg can get 8-10m

2. 600mmx10kg/roll

Cover length is 15cm between each loop, then 10kg can get 4-6m


Packing and Shipping of Razor Barbed Wire



1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.

2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27tons


Application of Razor Barbed Wire



Once invented in history, barbed wire has been widely used in military and defense projects; now in the peaceful era, barbed wire is alternately used in machinery, electronics, pharmaceuticals, petrochemicals, glass, food drying, plastics, paper, chemical fiber, picture tubes and other industries.
Barbed wire is also widely used in various aspects of agriculture and life. Recently, barbed wire is used in rock planting. On the rock slope, the new technology of holding wire mesh and spraying powder and planting grass is adopted to achieve slope protection and at the same time play the effect of beautifying the environment.



Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal 0



Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal 1



Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal 2



Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal 3


Packing & Delivery of Razor Barbed Wire




We use 3 common packages or as customer's request.

Hot Dip Galvanized Razor Barbed Wire Military Security 900mm Coil Thermal 4
