Product Details:
Payment & Shipping Terms:
|
| Material: | Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. | Size: | 16mm,25mm,38mm,50mm, 76mm,or Customized |
|---|---|---|---|
| Application: | Industry, Adsorption, Scrubbing, Stripping | Product Name: | Stainless Steel Metal Pall Ring |
| Package: | Jumbo Bag, Carton Box, Wooden Case, Or Customized | Surface Area: | 62 - 346 M2/m3 |
| Bulk Density: | 145 - 345 Kg/m3 | Feature: | Corrosion And Heat Resistance |
| Certification: | ISO9001:2015 | Place Of Origin: | Hebei,Province |
| MOQ: | 1 Cubic | Sample: | For Free |
| Brand Name: | Yuanhai | Price: | Negotiable |
| High Light: | ss 304 random tower packing,conjugate ring metal random packing,25mm metal random packing |
||

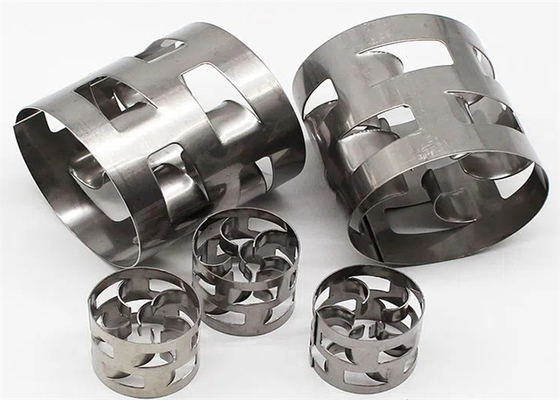

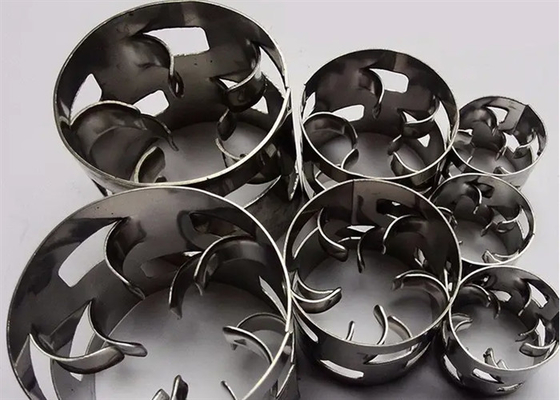

SS 304 Conjugate Ring Metal Random Packing 25*25*0.4mm For Tower Packing
Product Description of Metal Random Packing
The metal pall ring packing was developed in the 1940s by the German company BASF and is made of sheet metal with a total area of about 35% of the total area of the ring wall.Compared with the same specifications of the raschig ring packing, because of pall ring packing opened many hole in the ring wall, makes the tower of gas and liquid can be free from the window by, so packing layer of gas and liquid distribution than raschig ring packings have greatly improved, its separation performance, help pall ring filler is still currently adopted one of the main ring packing.
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Specifications of Metal Random Packing
| Model | Pall Ring | |||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||
|
Sizes (mm) |
Bulk density (kg/m3) |
Number (per m3) |
Surface area (m2/m3) |
Free volume (%) |
| 16×16×0.3 | 345 | 201000 | 346 | 95.5 |
| 25×25×0.3 | 214 | 51000 | 212 | 96.2 |
| 38×38×0.4 | 193 | 15000 | 145 | 96.7 |
| 50×50×0.5 | 182 | 6500 | 106 | 97.5 |
| 76×76×0.6 | 142 | 1830 | 69 | 97.4 |
| 89×89×0.7 | 145 | 1160 | 62 | 97.1 |
Features of Metal Random Packing
Low pressure drop, which leads to reduce energy consumption largely;
Large flexibility, and scale effect is not obvious;
High capacity, small specific gravity, high mass transfer efficiency and so on;
Customized for each type of packing and requirement;
Short delivery time.
Application of Metal Random Packing
It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.
