Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel

Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel
Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel

Large Image :  Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Pall Ring
Surface Area: 62 - 346 M2/m3 Bulk Density: 145 - 345 Kg/m3
Feature: Corrosion And Heat Resistance Certification: ISO9001:2015
Place Of Origin: Hebei,Province Brand Name: Yuanhai
Price: Negotiable Packing: Wooden Box
Model Number: YH-022
High Light:

metal random packing 50mm

,

gas liquid separation metal random packing

,

50mm metal raschig ring

Metal Rachig / Pall Packing For Gas-Liquid Separation 50mm Stainless Steel





Product Description of Metal Random Packing

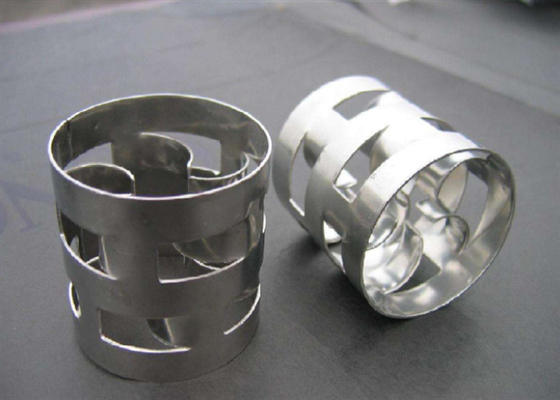

Metal Pall Ring is one popular type of column random packing. Compared with Raschig Ring with the same material, it has high flux, high efficiency and low pressure drop. Also Metal Pall Rings has less resistance, higher flux, higher efficiency, better packing strength and rigidity. Metal Pall Ring is the most widely used random packing nowadays.



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai



Specifications of Metal Random Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



Features of Metal Random Packing



Metal Pall Ring is made of material like carbon steel, stainless steel or Alumina alloy, etc. The product has

features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation

efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or caokable systems, so it is widely used in packing towers in petrochemical industry , chemical fertilizer industry and environmental protection, etc.



Application of Metal Random Packing



It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.

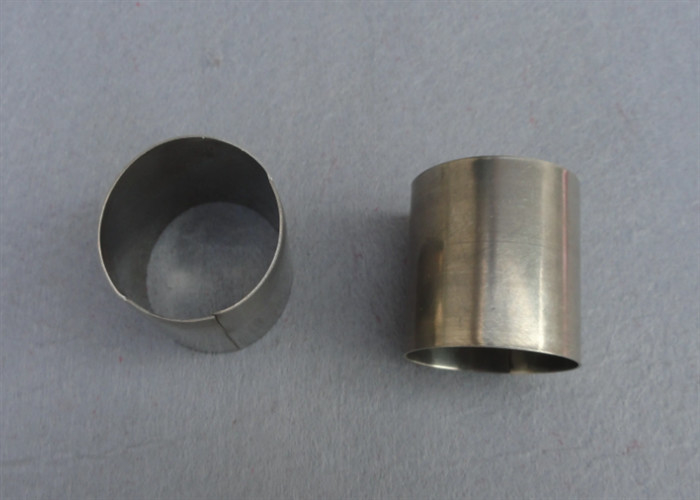

Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel 0



Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel 1



Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel 2



Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel 3







Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel 4



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Rachig / Pall Metal Random Packing Gas Liquid Separation 50mm Stainless Steel 5
