38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing

38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing
38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing 38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing

Large Image :  38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Pall Ring
Surface Area: 62 - 346 M2/m3 Bulk Density: 145 - 345 Kg/m3
Feature: Corrosion And Heat Resistance Certification: ISO9001:2015
Place Of Origin: Hebei,Province Brand Name: Yuanhai
Sample: For Free Model No,: YH-023
High Light:

38mm metal random packing

,

50mm raschig rings packing

,

gas scrubbing metal random packing

Stainless Steel Metallic 38mm 50mm Raschig / Pall Ring For Gas Scrubbing​





Product Description of Metal Random Packing

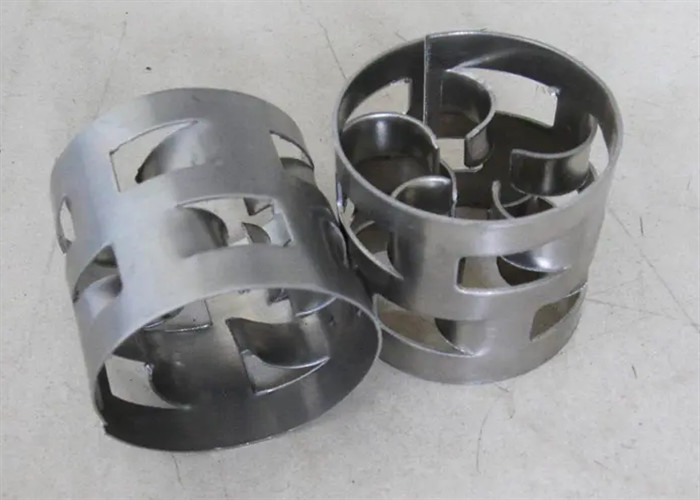

Pall Ring is a kind of improvement of metal saddle ring random packing. It was developed in South China Science & Engineering University. It absorbs the characteristics of saddle-shape packing and ring-shape packing. It seems that we cut the cascade ring along the longitudinal axis, and then moving half of it down and opposite to form the whole conjugate ring. Its structure is symmetrical, it will not form overlapping phenomenon in the tower, and can be evenly arranged in the tower. So it can make the liquid evenly distributed on the surface of the packing, and obtain good mass transfer effect.



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai



Specifications of Metal Random Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



Features of Metal Random Packing



small flow resistance, uniform liquid distribution, high mass transfer efficiency and large gas flux



Application of Metal Random Packing



It is widely used in desulphurization and decarburization system, decompressed plant such as distillation, gas absorption, desorption system, vacuum or pressure operation ,scrubbing tower, cooling tower etc. For example, the metal conjugate ring is used in the solvent oil tower of Eucalyptus oil fractionation unit, naphthenic acid recovery unit and platinum reforming unit, which improves the economic benefit of the unit and is praised by the customer.

38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing 0



38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing 1



38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing 2



38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing 3







38mm 50mm Metal Random Packing Raschig / Pall Ring For Gas Scrubbing 4



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
