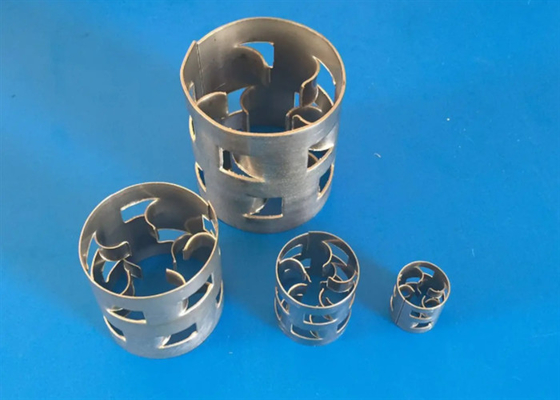

304L Stainless Steel Metallic Pall Ring For Absorption Tower 16*16*0.3mm
Product Description of Metal Random Packing
It is a kind of improvement of metal saddle ring random packing. It was developed in South China Science & Engineering University. It absorbs the characteristics of saddle-shape packing and ring-shape packing. It seems that we cut the cascade ring along the longitudinal axis, and then moving half of it down and opposite to form the whole conjugate ring. Its structure is symmetrical, it will not form overlapping phenomenon in the tower, and can be evenly arranged in the tower. So it can make the liquid evenly distributed on the surface of the packing, and obtain good mass transfer effect.
| Product Name |
Stainless Steel Metal Pall Ring |
| Material |
metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area |
62 - 346 m2/m3 |
| Bulk Density |
145 - 345 kg/m3 |
| Feature |
Corrosion and Heat Resistance |
| Size |
16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification |
ISO9001 |
| Place of Origin |
Hebei Province,China |
| Brand Name |
Yuanhai |
Specifications of Metal Random Packing
| Model |
Pall Ring |
| Material |
Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. |
|
Sizes
(mm)
|
Bulk density
(kg/m3)
|
Number
(per m3)
|
Surface area
(m2/m3)
|
Free volume
(%)
|
| 16×16×0.3 |
345 |
201000 |
346 |
95.5 |
| 25×25×0.3 |
214 |
51000 |
212 |
96.2 |
| 38×38×0.4 |
193 |
15000 |
145 |
96.7 |
| 50×50×0.5 |
182 |
6500 |
106 |
97.5 |
| 76×76×0.6 |
142 |
1830 |
69 |
97.4 |
| 89×89×0.7 |
145 |
1160 |
62 |
97.1 |
Features of Metal Random Packing
1.A versatile packing used in distillation, absorption and other operations.
2.Used in both deep vacuum and high pressure towers.
3.Chemxin metal pall ring is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Application of Metal Random Packing
It is widely used in desulphurization and decarburization system, decompressed plant such as distillation, gas absorption, desorption system, vacuum or pressure operation ,scrubbing tower, cooling tower etc. For example, the metal conjugate ring is used in the solvent oil tower of Eucalyptus oil fractionation unit, naphthenic acid recovery unit and platinum reforming unit, which improves the economic benefit of the unit and is praised by the customer.
