Scrubber / Column Random Tower Packing Ss 304 Material Oem

Scrubber / Column Random Tower Packing Ss 304 Material Oem
Scrubber / Column Random Tower Packing Ss 304 Material Oem Scrubber / Column Random Tower Packing Ss 304 Material Oem

Large Image :  Scrubber / Column Random Tower Packing Ss 304 Material Oem

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Product Name: Stainless Steel Metal Pall Ring Package: Wooden Case, Or Customized
Surface Area: 62 - 346 M2/m3 Bulk Density: 145 - 345 Kg/m3
Feature: Corrosion And Heat Resistance Certification: ISO9001:2015
Place Of Origin: Hebei,Province MOQ: 1 Cubic
Application: Scrubber Tower Packing Brand Name: Yuanhai
High Light:

scrubber random tower packing

,

ss 304 material random tower packing

,

oem column tower metal random packing

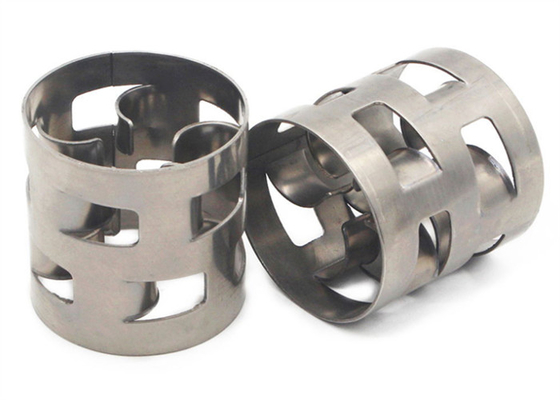

YuanHai Brand Column Tower Packing SS 304 Material For Scrubber Tower OEM





Product Description of Metal Random Packing



Pall Rings are among the most commonly used tower packing materials forapplications involving gas and liquid separation.Because of their ability to withstandcorrosive environments, they’re a mainstay in chemical process towers.
Pall rings are widely known as an innovation coming from Raschig Ring that can be used in various applications, mainly involves gas and liquid transfers. Its walls is intentionally designed to be open geometrically to enable lower pressure drop with greater capacity than on Raschig ring design which is just a standard cylindrical ring.
Plastic Pall rings are widely used in Absorption, scrubbing, and stripping services, Versatile alternative to metal Pall rings,
all kind of separation, constant decompress tower plants, compounding ammonia plant, decarbonization plant, separation of ethylbenzene, seperation of isooctane/ methylbenzene.
Pall ring most suited in low pressure drop, high capacity applications, lpw mass-transfer unit height ,high flooding point uniform gas-liquid contact ,small specific gravity,high mass transfer efficiency and so on .



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai

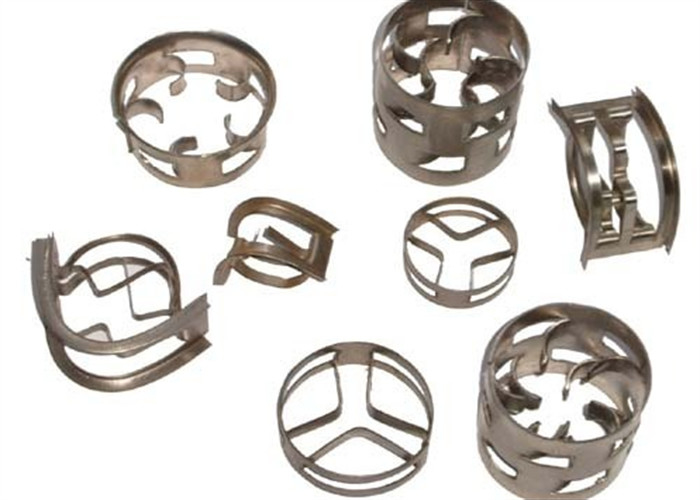

Specifications of Metal Random Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



Features of Metal Random Packing



Good Capacity and Low Pressure Drop
* Higher capacity and lower pressure drop than ceramic packing.
* Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
Higher Liquid Hold-up and Residence Time
* Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
Versatile Standard Packing
* Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
High Mechanical Strength
* Ring and spoke construction provides high mechanical strength, which allows use in deep beds.
Material: polypropylene, strengthens polypropylene, strengthen nylon6, strengthen PBT



Application of Metal Random Packing



It can be applied to various of device of isolation, absorption,deadsorption,common decompression such as Toluene
separation ,ethylbenzene separation, isooctane separation and desulfurization System etc.


Scrubber / Column Random Tower Packing Ss 304 Material Oem 0



Scrubber / Column Random Tower Packing Ss 304 Material Oem 1



Scrubber / Column Random Tower Packing Ss 304 Material Oem 2



Scrubber / Column Random Tower Packing Ss 304 Material Oem 3



Scrubber / Column Random Tower Packing Ss 304 Material Oem 4



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
