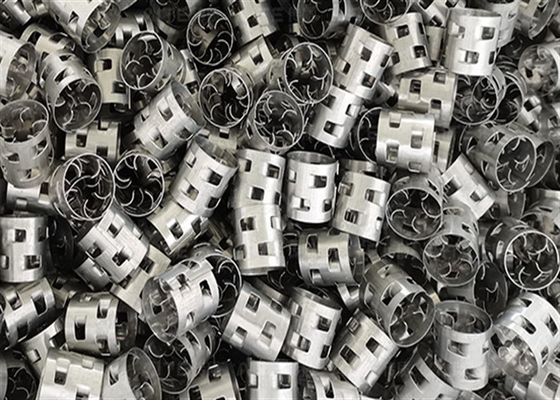

Stainless Steel 304 Metal Pall Ring Packing For Distribution Of Liquid

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Stainless Steel 304 Metal Pall Ring Packing For Distribution Of Liquid

Stainless Steel 304 Metal Pall Ring Packing For Distribution Of Liquid
Stainless Steel 304 Metal Pall Ring Packing For Distribution Of Liquid Stainless Steel 304 Metal Pall Ring Packing For Distribution Of Liquid

Large Image :  Stainless Steel 304 Metal Pall Ring Packing For Distribution Of Liquid

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Pall Ring
Package: Jumbo Bag Surface Area: 62 - 346 M2/m3
Bulk Density: 145 - 345 Kg/m3 Feature: Corrosion And Heat Resistance
Certification: ISO9001:2015 Place Of Origin: Hebei,Province
MOQ: 1 Cubic Sample: For Free
Length: 39mm To 44mm Shape: Cylindrical With Punched Holes On Its Walls
High Light:

distribution liquid metal pall ring packing

,

stainless 304 metal pall ring packing

,

stainless steel 304 metal random packing

Stainless Steel 304 Pall Ring Mrtal Random Packing For Distribution of Liquid





Product Description of Metal Random Packing



Pall rings packing shows its interior and exterior surface contact which is beneficial to resist plugging, nesting, and fouling all along in with the distribution of liquid and gas. Pall rings function with versatility, high resistance to fouling, high temperature, and can be easily soaked.

With complete assurance, this pall ring packing is of high mechanical strength making it sturdy in accordance to the pall ring material capacity. Breakage is of minimal occurrence which makes the pall ring fits best on deeper beds.

Pall ring manufacturers ensure a better distribution of liquid or gas along with a good mass transfer efficiency. Equipped with both expertise and experience, this pall ring has been innovated to meet every consumer requirements.



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai



Specifications of Metal Random Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



The Size:Pall ring sizes are commonly available in: 16mm, 25mm, 38mm, 50mm, 75mm.

The Color:Its appears mostly in black or white.

The Length:It ranges from 39mm to 44mm long.

The Shape:All appears cylindrical with punched holes on its walls.

The Material:Pall rings are available in various materials such as: stainless steel, plastic, metal, polypropylene, ceramic.

Features of Metal Random Packing



Pall ring has a capacity versus pressure drop

It has a high loading and low pressure drop

It has a good distribution on either gas or liquid

Its mass transfer efficiency is high

It is versatile

When it comes to fouling, it has high resistance

It provides lesser probability of breakage

It is recommended for deeper beds



Application of Metal Random Packing



1). Used in Absorption, scrubbing, and stripping services, such as CO2 and H2S selective absorption, air pollution control scrubbers.

2). Heat transfer

3). Liquid-liquid extraction

4). Light ends fractionators
