| Material: | Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. | Size: | 16mm,25mm,38mm,50mm, 76mm,or Customized |
|---|---|---|---|
| Application: | Industry, Adsorption, Scrubbing, Stripping | Product Name: | Stainless Steel Metal Pall Ring |
| Package: | Jumbo Bag | Surface Area: | 62 - 346 M2/m3 |
| Bulk Density: | 145 - 345 Kg/m3 | Feature: | Corrosion And Heat Resistance |
| Certification: | ISO9001:2015 | MOQ: | 1 Cubic |
| Length: | 39mm To 44mm | Shape: | Cylindrical With Punched Holes On Its Walls |
| High Light: | ss 316 metal random packing,mass transfer metal random packing,ss 316 packing pall ring |
||

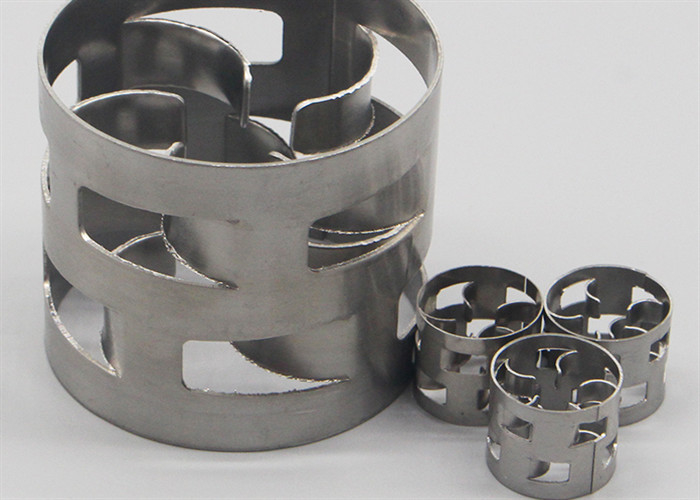

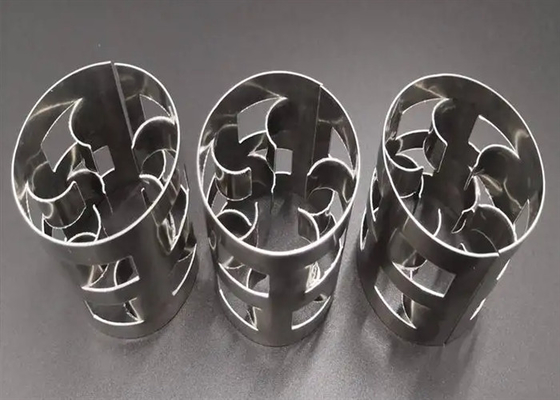

SS 316 Chemical Metal Pall / Random Ring Packing For Mass Transfer
Product Description of Metal Random Packing
The metal pall ring is one of Yuanhai's metal random packing products. For over fifty years, random packings are effectively used to improve a tower’s performance. The pall ring is considered world’s most common random packing type.
The design of the pall ring is an improvement of the raschig ring.The cylindrical dimensions are equal, however the metal pall ring has two rows of punched and formed fingers facilitating vapor flow. This adjustment provides a significant performance increase, resulting in an improvement of the capacity and efficiency. In addition, this adjusted design leads to reduction of the pressure drop through the column.
The metal pall rings are mechanically robust and provided by us in various sizes and in different types of steel. We also provide ceramic and plastic pall rings. Contact our sales department for more information or to order directly.
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Specifications of Metal Random Packing
| Model | Pall Ring | |||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||
|
Sizes (mm) |
Bulk density (kg/m3) |
Number (per m3) |
Surface area (m2/m3) |
Free volume (%) |
| 16×16×0.3 | 345 | 201000 | 346 | 95.5 |
| 25×25×0.3 | 214 | 51000 | 212 | 96.2 |
| 38×38×0.4 | 193 | 15000 | 145 | 96.7 |
| 50×50×0.5 | 182 | 6500 | 106 | 97.5 |
| 76×76×0.6 | 142 | 1830 | 69 | 97.4 |
| 89×89×0.7 | 145 | 1160 | 62 | 97.1 |
Pall ring has a capacity versus pressure drop
It has a high loading and low pressure drop
It has a good distribution on either gas or liquid
Its mass transfer efficiency is high
It is versatile
When it comes to fouling, it has high resistance
It provides lesser probability of breakage
It is recommended for deeper beds
Features of Metal Random Packing
Application of Metal Random Packing
