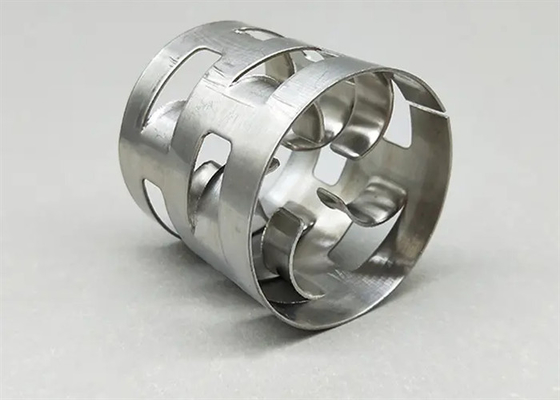

Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm

Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm
Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm

Large Image :  Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Product Name: Stainless Steel Metal Pall Ring Package: Wooden Case, Or Customized
Surface Area: 62 - 346 M2/m3 Bulk Density: 145 - 345 Kg/m3
Feature: Corrosion And Heat Resistance Certification: ISO9001:2015
Place Of Origin: Hebei,Province MOQ: 1 Cubic
Application: Scrubber Tower Packing Brand Name: Yuanhai
Thickness: 0.3-0.8mm Chemicial Composation: N/A
Void Volume (m3/m3): 0. 940 Dry Packing Factor (m-1): 268
High Light:

anticorrosion metal random packing

,

25mm metal random packing

,

25mm packing pall ring

Stainless Steel Metal Random / Pall Ring Metal Inner Arc Ring 25*25*0.4mm





Product Description of Metal Random Packing



It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.


It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokablesystems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmentalprotection, etc..

Material available:
Carbon steel, stainless steel including 304, 304L, 410,316, 316L

Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance

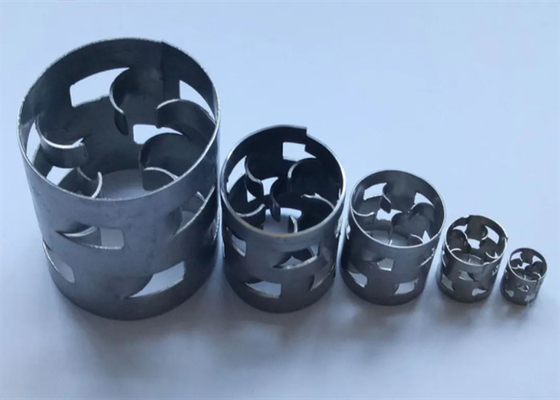

Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai



Specifications of Metal Random Packing



Size

   (mm)

Bulk density

 (kg/m3)

Number

(per m3)

Surface area

 (m2/m3)

Free volume

 (%)

16*16*0.3

360

201000

346

95.5

25*25*0.4

302

51000

212

96.2

25*25*0.5

400

51000

216

95

25*25*0.6

461

51000

219

94.2

38*38*0.4

218

15000

143

97.2

38*38*0.5

262

15180

145

96.7

38*38*0.6

328

15000

146

95.9

50*50*0.5

194

6500

106

97.5

50*50*0.7

285

6500

108

96.4

50*50*0.9

365

6500

109

95.4

76*76*0.8

205

1830

69

97.4

90*90*1.0

229

1160

62

97.1



The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.



Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.



Features of Metal Random Packing

  • Popular random packing.
  • High flux.
  • High efficiency.
  • High load elasticity.
  • Excellent stain resistance.
  • Low pressure drop.

Package

  • Covered with moisture-proof paper.
  • Packed in dry boxes which have enough strength to withstand impact.

Application of Metal Random Packing

  • Metal pall rings are widely used in kinds of separation, absorption, desorption and pressure reducing devices.
  • Metal pall rings are commonly applied to all sorts of decarbonization and system of synthetic ammonia.

Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 0



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 1



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 2



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 3



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 4



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 5



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 6



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Stainless Steel Anticorrosion Metal Random Packing Pall Ring Inner Arc Ring 25*25*0.4mm 7

Size

     (mm)

Bulk density

 (kg/m3)

Number

(per m3)

Surface area

 (m2/m3)

Free volume

 (%)

16*16*0.3

360

201000

346

95.5

25*25*0.4

302

51000

212

96.2

25*25*0.5

400

51000

216

95

25*25*0.6

461

51000

219

94.2

38*38*0.4

218

15000

143

97.2

38*38*0.5

262

15180

145

96.7

38*38*0.6

328

15000

146

95.9

50*50*0.5

194

6500

106

97.5

50*50*0.7

285

6500

108

96.4

50*50*0.9

365

6500

109

95.4

76*76*0.8

205

1830

69

97.4

90*90*1.0

229

1160

62

97.1



The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.



Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
