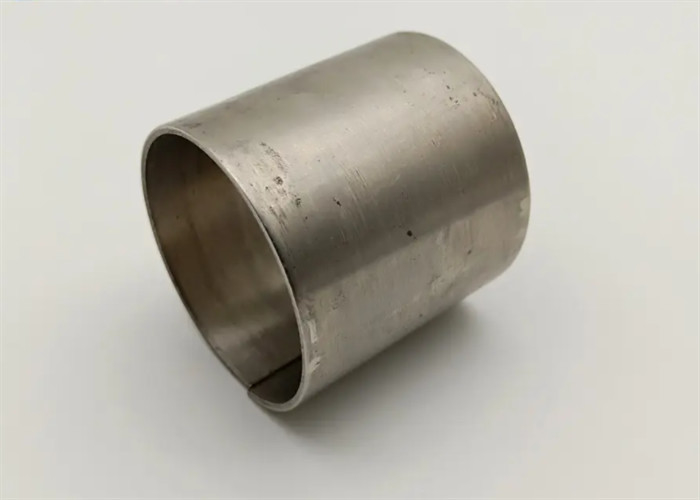

Metal Rasching Ring With Hollow Cylindrical Shape For Drying Towers 16mm
Product Description of Metal Pall Packing
Pall rings are one of the most basic, widely used types of tower packing. They are versatile, affordable options for distillation, absorption and stripping operations — including high volume and high-temperature processes.
As a leading supplier of tower packing internals, MACH Engineering manufactures plastic, ceramic and metal pall rings for industrial use. As a leading pall ring manufacturer, our products combine excellent quality with an affordable price point — and we stand behind everything with some of the most knowledgeable customer service in the industry.
| Product Name |
Stainless Steel Metal Pall Ring |
| Material |
metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area |
62 - 346 m2/m3 |
| Bulk Density |
145 - 345 kg/m3 |
| Feature |
Corrosion and Heat Resistance |
| Size |
16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification |
ISO9001 |
| Place of Origin |
Hebei Province,China |
| Brand Name |
Yuanhai |
Specifications of Metal Pall Packing
Specification - metal rasching ring
| Model |
Nominal diameter (mm) |
Diameter × Height × Thickness
D × H × δ (mm) |
Bulk number (m-3) |
Bulk density (kg/m3) |
Specific surface area (m2/m3) |
Void volume (m3/m3) |
Dry packing factor (m-1) |
| MRRS-01 |
DN 16 |
16 × 16 × 0.5 |
248000 |
660 |
350 |
0. 90 |
460 |
| MRRS-02 |
DN 25 |
25 × 25 × 0.8 |
55000 |
610 |
220 |
0.93 |
290 |
| MRRS-03 |
DN 50 |
50 × 50 × 1.0 |
9400 |
430 |
110 |
0. 95 |
130 |
| MRRS-04 |
DN 80 |
80 × 80 × 1.0 |
1820 |
80 |
60 |
0. 96 |
80 |
| Materials: SS 304, SS 316, SS 316L, carbon steel. |
Overview:
- Pall rings are conventional shaped packing that
offer a low price compared to other modern
packing at a cost of performance
- Its geometry minimizes the number of contours and
crevices that cause liquid hold up and
entrainment, and thus enable high liquid and
gas transfer rates
- The interior and exterior surface of the pall ring
provide effective distribution of liquids and
gases.
Features of Metal Pall Packing
Application of Metal Pall Packing
Metal Pall ring for Vacuum distillation , Heat transfer as below shows:
Wet scrubbers for gas absorption
Cooling towers for heat transfer
Mist eliminators for liquid particle removal
Gas absorption columns
Gas strippers
Air washers
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
