Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm

Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm
Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm

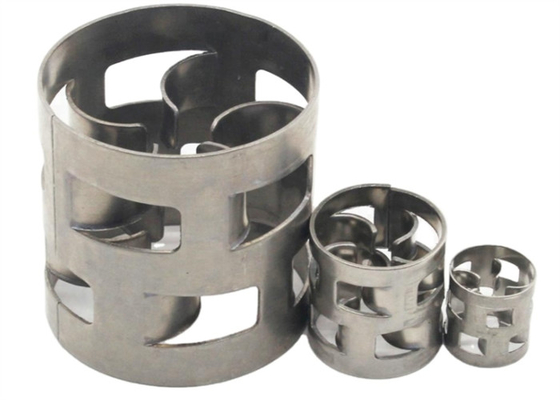

Large Image :  Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Cubic Meter
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Pall Ring
Package: Jumbo Bag Surface Area: 62 - 346 M2/m3
Bulk Density: 145 - 345 Kg/m3 Feature: Corrosion And Heat Resistance
Length: 39mm To 44mm Shape: Cylindrical With Punched Holes On Its Walls
Production Period: 40HQ/15 Days Payment Terms: T/T; L/C; PayPal; West Union
Performance: Heat-resistant Warranty: Lifetime Consultation
High Light:

ss 304 metal random packing

,

metal random packing pall ring

,

extraction pall ring packing

Carbon Steel Pall Ring Packing 38*38*0.5mm For Absorption Columns





Product Description of Metal Pall Packing



Metal pall ring is one of the most common and well known packing, Metal Pall Ring is an industry standard design media developed from the Raschig Rings and is used widely in all variety of applications. By minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the Metal pall ring geometry enables high gas and liquid transfer rates. The opened cylinder walls and inward bent protrusions of the Metal pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings. This open ring design also maintains an even distribution and resists wall-channeling tendencies. The interior and exterior contacting surfaces of the Metal pall ring provide for an effective distribution of liquids and gasses and resist plugging, fouling and nesting. Pall rings are available in a wide range of materials.



Product Name Stainless Steel Metal Pall Ring
Material metal, stainless steel, carbon steel, Aluminum alloy etc.
Surface Area 62 - 346 m2/m3
Bulk Density 145 - 345 kg/m3
Feature Corrosion and Heat Resistance
Size 16mm,25mm,38mm,50mm, 76mm,or customized
Certification ISO9001
Place of Origin Hebei Province,China
Brand Name Yuanhai



Specifications of Metal Pall Packing



Model Pall Ring
Material Carbon Steel; SS 304, 304L, 410, 316, 316L, etc.

Sizes

(mm)

Bulk density

(kg/m3)

Number

(per m3)

Surface area

(m2/m3)

Free volume

(%)

16×16×0.3 345 201000 346 95.5
25×25×0.3 214 51000 212 96.2
38×38×0.4 193 15000 145 96.7
50×50×0.5 182 6500 106 97.5
76×76×0.6 142 1830 69 97.4
89×89×0.7 145 1160 62 97.1



Features of Metal Pall Packing

  • Popular random packing.
  • High flux.
  • High efficiency.
  • High load elasticity.
  • Excellent stain resistance.
  • Low pressure drop.

Application of Metal Pall Packing

  • Steam stripping
  • H2S, NH3 & SO2 absorption and stripping
  • Gas washing
  • Degassing
  • Air pollution control scrubbers

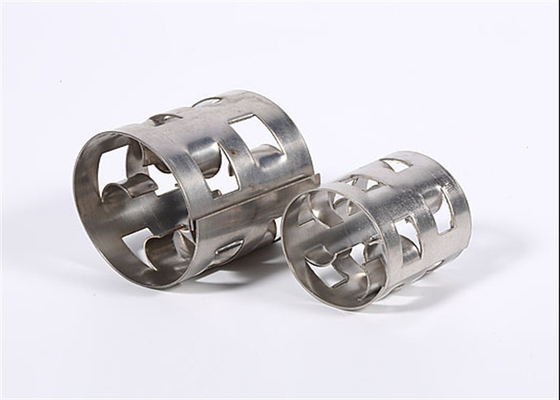

Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 0



Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 1



Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 2



Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 3



Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 4



Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 5



Ss 304 Metal Random Packing Pall Ring For Extraction Yh-50 50*50*0.8mm 6
