4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb

4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb
4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb 4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb

Large Image :  4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-ACF
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels
Supply Ability: 500PCS PER MONTH
Detailed Product Description
Material: Low Carbon Steel Wire Hole Size: 3"x0.5" / 76.2*12.7mm
Wire Diameter: 4.0mm Feature: Anti-corrosion/Anti-climb/Anti-cut
Post Size: 60x60mm, 60x80mm, 80x80mm Surface Treatment: Galvanized,powder Coated,PVC Coated
Usage: Garden Fence, Highway Fence, Type: Fencing, Trellis & Gates
Fence Topping: Razor Wire, Barbed Wire, Anti Climb Spikes Fence Height: 3.0m, 2.4m, 2.2m, 2.0m Or Customized
Certification: ISO9001:2015 Brand Name: Yuanhai
High Light:

pvc coated prison mesh fence

,

358 prison mesh fence anti climb

,

358 security fencing hot dip galvanized

PVC Coated / Hot Dip Galvanized 358 Anti Climb Security Prison Fence





Description of 358 Security Fencing



Anti climb fence is a much more secure barrier than the common 358 mesh fence. It has the same wire thickness as 358 fence, but the size of mesh opening pattern is smaller. The intruder can not climb up with fingers and toes, and conventional bolts or wire-cutters have no way to cut the anti climb fencing.

Anti-climbing fence has more rigid double vertical wire welding structure, which makes it difficult to cross. Anti-climb rigid mesh fencing has the advantages of anti-climbing, anti-cutting, anti-corrosion, and good viewing visibility. Combined with the fence top of razor barbed wire, security fence spikes, or tooth spikes, it becomes a ideal high-security fencing for high-end applications, such as, prisons, military and power facilities.

The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm, it is very popular in US Market and Malaysia Market. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.



  • Material: Low Carbon steel wire Q195
  • Type:Welded mesh
  • MOQ:10 sets
  • Surface Treatment: Electric galvanized,hot dipped galvanized, spray, PVE coated, PE coated
  • Technique: Welded
  • Usage: Used for garden,road,playground,park etc
  • Packaging Details:
    Packed with plastic film then on the pallets and then in wooden box



Specifications of 358 Security Fencing



                                          Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')
3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm
Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.



358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11



Features of 358 Security Fencing

  • Good viewing visibility, it is a type of high security clear view fencing.
  • Welded well at each intersection.
  • Intrusion resistant, with extremely strong double vertical wire design.
  • Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
  • Corrosion resistant with zinc aluminum alloy and PVC powder coating.
  • Surface finish after welding, every weld-point are protected well.
  • High strength with fully integrated with posts and anti-tamper fixings.
  • Fence security toppings are optional.
  • Easy for installation and free maintenance.
  • 5 year warranty.

Surface treatment of 358 Security Fencing


1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

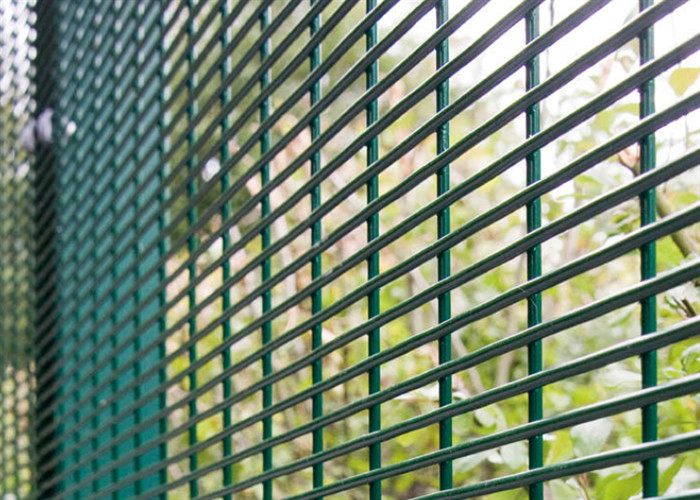

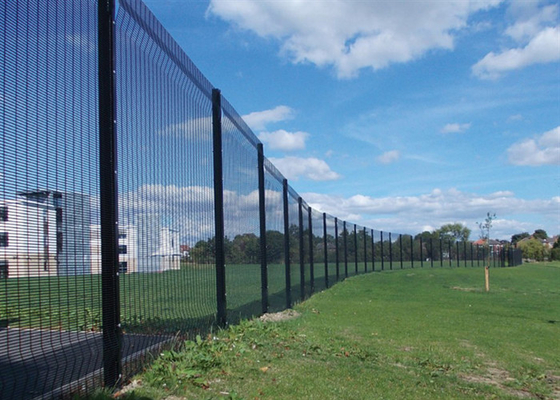

Display of 358 Security Fencing



4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb 0



Packing of 358 Security Fencing



Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

Fence Post Packing

1. Plastic cap cover onto the post.
2. Plastic film + metal pallet for fence post.
Accessories Packing:
1. Stainless steel nuts and screws install with clips.
2. 5 sets clips load into one plastic bag.
3. 12 bags into one carton box.


4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb 1



4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb 2



4.0mm Prison Mesh Fence Pvc Coated / Hot Dip Galvanized Anti Climb 3

FAQ


Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight

Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.

Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.

Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
